Запчасти Case IH MAGNUM 370 (21.507.AG[07]) - TRANSMISSION - CVT - SHAFT ASSY., RANGE 3 & 4 (21) - TRANSMISSION

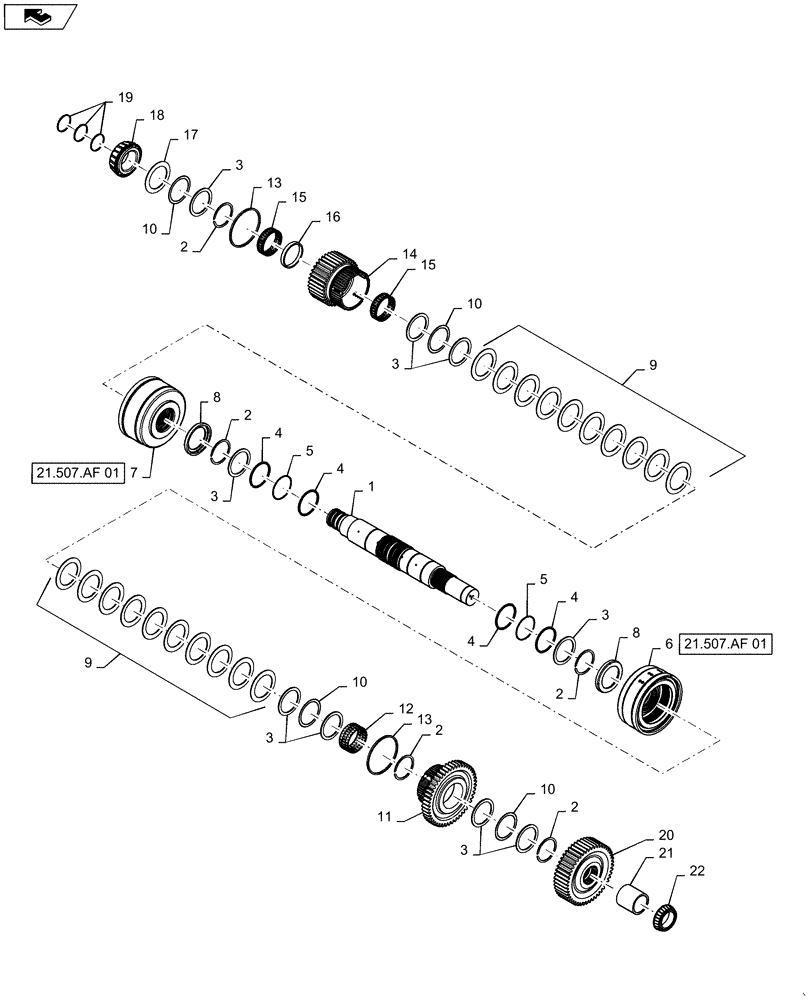

Схема запчастей Case IH MAGNUM 370 - (21.507.AG[07]) - TRANSMISSION - CVT - SHAFT ASSY., RANGE 3 & 4 (21) - TRANSMISSION
2
3
17
11
9
3
4
home
22
19
21.507.af 01
21
21.507.af 01
7
3
15
12
10
10
9
2
20
13
18
3
8
13
8
4
1
5
2
10
4
3
14
10
5
6
3
2
2
16
4
15

Артикул

Название

Примечание

Количество

1

47416557

SHAFT

Range 3 & 4 w/Plugs

1шт.

2

101-11300

SNAP RING,#300, 2.830, Ext

5шт.

3

87373394

THRUST WASHER,76.44mm ID x 94.74mm OD x 3.16mm Thk

9шт.

4

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

4шт.

5

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

Back-up - 234

2шт.

6

NSS

NOT SOLD SEPARAT

Clutch Assy., 5 Plate - Reference Figure 21.507.AF(01)

1шт.

7

NSS

NOT SOLD SEPARAT

Clutch Assy., 7 Plate - Reference Figure 21.507.AF(01)

1шт.

8

87476381

SLEEVE,76.45mm ID x 107mm OD x 12.5mm L

Clutch Lube

2шт.

9

87624381

BELLEVILLE SPRING

Piston Return

18шт.

10

A75158

THRUST BEARING,76.25mm ID x 95mm OD x 1.98mm W

4шт.

11

87719462

GEAR

Range 4 Driven

1шт.

12

1-2273

ROLLER BEARING,3" ID x 1.5"

1шт.

13

87373511

SEAL

Clutch Hub

2шт.

14

84211211

DRIVEN GEAR

Range 3 Driven

1шт.

15

70639547

ROLLER BEARING,76.19mm ID x 85.77mm OD x 25.4mm W

2шт.

16

87373500

SPACER,77mm ID x 85mm OD x 11.3mm L

Bearing

1шт.

17

87388828

THRUST WASHER,67mm ID x 106mm OD x 3mm Thk

1шт.

18

ST2110

ROLLER BEARING,66.67mm ID x 38.35mm W

1шт.

19

1286025C1

SEALING RING,Locking, 53.91mm ID x 57.91mm OD x 2.87mm Thk

Sealing, 53.91 x 57.91 x 2.87

3шт.

20

84211212

DRIVEN GEAR

Range 3 & 4 Drop

1шт.

21

87373502

SLEEVE

Gear Retaining

1шт.

22

87555833

BEARING CONE,55mm ID x 23mm W

Cone, 55.0 x 23.0

1шт.

Выбрано товаров: 22
