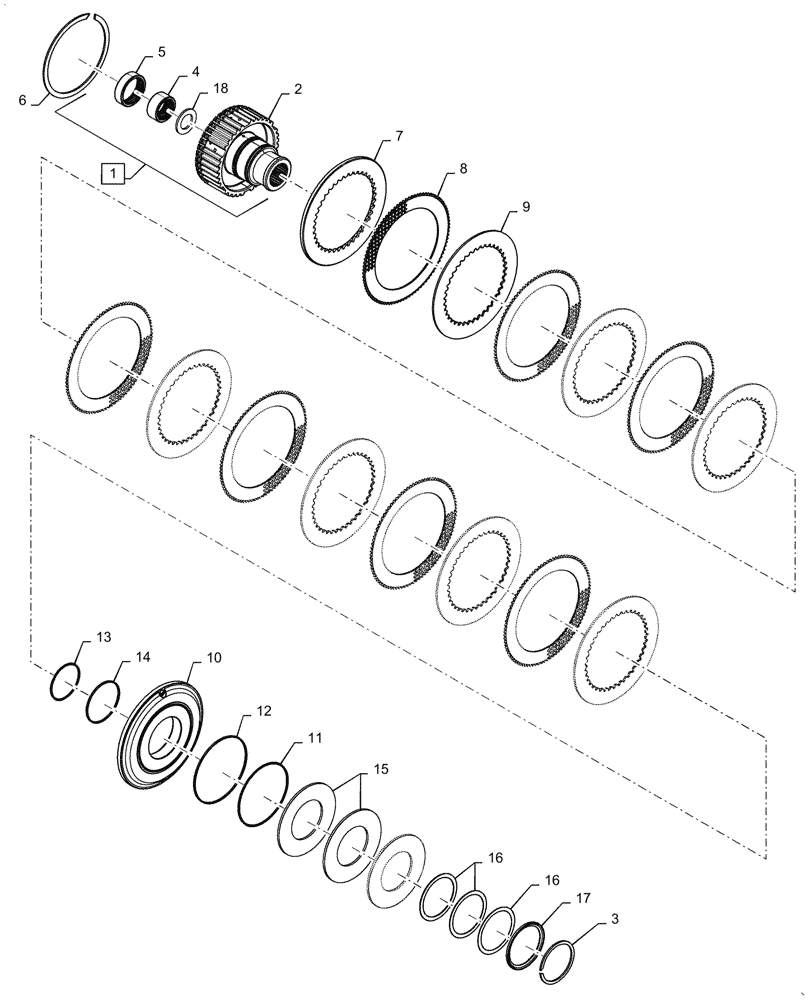

Запчасти Case IH MAGNUM 370 (21.507.AF[04]) - MFD CLUTCH ASSY - CL 5 - 7 PLATE (21) - TRANSMISSION

1

84482494

HUB

MFD Incl 2, 4, 5, 18

1шт.

2

NSS

NOT SOLD SEPARAT

HUB, MFD 5,6,7 Plate, Incl in 1

1шт.

3

87434027

CIRCLIP

Retaining

1шт.

4

87434025

NEEDLE BEARING

Radial Needle, 53.975mm OD

1шт.

5

87434026

NEEDLE BEARING

Radial Needle, 66.675mm OD

1шт.

6

87347811

CIRCLIP

Retaining

1шт.

7

84524003

PLATE,161.88mm ID x 228.5mm OD x 19.35mm Thk

Class 4.5 or 4.75 MFD Axle

1шт.

7

87347805

BACKING PLATE

Class 5 MFD Axle

1шт.

8

84159176

CLUTCH PLATE

Friction PEB / MFD

7шт.

9

87449793

SEPARATOR

Plate

7шт.

10

84524002

PISTON

Piston

1шт.

11

87037455

O-RING,0.103" Thk x 5.237" ID, -160, Cl 7, 75 Duro

1шт.

12

87433971

SEAL,139.65mm ID x 143.05mm OD x 2.87mm Thk

Piston O.D. PTFE

1шт.

13

238-7151

O-RING,0.103" Thk x 2.99" ID, -151, Cl 7, 75 Duro

1шт.

14

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

Piston I.D. PTFE

1шт.

15

47523411

BELLEVILLE SPRING

MFD

3шт.

16

47572513

SHIM KIT,84.50mm ID x 100mm OD

1шт.

17

84530165

SNAP RING

Retainer

1шт.

18

87434029

WASHER

Composite

1шт.
