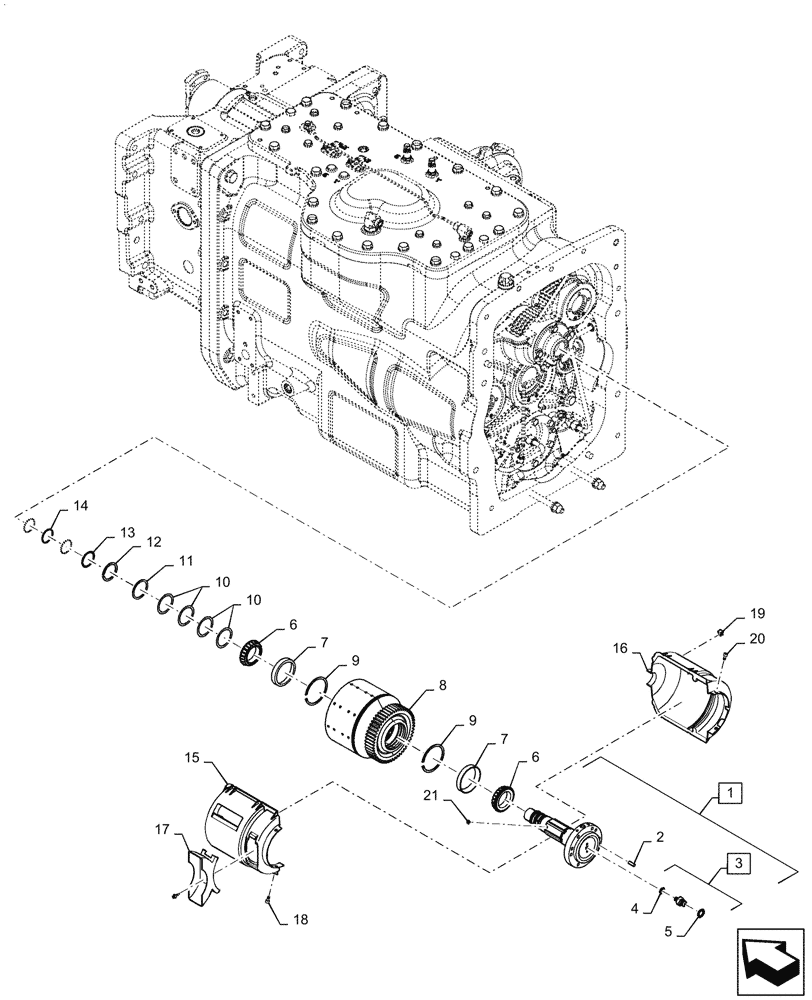

Запчасти Case IH MAGNUM 370 (21.507.AF[02]) - TRANSMISSION - CVT - PED MFD SUPPORT W/SHIELDS (21) - TRANSMISSION

1

84476028

SHAFT

MFD / Park Brake, Incl 2 - 5

1шт.

2

837-10025

DOWEL,M10 x 25

1шт.

3

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

Incl 4 - 5

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

2шт.

7

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

2шт.

8

87731289

GEAR

MFD Can Weldment

1шт.

9

101-21412

SNAP RING,#412, 4.430", Int

2шт.

10

1997893C1

SHIM,65.5mm ID x 80mm OD x 0.51mm Thk

1шт.

10

1997894C1

SHIM,65.5mm ID x 80mm OD x 0.56mm Thk

1шт.

10

1997895C1

SHIM,65.5mm ID x 80mm OD x 0.64mm Thk

1шт.

10

138121A1

SHIM,65mm ID x 80mm OD x 0.2mm Thk

1шт.

11

1277309C1

WASHER,65.25mm ID x 77mm OD x 3mm Thk

Spacer

1шт.

12

1997891C1

SNAP RING

External

1шт.

13

101-11225

SNAP RING,#225, Ext

1шт.

14

445336A1

SEALING RING,Locking, 50.91mm ID x 54.91mm OD x 2.87mm Thk

3шт.

15

47392938

SHIELD

MFD Clutch, Upper Half

1шт.

16

84420566

SHIELD

MFD Clutch, Lower Half

1шт.

17

47392940

SHIELD

MFD Drive Gear

1шт.

18

87331111

HEX SOC SCREW,M8 x 16mm, Cl 8.8

4шт.

19

87332637

CLIP

Park Brake MFD Shield

6шт.

20

87348536

RIVET,6.4mm OD x 22.8mm L

2шт.

21

84485582

O-RING,0.139" Thk x 0.296" ID, -203, Cl 7, 75 Duro

1шт.
