Запчасти Case IH MAGNUM 340 (90.151.AC) - SEAT, INSTRUCTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

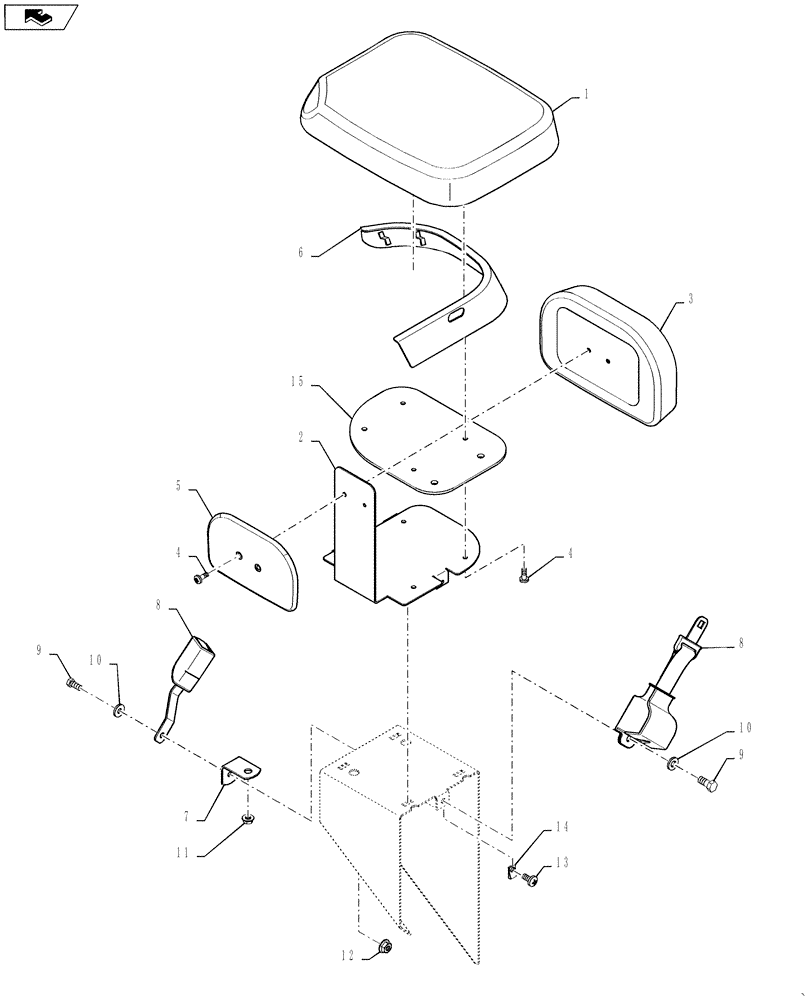

Схема запчастей Case IH MAGNUM 340 - (90.151.AC) - SEAT, INSTRUCTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
9
7
5
4
3
6
12
home
1
11
4
10
15
9
14
10
2
13
8

Артикул

Название

Примечание

Количество

1

87748949

CUSHION, SEAT

Cloth

1шт.

Standard Cab - Var 420012 & 449058

1шт.

1

84135804

CUSHION

Leather

1шт.

Luxury Cab - Var 449059

1шт.

2

296316A3

SUPPORT

Instructional Seat

1шт.

3

87748950

BACKREST COVER

Cloth

1шт.

Standard Cab - Var 420012 & 449058

1шт.

3

84135806

CUSHION

Leather

1шт.

Luxury Cab - Var 449059

1шт.

4

840-2616

SCREW,Pan, M6 x 16mm, Cl 4.8

6шт.

5

359029A1

COVER

Instructional Back Rest

1шт.

6

359039A1

BEZEL

Instructional Seat

1шт.

7

309099A1

BRACKET

Seat Belt Buckle, Instructional Seat

1шт.

8

224808A1

SAFETY BELT ,48mm W x 1219mm L

Instructional Seat

1шт.

9

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

11

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

12

825-51412

FLANGE NUT,M12, Flg Ser

1шт.

13

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

14

833-40306

SPRING NUT,M6, U

1шт.

15

381940A1

PANEL

Seat Cover

1шт.

Выбрано товаров: 21
