Запчасти Case IH MAGNUM 340 (90.150.AJ[05]) - ISO CAB MOUNTING - HEAVY DUTY REAR AXLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

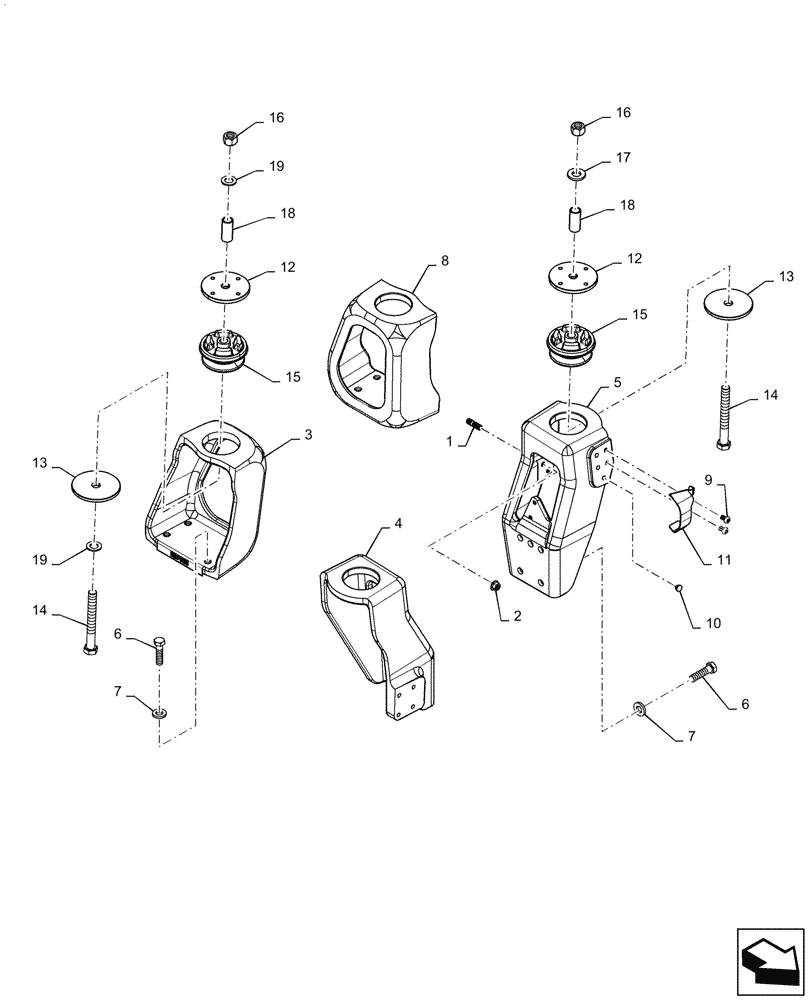

Схема запчастей Case IH MAGNUM 340 - (90.150.AJ[05]) - ISO CAB MOUNTING - HEAVY DUTY REAR AXLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
16
1
15
9
13
6
5
8
7
14
14
16
15
19
18
4
12
19
7
6
2
17
13
12
11
3
18
10

Артикул

Название

Примечание

Количество

1

87477184

STUD

3шт.

2

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

3шт.

3

84545187

MOUNT

Cab, RH Rear ISO, Heavy Duty Rear Axle

1шт.

4

84350239

MOUNT

Cab, RH Front ISO

1шт.

5

84272494

MOUNT

Cab, LH Front ISO

1шт.

6

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

18шт.

7

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

18шт.

8

47399710

MOUNT

Cab, LH Rear ISO, Heavy Duty Rear Axle

1шт.

9

84405128

HEX SOC SCREW,M10 x 1.5 x 20mm, Cl 10.9

2шт.

10

128209A1

PLUG

Black Plastic

3шт.

11

47739274

BRACKET

Exhaust Aspirator Hose, ISO Cab Mount

1шт.

12

87479138

SPACER

Threaded

4шт.

13

87476928

SPACER,21mm ID x 120mm OD x 9.2mm L

4шт.

14

87493301

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

4шт.

15

83983548

ISOLATOR,120mm OD x 64mm L

Body to Frame

4шт.

16

86015195

NUT,M20 x 1.5, Cl 10

4шт.

17

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

2шт.

18

87476869

TUBE

Support

4шт.

19

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

Выбрано товаров: 19
