Запчасти Case IH MAGNUM 340 (90.118.AP) - STEP, FRONT WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

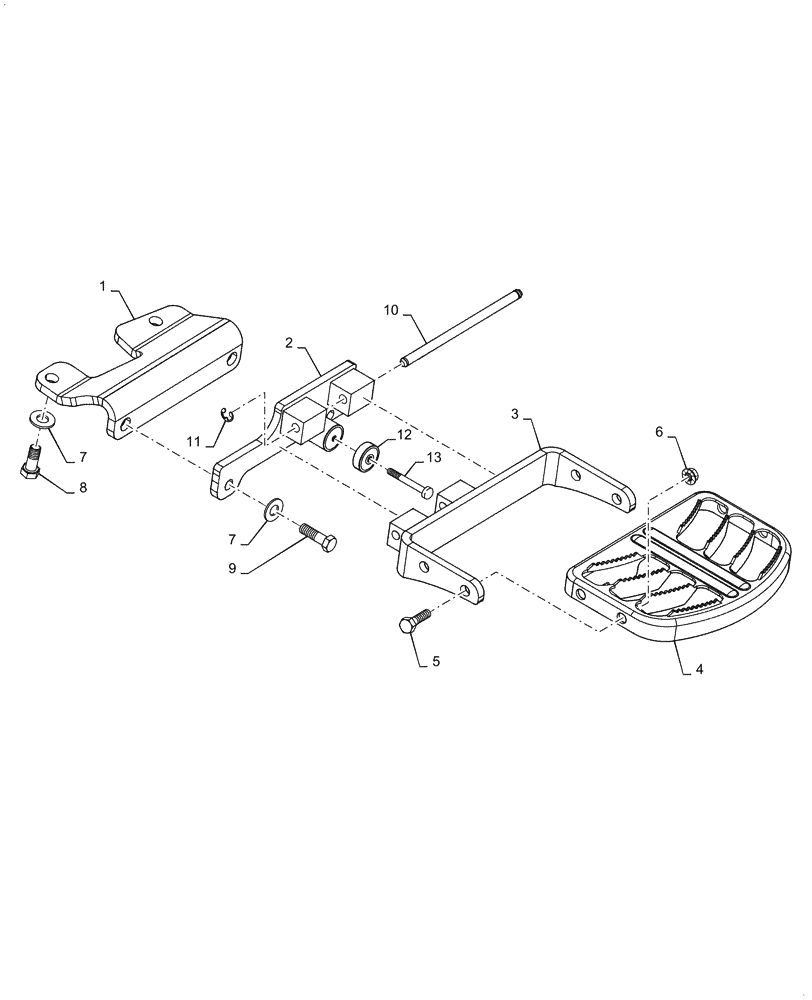

Схема запчастей Case IH MAGNUM 340 - (90.118.AP) - STEP, FRONT WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
11
6
1
10
7
3
9
13
4
2
12
7
8

Артикул

Название

Примечание

Количество

1

47675797

PLATE

Step Main Support

1шт.

2

47588715

PLATE

Step Vertical Support

1шт.

3

47588291

PLATE

Step Mount

1шт.

4

84179556

STEP

Tread PTD

1шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

6

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

7

895-15012

WASHER,M12 x 28 x 2.5

4шт.

8

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

2шт.

9

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

10

47588722

PIN

Window Step Hinge

1шт.

11

800-439

CIRCLIP,M9

2шт.

12

47497848

MAGNET

32mm

1шт.

13

47399711

SCREW,M5 x 0.8 x 20mm OAL

Hex Soc, M5 x 20 Flat 8.8 BZN FULL

1шт.

Выбрано товаров: 13
