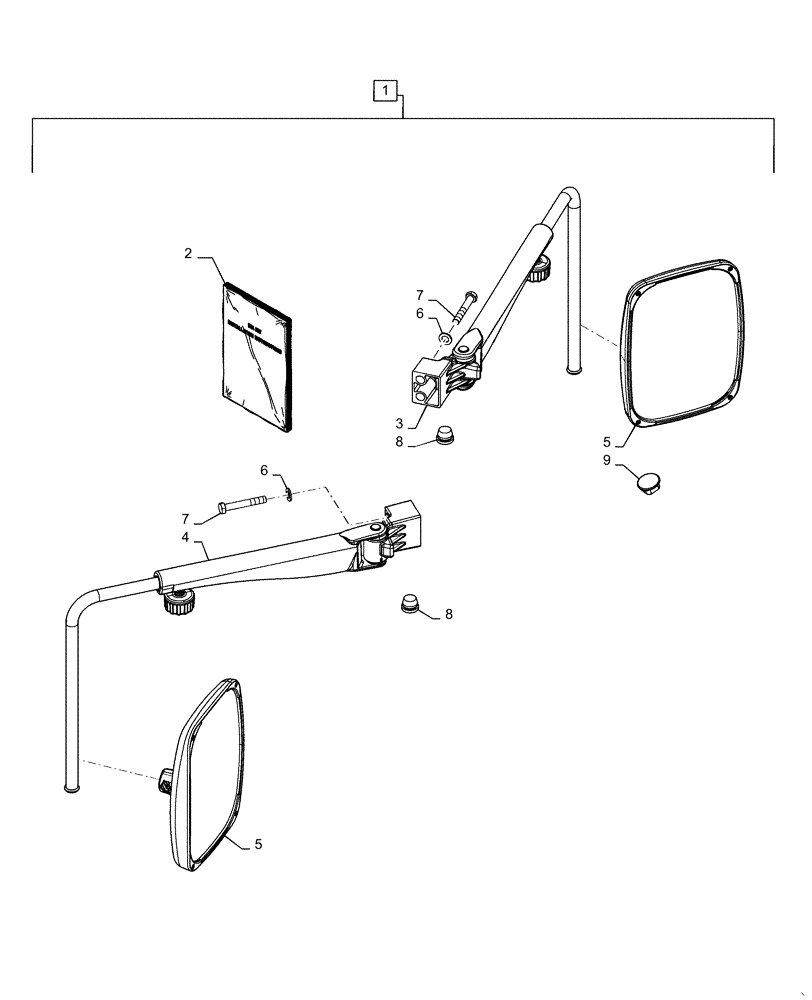

Запчасти Case IH MAGNUM 340 (88.100.90[07]) - DIA KIT, MANUAL WIDE ADJUSTABLE MIRRORS (88) - ACCESSORIES

1

47463344

DIA KIT, TRACTOR

Manual Wide Adj Mirrors, Incl 2 - 9

1шт.

2

47463346

INSTRUCTION

Installations, Manual Wide Adj Mirrors

1шт.

3

87363073

ARM

RH Mirror, Manual

1шт.

4

87363070

ARM

LH Mirror, Manual

1шт.

5

87350494

MIRROR ASSY.,240mm x 329mm

2шт.

6

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

7

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

8

182220A1

GROMMET

2шт.

9

280628A1

PLUG

no Power Mirror

1шт.
