Запчасти Case IH MAGNUM 340 (10.001.AK[02]) - VAR- 420228, 429199 - ENGINE MOUNTING PARTS, WITH SUSPENDED MFD AXLE, TIER 4B - 250, 280, 310, 340 (10) - ENGINE

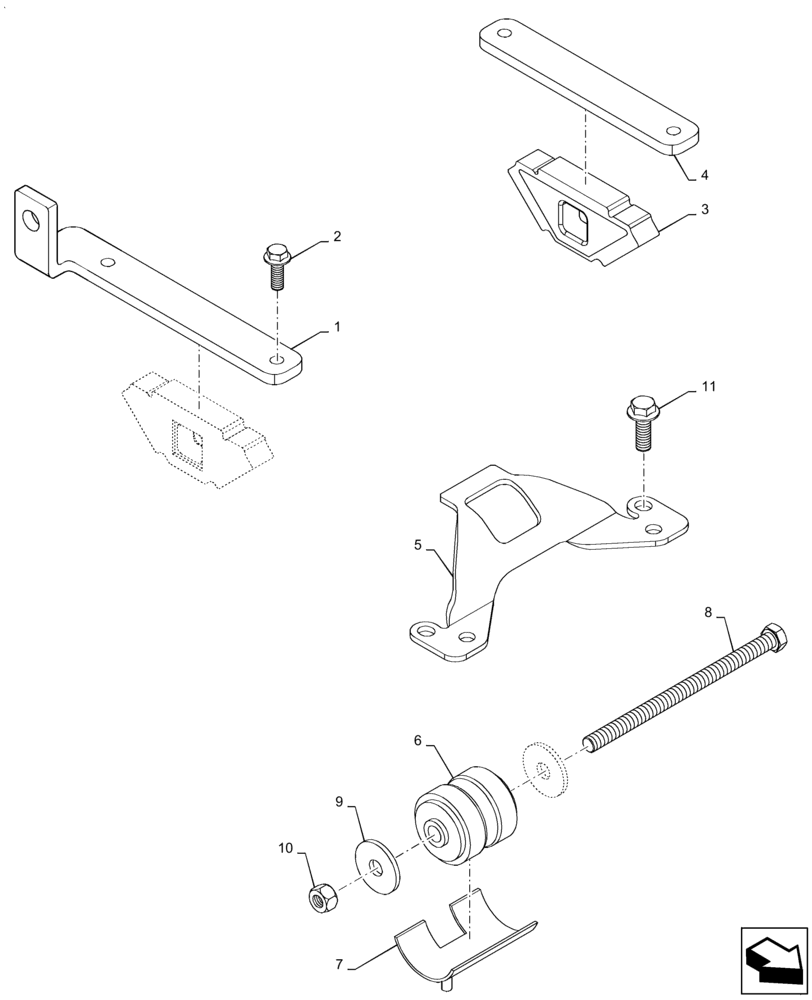

Схема запчастей Case IH MAGNUM 340 - (10.001.AK[02]) - VAR- 420228, 429199 - ENGINE MOUNTING PARTS, WITH SUSPENDED MFD AXLE, TIER 4B - 250, 280, 310, 340 (10) - ENGINE
5
11
9
8
3
6
10
4
1
2
7

Артикул

Название

Примечание

Количество

1

84391274

MOUNTING PLATE

Engine, Rear

1шт.

2

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

4шт.

3

251991A1

SUPPORT

Engine, Rear

2шт.

4

87689563

BRACKET

Rear ISO Engine Mount

1шт.

5

84427074

BRACKET

Front ISO Engine Mount

1шт.

6

247991A1

RUBBER MOUNTING,76.2mm OD x 86.4mm L

Front Engine Mount

1шт.

7

84492064

MOUNTING PLATE

Engine, Front

1шт.

8

827-16250

BOLT,Hex, M16 x 2 x 250mm, Cl 10.9

1шт.

9

895-30103

WASHER,M16 x 56 x 5

2шт.

10

832-10416

NUT,M16 x 2, Cl 8

1шт.

11

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

Выбрано товаров: 11
