(44.520.AB[07]) - WHEEL HUB, REAR, 5-INCH AXLE, NA, DUAL WITH 380, 420, OR 480 SECTION TIRES

Запчасти Case IH MAGNUM 340 (44.520.AB[07]) - WHEEL HUB, REAR, 5-INCH AXLE, NA, DUAL WITH 380, 420, OR 480 SECTION TIRES (44) - WHEELS

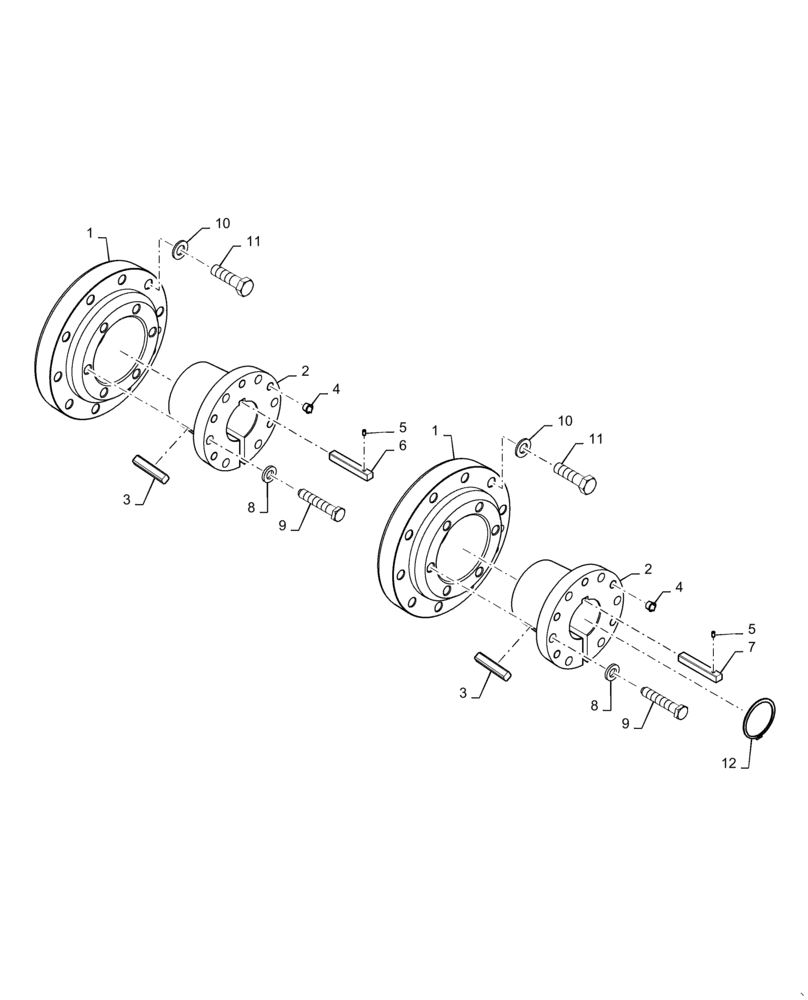

Схема запчастей Case IH MAGNUM 340 - (44.520.AB[07]) - WHEEL HUB, REAR, 5-INCH AXLE, NA, DUAL WITH 380, 420, OR 480 SECTION TIRES (44) - WHEELS
8
8
1
2
10
7
5
4
3
9
10
9
11
2
12
11
5
3
1
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47606861

HUB

10 Bolt, 335 mm Bolt Circle, Key Taper

2шт.

2

47606862

BUSHING

Wheel Hub, 127 mm (5 Inch) Axle, Key Taper

2шт.

3

47606498

KEY,19mm x 19mm x 100mm

Hub to Bushing

2шт.

4

303401A1

PLUG

10шт.

5

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

6

A63219

KEY

Bushing to Axle, Inner, 19 x 124 mm

1шт.

7

87731306

KEY

Bushing to Axle, Outer, 19 x 156 mm

1шт.

8

86637816

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

12шт.

9

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

12шт.

10

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

11

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

Lug Bolt, Rear Wheel

20шт.

12

84198540

COUPLING RING

1шт.

Выбрано товаров: 12
