Запчасти Case IH MAGNUM 340 (27.120.AF[04]) - HD REAR AXLE PLANETARY - MAGNUM 340, 380 (27) - REAR AXLE SYSTEM

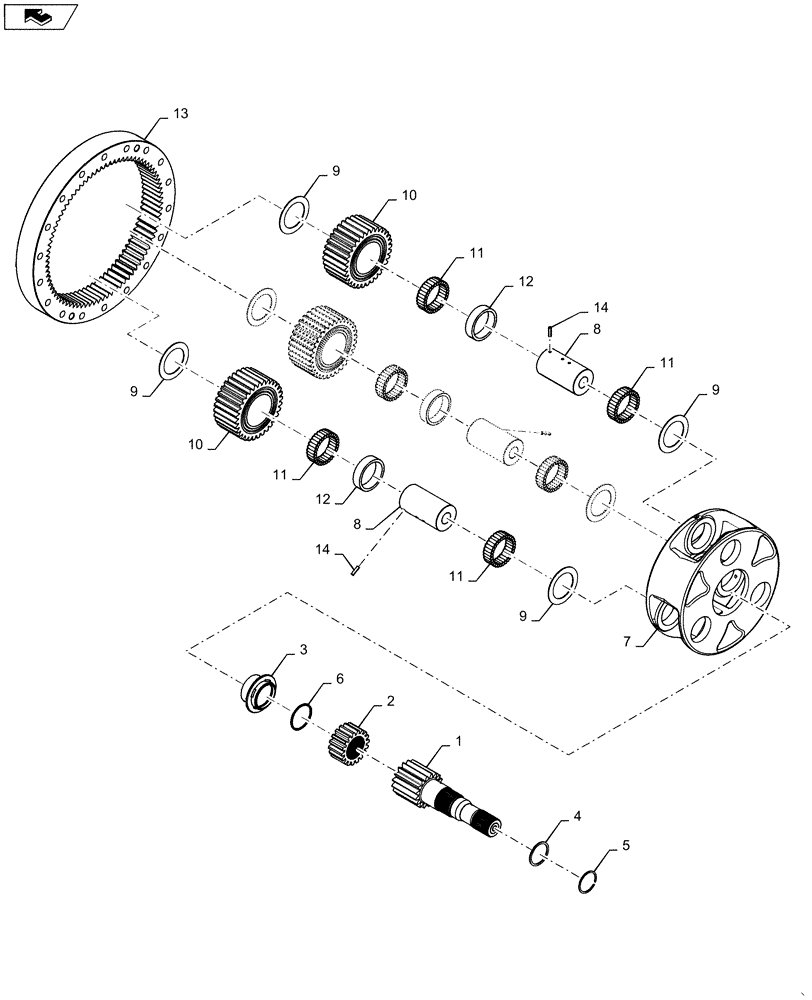

Схема запчастей Case IH MAGNUM 340 - (27.120.AF[04]) - HD REAR AXLE PLANETARY - MAGNUM 340, 380 (27) - REAR AXLE SYSTEM
11
13
4
12
10
3
home
9
9
1
8
8
10
6
14
11
14
9
2
11
11
5
12
7
9

Артикул

Название

Примечание

Количество

1

47371689

SHAFT

HD Planetary Sun Gear

1шт.

2

1259732C1

HUB,47T Internal/18T External

Brake Disc Adapter

1шт.

3

47461012

BAFFLE

Sunshaft

1шт.

4

1259753C1

THRUST WASHER

Brake Disc Adapter

1шт.

5

101-11275

SNAP RING,#275, 2.594, Ext

1шт.

6

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

7

84568375

CARRIER

HD 3 Planetary

1шт.

8

84424976

SHAFT

HD Planetary

3шт.

9

84424977

THRUST WASHER,89mm ID x 128mm OD x 2.6mm Thk

Planetary Gear

6шт.

10

84424975

GEAR

HD Planetary

3шт.

11

84424985

PIN,10.71mm OD x 34.09mm L

Straight Needle Bearing

174шт.

12

84564790

SPACER,91.7mm ID x 109.3mm OD x 28.83mm L

Planetary Needle Bearing

3шт.

13

84424972

PLANETARY GEAR

HD Planetary Ring

2шт.

14

838-3826

PIN,M8 x 26, Coiled

3шт.

Выбрано товаров: 14
