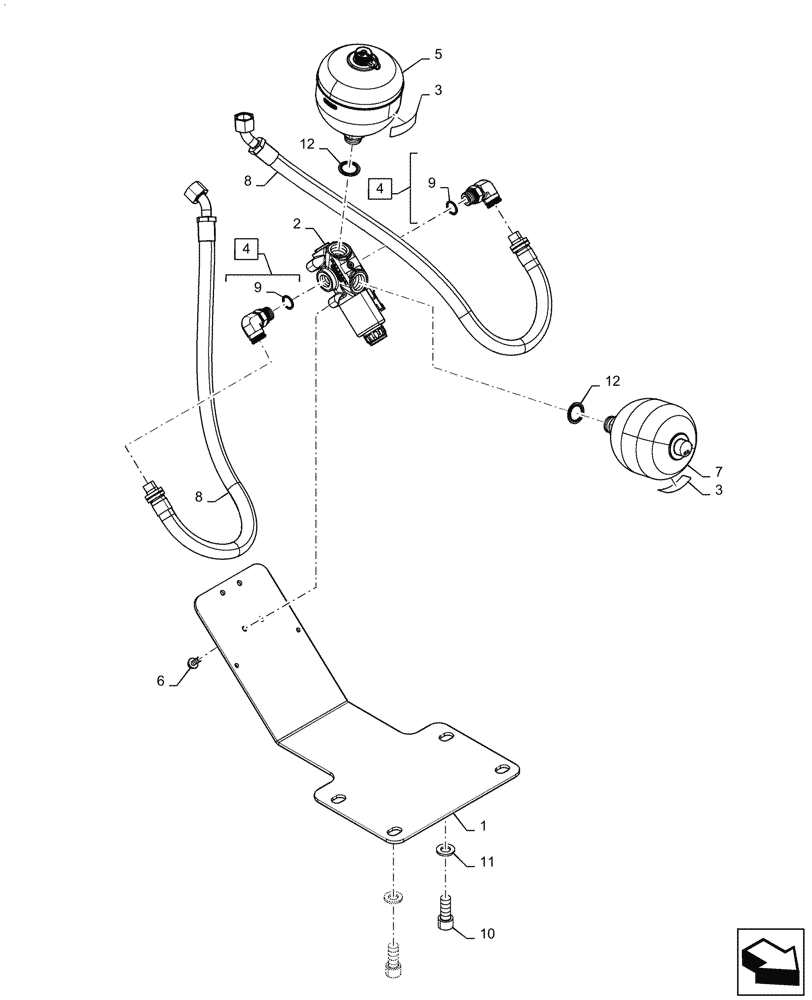

Запчасти Case IH MAGNUM 340 (25.122.AL[02]) - VAR - 420228 & 429420 - LOCKOUT SOLENOID VALVE, CL. 4.75 SUSPENDED FRONT AXLE, W/O FRONT PTO OR PTO READY (25) - FRONT AXLE SYSTEM

1

47809019

BRACKET

Suspended Axle Lockout Valve Support

1шт.

2

87757028

HYDRAULIC VALVE

Suspended Axle Lockout

1шт.

3

82029752

DECAL

Warning: Hydraulic Accumulator, Serial Range: -ZGR*05717

2шт.

3

84270891

DECAL

Warning: Hydraulic Accumulator, Start Serial: ZGR*05718

2шт.

4

84145620

90 ELBOW,M27 ORB, Male Adj x 20mm STC Fem

Incl 15

2шт.

5

47867991

ACCUMULATOR

2L 350 Bar

1шт.

6

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

7

84403857

ACCUMULATOR,1.4L

330 Bar

1шт.

8

47740627

HYDRAULIC HOSE

Suspended Axle Lockout Valve

2шт.

9

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

10

87733367

HEX SOC SCREW,M20 x 50mm, Cl 12.9, Full Thd

4шт.

11

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

12

340493A2

SEALING RING,30.3mm ID x 42.8mm OD x 2.5mm Thk

2шт.
