Запчасти Case IH MAGNUM 340 (25.122.AD[04]) - VAR- 429199 - FRONT AXLE, SUSPENSION CYLINDER, HYDR LINES - CL 5 - BSN ZERF08099 (25) - FRONT AXLE SYSTEM

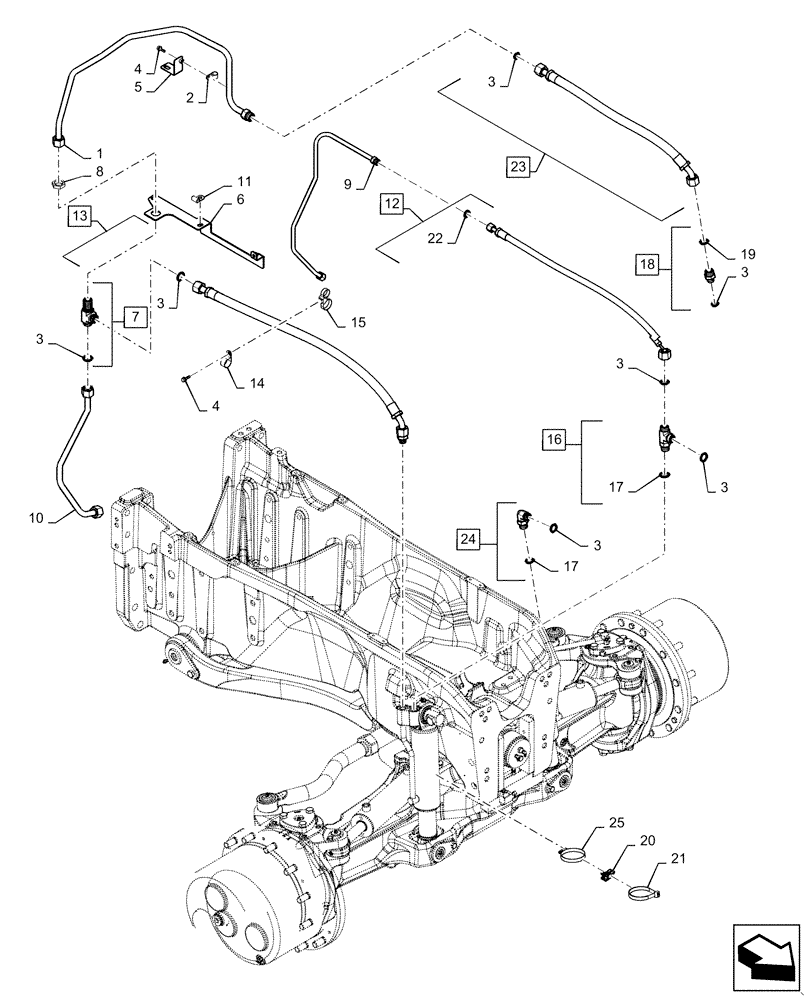

Схема запчастей Case IH MAGNUM 340 - (25.122.AD[04]) - VAR- 429199 - FRONT AXLE, SUSPENSION CYLINDER, HYDR LINES - CL 5 - BSN ZERF08099 (25) - FRONT AXLE SYSTEM
15
14
4
13
19
3
22
17
3
3
11
5
20
3
21
18
24
6
10
3
3
7
2
25
3
17
23
12
1
4
8
16
9

Артикул

Название

Примечание

Количество

1

47444500

HYD TUBE

Suspended Axle Valve, Port B Upper

1шт.

2

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

11шт.

4

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

5

84354840

BRACKET

Tube Clamp

1шт.

6

84260352

CLAMP BRACKET

Hose

1шт.

7

87017595

UNION TEE

Bulk Head-HD Run ORFS 20 mm; Incl 3

1шт.

8

701-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

9

84257242

TUBE

Suspended Axle Valve, Port A

1шт.

10

84257243

TUBE

Suspended Axle Valve, Port B

1шт.

11

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

12

84257241

HOSE ASSY.

Suspended Axle Cyl Head Supply; Incl 3, 22

1шт.

13

84257239

HOSE ASSY.

Suspended Axle Cyl Rod Supply; Incl 3

1шт.

14

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

15

86991000

CLAMP

Dual Tie

2шт.

16

84141301

TEE

Adj Run ORFS 20 mm-M27-20 mm; Incl 3, 17

1шт.

17

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

18

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 3, 19

2шт.

19

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

20

86991001

SPACER

Dual Swivel Saddle

2шт.

21

86991007

CABLE TIE,509mm L

20 x .28" Nylon, Black

2шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

84354841

HOSE

Suspended Axle Cyl Rod, LH; Incl 3

1шт.

24

84141379

ELBOW

90, Adj 20 mm ORFS x M27 ORB; Incl 3, 17

1шт.

25

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

2шт.

Выбрано товаров: 25
