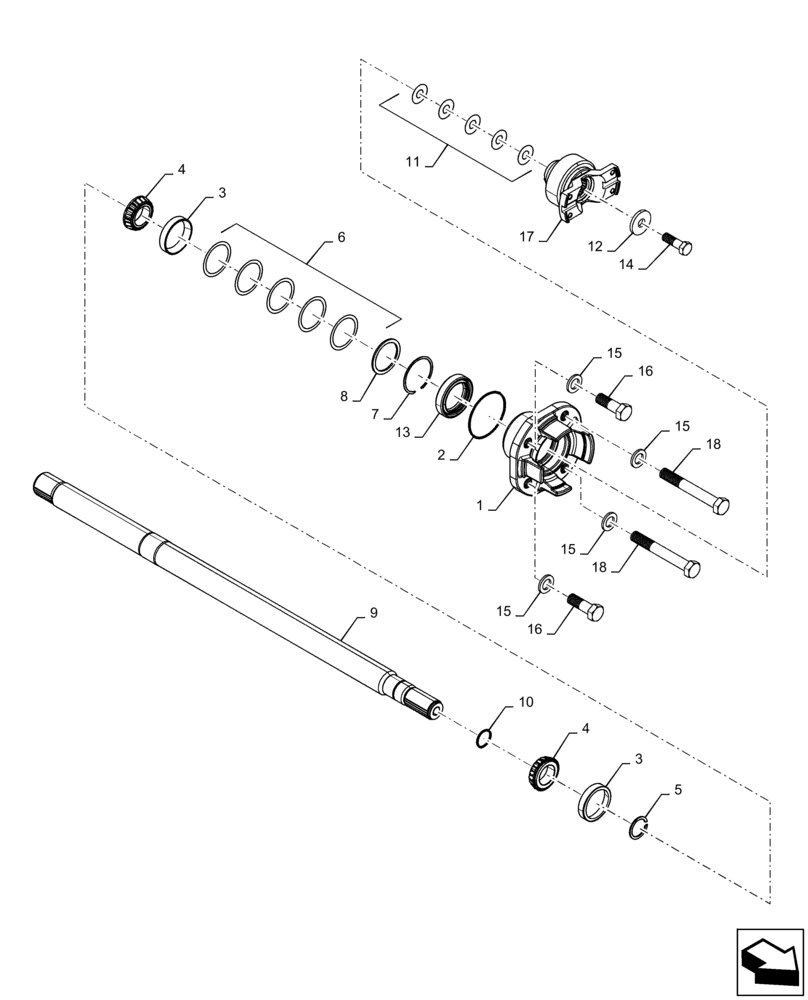

Запчасти Case IH MAGNUM 340 (23.314.AI[01]) - MFD DRIVE SHAFT, INTERNAL, POWERSHIFT (23) - FOUR WHEEL DRIVE SYSTEM

1

199922A2

CAGE

MFD Output Shaft Bearings

1шт.

2

238-5043

O-RING,0.07" Thk x 3.489" ID, -43, Cl 5, 75 Duro

1шт.

3

235521A1

BEARING, CUP,73.44mm OD x 14.63mm W

2шт.

4

235519A1

ROLLER BEARING,41.28mm ID x 19.72mm W

2шт.

5

222732A1

SNAP RING

Retaining

1шт.

6

199927A1

SHIM,60.5mm ID x 73mm OD x 0.56mm Thk

Bearing

1шт.

6

199928A1

SHIM,60.5mm ID x 73mm OD x 0.5mm Thk

Bearing

1шт.

6

199929A1

SHIM,60.5mm ID x 73mm OD x 0.36mm Thk

Bearing

1шт.

6

222675A1

SHIM,60.5mm ID x 73mm OD x 0.64mm Thk

Bearing

1шт.

6

249528A1

SHIM,0.203mm Thk

Bearing

1шт.

7

199981A1

SNAP RING

Retaining

1шт.

8

199923A1

SPACER,60.12mm ID x 73mm OD x 3.12mm L

Bearing

1шт.

9

47402758

SHAFT

MFD PST Large

1шт.

10

238-5220

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

11

47609629

SHIM KIT

MFD Yoke, 5 Shims, 17.00 X 40.00

1шт.

12

221943A1

WASHER,17.5mm ID x 50mm OD x 6mm Thk

Yoke

1шт.

13

226851A1

OIL SEAL,60.33mm ID x 85.22mm OD x 17.02mm Thk

Bearing Shaft

1шт.

14

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

1шт.

15

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

16

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

17

258855A1

YOKE

MFD Output, 5C

1шт.

Used on VAR- 420224, 420228, 429286

1шт.

17

87663540

YOKE

MFD Output, 6C

1шт.

Used on VAR- 420277, 429199

1шт.

18

828-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

2шт.
