Запчасти Case IH MAGNUM 340 (21.200.AA[01]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - TRANSMISSION DROP BOX (21) - TRANSMISSION

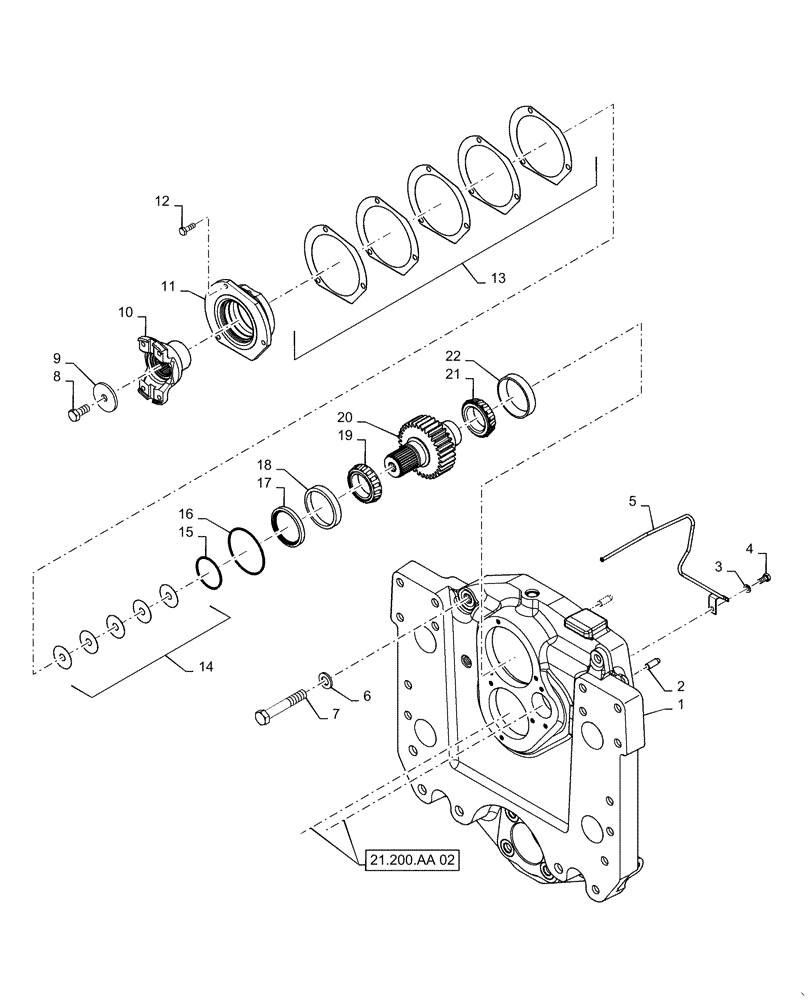

Схема запчастей Case IH MAGNUM 340 - (21.200.AA[01]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - TRANSMISSION DROP BOX (21) - TRANSMISSION
2
22
17
3
7
13
6
20
21.200.aa 02
21
4
14
9
10
19
11
16
8
5
15
1
12
18

Артикул

Название

Примечание

Количество

1

87640603

HOUSING

Drop Box

1шт.

2

375362R1

PIN,12.69mm OD x 34.8mm L

2шт.

3

892-11010

LOCK WASHER,M10

1шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

5

259979A2

TUBE

Drop Box Lube

1шт.

6

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

7

828-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

8шт.

8

628-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

9

230497A1

WASHER,17.5mm ID x 67.5mm OD x 6mm Thk

Trans Input Yoke

1шт.

10

301843A1

YOKE

Universal Joint

1шт.

11

221240A4

FLANGE

Input Shaft

1шт.

12

339770A1

BOLT,Hex, M10 x 30mm, Cl 10.9, W/ Sealant

8шт.

13

228267A1

SHIM,146.4mm ID x 191mm OD x 0.36mm Thk

1шт.

13

228270A1

SHIM,146.4mm ID x 191mm OD x 0.64mm Thk

1шт.

13

275214A1

SHIM,146mm ID x 191mm OD x 0.2mm Thk

1шт.

13

341205A1

SHIM,0.178mm Thk

1шт.

13

341206A1

SHIM,146.4mm ID x 191mm OD x 0.15mm Thk

1шт.

14

230486A1

SHIM,16.5mm ID x 54mm OD x 0.36mm Thk

1шт.

14

230487A1

SHIM,16.5mm ID x 54mm OD x 0.5mm Thk

1шт.

14

230488A1

SHIM,16.5mm ID x 54mm OD x 0.56mm Thk

1шт.

14

230490A1

SHIM,16.5mm ID x 54mm OD x 0.64mm Thk

1шт.

14

276638A1

SHIM,16.5mm ID x 54mm OD x 0.2mm Thk

1шт.

15

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

16

238-5161

O-RING,0.103" Thk x 5.438" ID, -161, Cl 5, 75 Duro

1шт.

17

225820A1

OIL SEAL,66.55mm ID x 92.18mm OD x 11.68mm Thk

Input Shaft

1шт.

18

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

19

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

1шт.

20

302553A1

GEAR SHAFT

Drop Box Input 33T

1шт.

21

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

1шт.

22

105496H

BEARING CUP,97.63mm OD x 19.45mm W

1шт.

Выбрано товаров: 30
