Запчасти Case IH MAGNUM 340 (21.504.AB[01]) - VAR - 429334, 429335 - TRANSMISSION - CVT - FRONT COVER ASSY (21) - TRANSMISSION

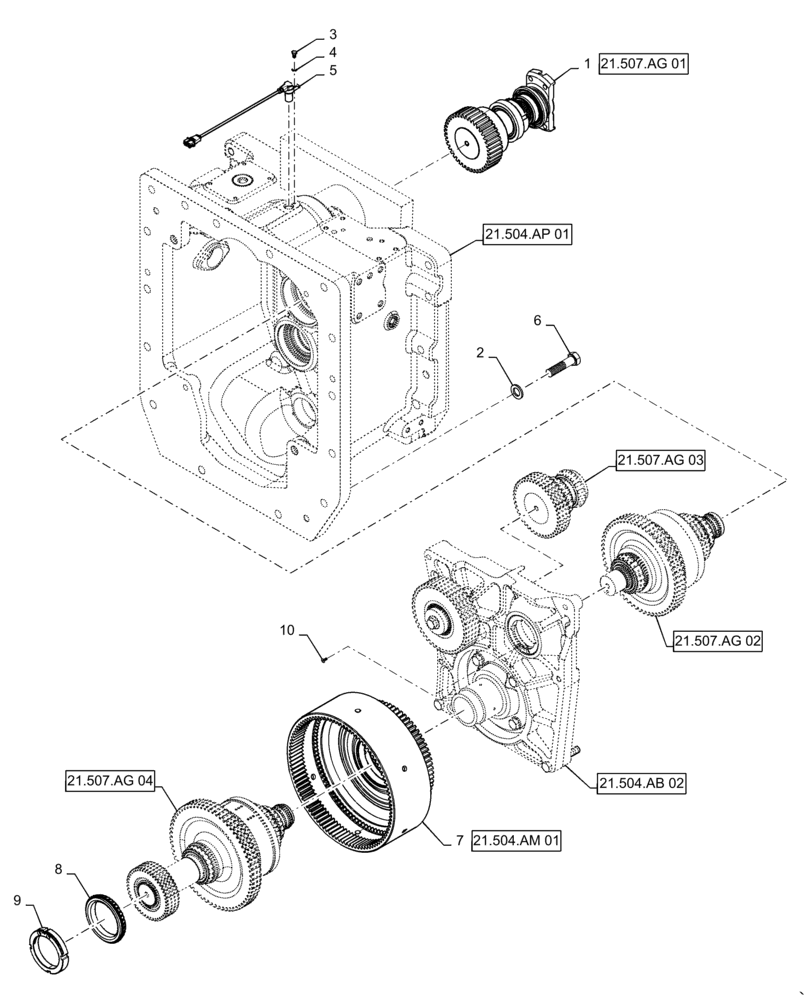

Схема запчастей Case IH MAGNUM 340 - (21.504.AB[01]) - VAR - 429334, 429335 - TRANSMISSION - CVT - FRONT COVER ASSY (21) - TRANSMISSION
6
8
21.504.ap 01
21.507.ag 01
21.507.ag 03
4
21.507.ag 02
5
21.504.ab 02
1
21.507.ag 04
2
21.504.am 01
7
9
10
3

Артикул

Название

Примечание

Количество

1

84410237

SHAFT

Input

1шт.

2

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

15шт.

3

613-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

4

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

1шт.

5

84169162

SENSOR

Speed, Hall Effect , Serial Range: -ZFR*03817

1шт.

5

47766973

SENSOR

Speed, Hall Effect, Start Serial: ZFR*03818

1шт.

6

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

15шт.

7

84551714

RING GEAR

Planetary

1шт.

8

81312C1

ROLLER BEARING,95 mm ID x 135 mm OD x 20 mm

1шт.

9

87485163

BEARING LOCK NUT

1шт.

10

87309531

HEX SOC SCREW,FLAT, M5 x 0.8 x 12mm, Cl 10.9

2шт.

Выбрано товаров: 11
