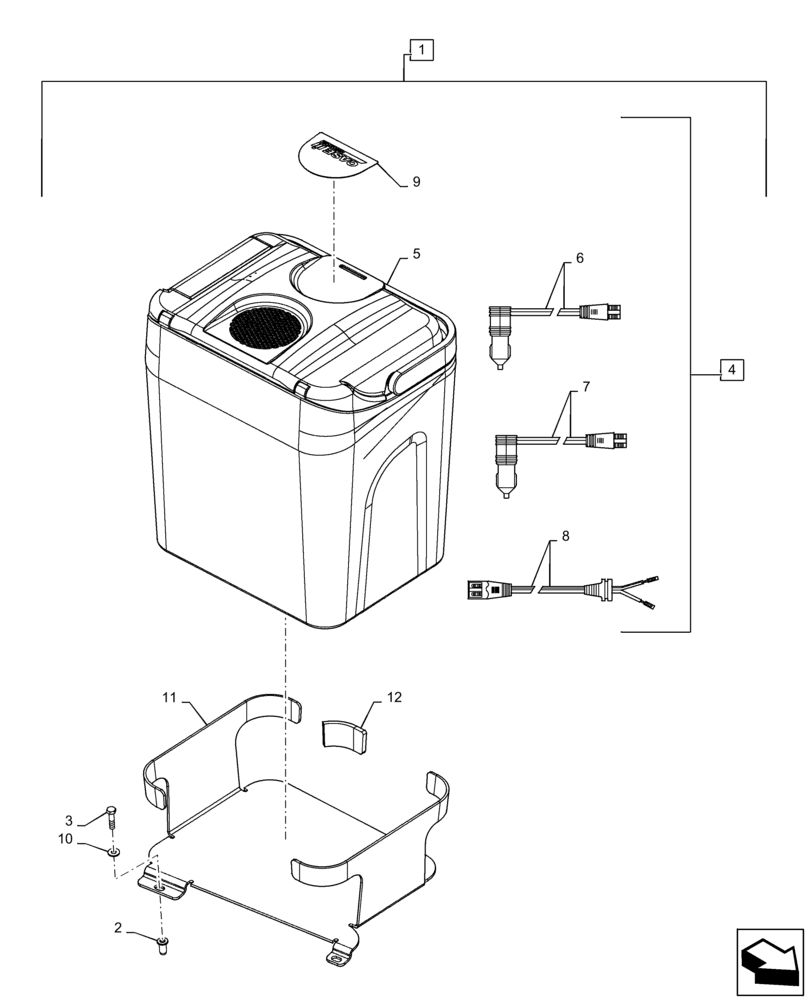

Запчасти Case IH MAGNUM 340 (88.100.AO[01]) - DIA KIT, COOLER (88) - ACCESSORIES

1

47789889

KIT

Coolbox W/Bracket, With Instruction Sheet, Incl 2 - 12

1шт.

1

47783334

COOLER ASSY.

Coolbox W/Bracket, W/O Instruction Sheet, Incl 2 - 12

1шт.

2

322073A1

NUT

2шт.

3

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

4

47772147

COOLER

Incl 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

COOLER, Incl in 4

1шт.

6

47443925

WIRE CONNECTOR

Power Cable, 450 MM (17.7 Inches)

1шт.

7

47443926

WIRE CONNECTOR

Power Cable, 1000 MM (39.4 Inches)

1шт.

8

47443927

WIRE CONNECTOR

Power Cable, 250 MM (9.8 Inches)

1шт.

9

47398712

DECAL

Case IH Agriculture

1шт.

10

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

11

NSS

NOT SOLD SEPARAT

BRACKET, Coolbox Mounting, Incl in 1

1шт.

12

47789891

TRIM

Vinyl, Coolbox Bracket

4шт.
