Запчасти Case IH MAGNUM 340 (88.100.90[19]) - FRONT FENDERS & FENDER MOUNTING PARTS - WIDE, CLASS 5 WIDE AXLE (88) - ACCESSORIES

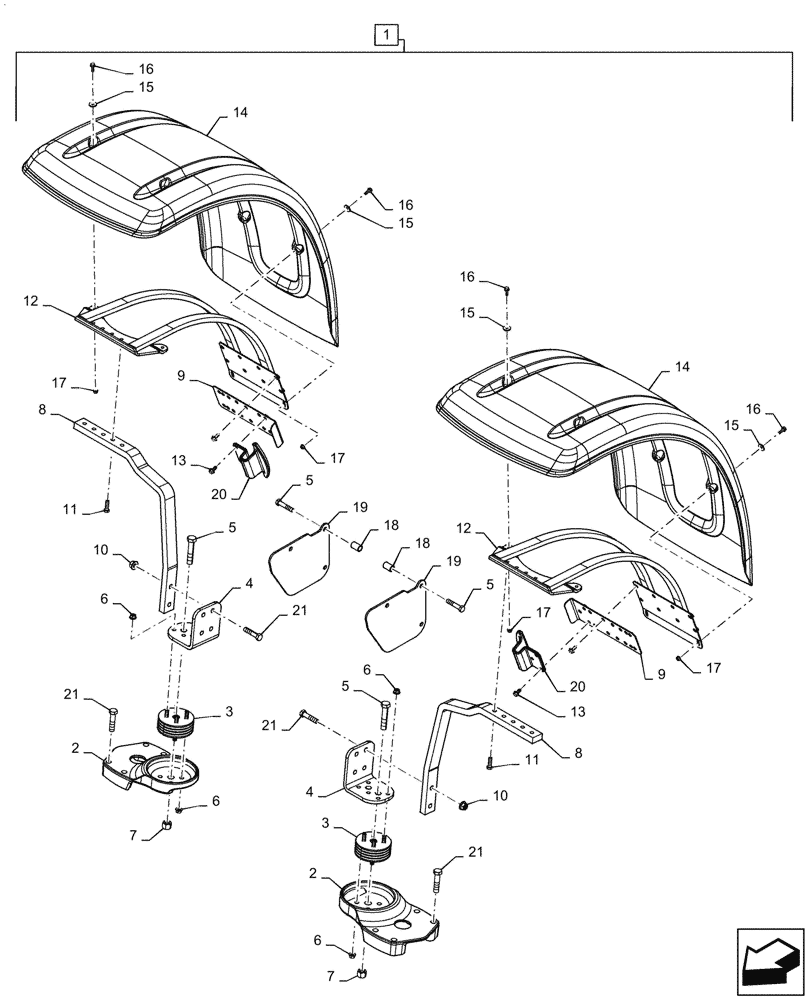

Схема запчастей Case IH MAGNUM 340 - (88.100.90[19]) - FRONT FENDERS & FENDER MOUNTING PARTS - WIDE, CLASS 5 WIDE AXLE (88) - ACCESSORIES
3
17
6
10
8
21
16
9
4
19
19
14
11
21
13
4
3
2
15
18
16
1
12
6
20
15
9
7
14
12
17
15
7
5
2
17
21
20
10
15
11
16
18
13
5
6
21
17
16
5
5
6
8

Артикул

Название

Примечание

Количество

1

47869152

DIA KIT, TRACTOR

MFD Wide Fender, Class 5 Wide, Incl 2 - 21

1шт.

2

47452984

BRACKET

Fender, Lower, Class 5 Wide

2шт.

3

226690A2

RUBBER BUMPER

Fender Mount

2шт.

4

47783126

BRACKET

Front Fender, Lower, Class 5 Wide

2шт.

5

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

8шт.

6

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

7

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

8

84546384

SUPPORT

Bar, Fender, Upright

2шт.

9

84546386

PLATE

Fender Bumper Bar

2шт.

10

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

12

47465883

FRAME

Fender Support

2шт.

13

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

14шт.

14

47451721

FENDER

Wide, 650mm

2шт.

15

140041

WASHER,M8 x 28mm OD x 3mm Thk

8шт.

16

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

17

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

18

84580679

SPACER

Fender Bumper Plate

6шт.

19

47777286

PAD

Fender Bumper, Large Tire

2шт.

20

84546378

BUMPER

Fender

2шт.

21

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

Выбрано товаров: 21
