Запчасти Case IH MAGNUM 340 (88.100.90[18]) - FRONT FENDERS & FENDER MOUNTING PARTS - NARROW, CLASS 5 WIDE AXLE (88) - ACCESSORIES

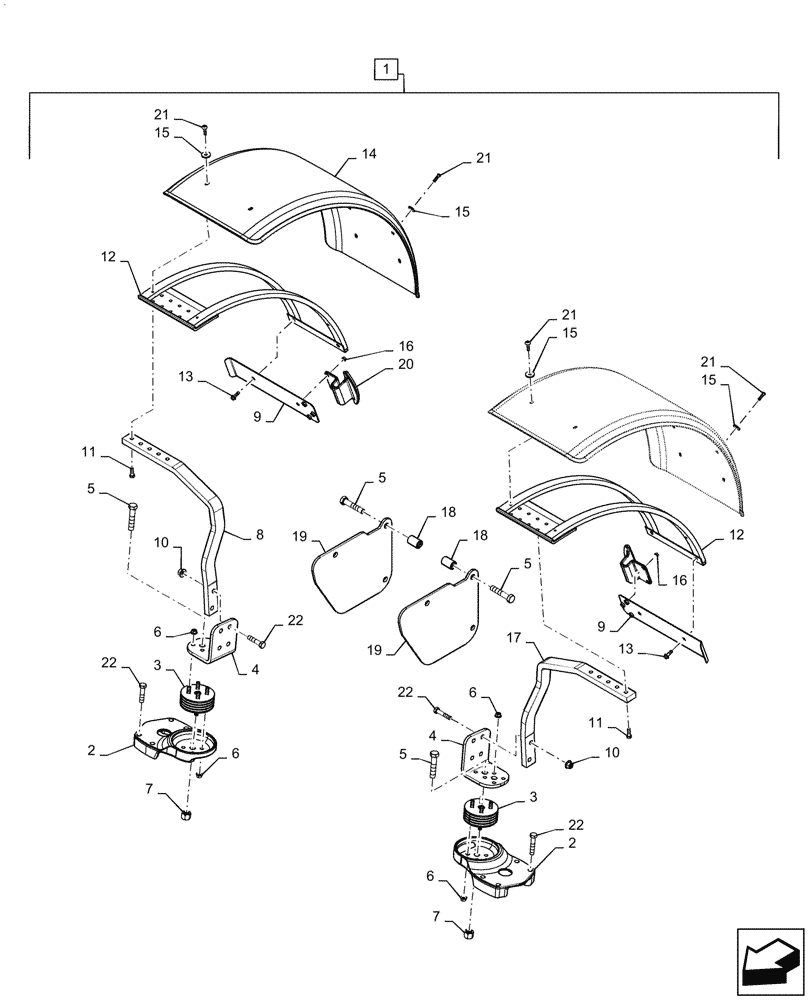

Схема запчастей Case IH MAGNUM 340 - (88.100.90[18]) - FRONT FENDERS & FENDER MOUNTING PARTS - NARROW, CLASS 5 WIDE AXLE (88) - ACCESSORIES
12
21
21
15
4
2
16
22
5
5
3
6
7
18
19
11
4
6
7
15
20
8
12
1
14
5
19
22
5
17
21
15
10
22
10
21
13
11
22
15
9
16
6
2
13
3
9
6
18

Артикул

Название

Примечание

Количество

1

47869151

DIA KIT, TRACTOR

MFD Narrow Fender - CL5 Wide, Incl 2 - 22

1шт.

2

47452984

BRACKET

Fender, Lower, Class 5 Wide

2шт.

3

226690A2

RUBBER BUMPER

Fender Mount

2шт.

4

47783126

BRACKET

Front Fender, Lower, Class 5 Wide

2шт.

5

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

8шт.

6

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

7

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

8

47357552

BAR

Bar, Fender, RH

1шт.

9

47357515

SUPPORT

Fender Bumper Bar

2шт.

10

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

11

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

6шт.

12

87411717

FRAME

Fender Support

2шт.

13

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

14

84283483

FENDER

Narrow, 540mm

2шт.

15

140041

WASHER,M8 x 28mm OD x 3mm Thk

8шт.

16

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

17

47357555

BAR

Bar, Fender, LH

1шт.

18

84580679

SPACER

Fender Bumper Plate

6шт.

19

47777286

PAD

Fender Bumper, Large Tire

2шт.

20

84546378

BUMPER

Fender

2шт.

21

9849829

SCREW,M8 x 1.25 x 30mm

8шт.

22

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

Выбрано товаров: 22
