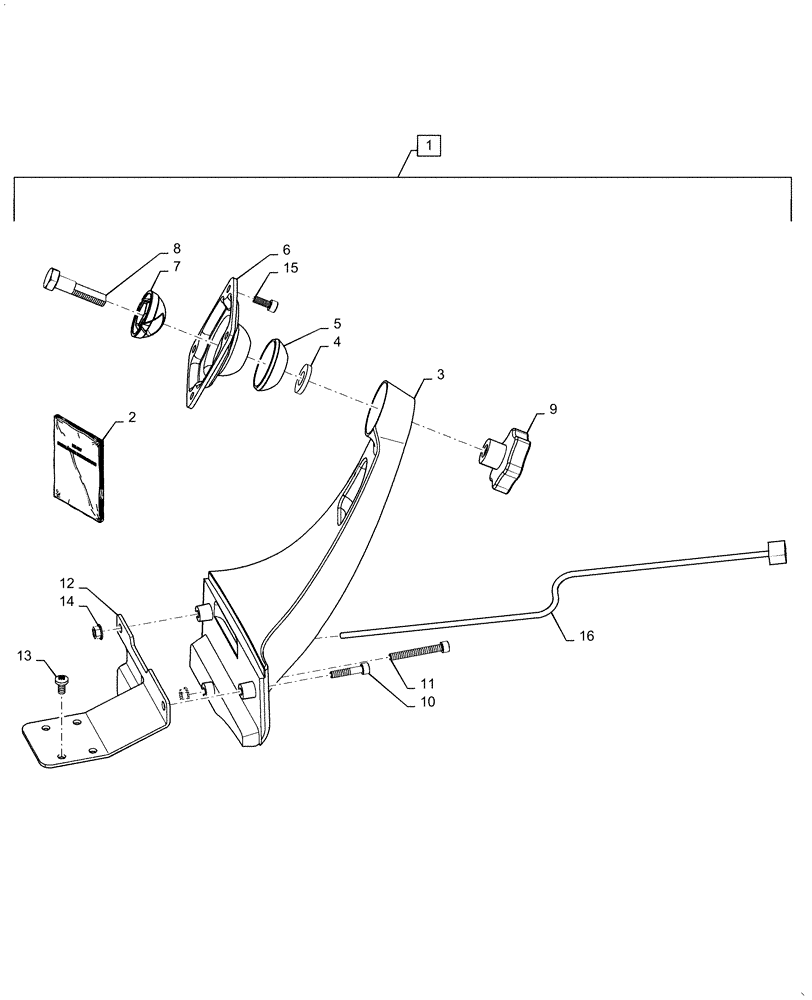

Запчасти Case IH MAGNUM 340 (88.100.90[16]) - DIA KIT, TRACTOR, ARMREST DISPLAY READY, FRED II (88) - ACCESSORIES

1

84401031

KIT

Armrest Display Ready, Fred II; Incl 2 - 16

1шт.

2

47585592

INSTRUCTION

Armrest Display Ready, Fred II

1шт.

3

84369437

MOUNT

Display Support

1шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

5

82039389

CUP WASHER,12.5mm ID x 50mm OD x 17mm Thk, Glass Filled Nylon

1шт.

6

87583911

BASE PLATE

SWCD Ball Joint

1шт.

7

82038414

HALF BALL

1шт.

8

87568603

SPECIAL BOLT,Hex, M12 x 60

D-Section

1шт.

9

87353504

KNOB

M12 x 1.75 Internal Thread

1шт.

10

356464

HEX SOC SCREW,M6 x 50mm, Cl 8.8

M6 x 50 8.8 ZND

1шт.

11

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

12

47513984

BRACKET

GARU Reinforcement

1шт.

13

13276021

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 8.8, Full Thd

4шт.

14

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

15

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

4шт.

16

84228344

HARNESS

SWCD

1шт.
