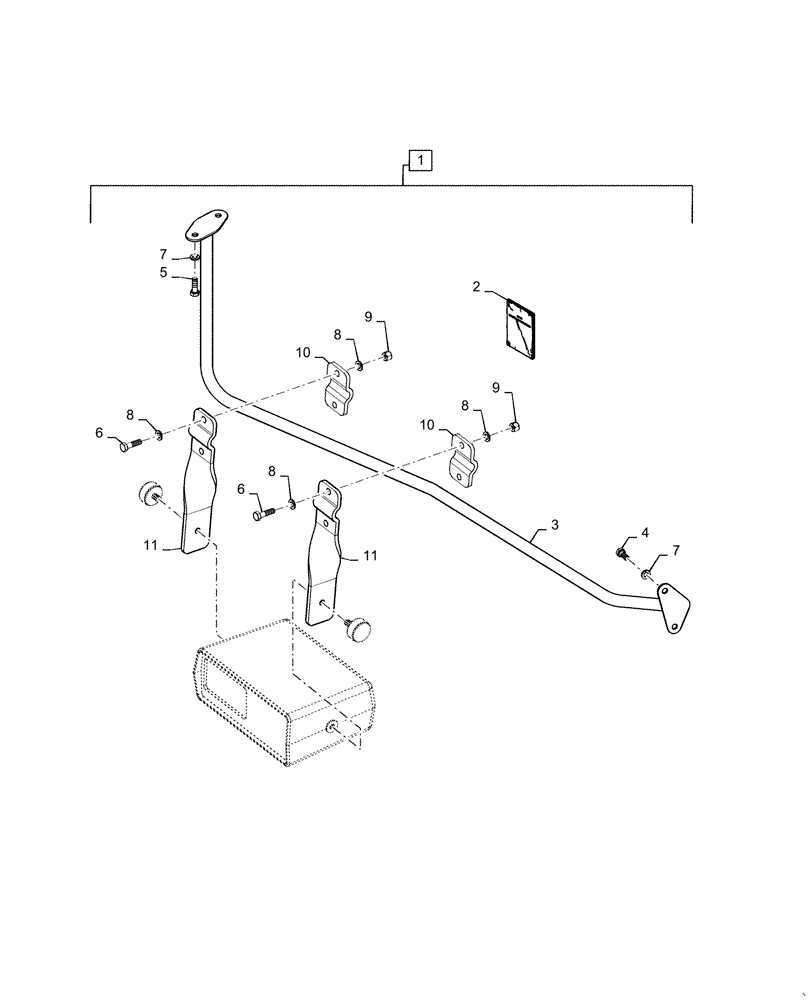

Запчасти Case IH MAGNUM 340 (88.100.90[15]) - DIA KIT, TRACTOR, RH WINDOW, MONITOR MOUNT (88) - ACCESSORIES

1

719602006

DIA KIT, TRACTOR

RH Window Monitor Mount; Incl 2 - 11

1шт.

2

84156782

INSTRUCTION

RH Window Monitor Mount

1шт.

3

301152A3

BAR

Monitor Mount

1шт.

4

514-620

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

514-632

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

7

892-14008

LOCK WASHER,M8

4шт.

8

256402A1

SPECIAL WASHER,9mm ID x 16mm OD x 1.6mm Thk

9 x 17 x 1.6mm

8шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

10

103226A1

CLAMP

Monitor Mount

2шт.

11

103213A1

HOLDER

Monitor Mount

2шт.
