Запчасти Case IH MAGNUM 340 (88.100.90[01]) - DIA KIT, MFD FENDER, NARROW CL 4.75 - 5 AXLE (88) - ACCESSORIES

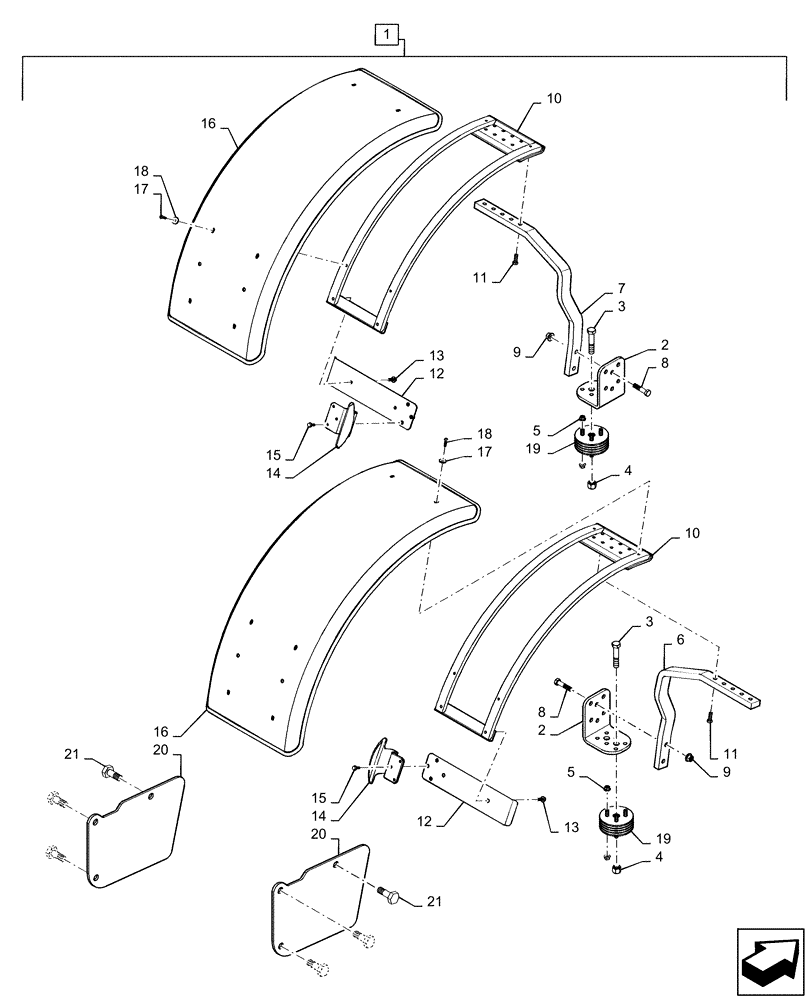

Схема запчастей Case IH MAGNUM 340 - (88.100.90[01]) - DIA KIT, MFD FENDER, NARROW CL 4.75 - 5 AXLE (88) - ACCESSORIES
9
14
6
4
3
11
20
1
19
13
10
12
18
7
10
5
21
13
21
15
16
5
14
11
2
12
19
8
20
15
9
4
8
3
18
16
17
2
17

Артикул

Название

Примечание

Количество

1

84598656

SERVICE KIT

Class 4.75 and 5 Axle, For 480 and Narrower Tires, Incl 2 - 21

1шт.

2

84546385

SUPPORT

Upper Support

2шт.

3

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

4

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

5

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

6

47357552

BAR

Fender Support Bar, RH

1шт.

7

47357555

BAR

Fender Support Bar, LH

1шт.

8

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

9

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

10

87411717

FRAME

Fender Support

2шт.

11

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

6шт.

12

47357515

SUPPORT

Fender Bumper Bar

2шт.

13

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

14

84546378

BUMPER

Fender

2шт.

15

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

16

84283483

FENDER

Narrow

2шт.

17

140041

WASHER,M8 x 28mm OD x 3mm Thk

8шт.

18

9849829

SCREW,M8 x 1.25 x 30mm

8шт.

19

226690A2

RUBBER BUMPER

Isolator, Fender Mount

2шт.

20

84394172

PAD

Fender Bumper

2шт.

21

614-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

6шт.

22

84598671

INSTRUCTION

Installation, Not Illustrated

1шт.
