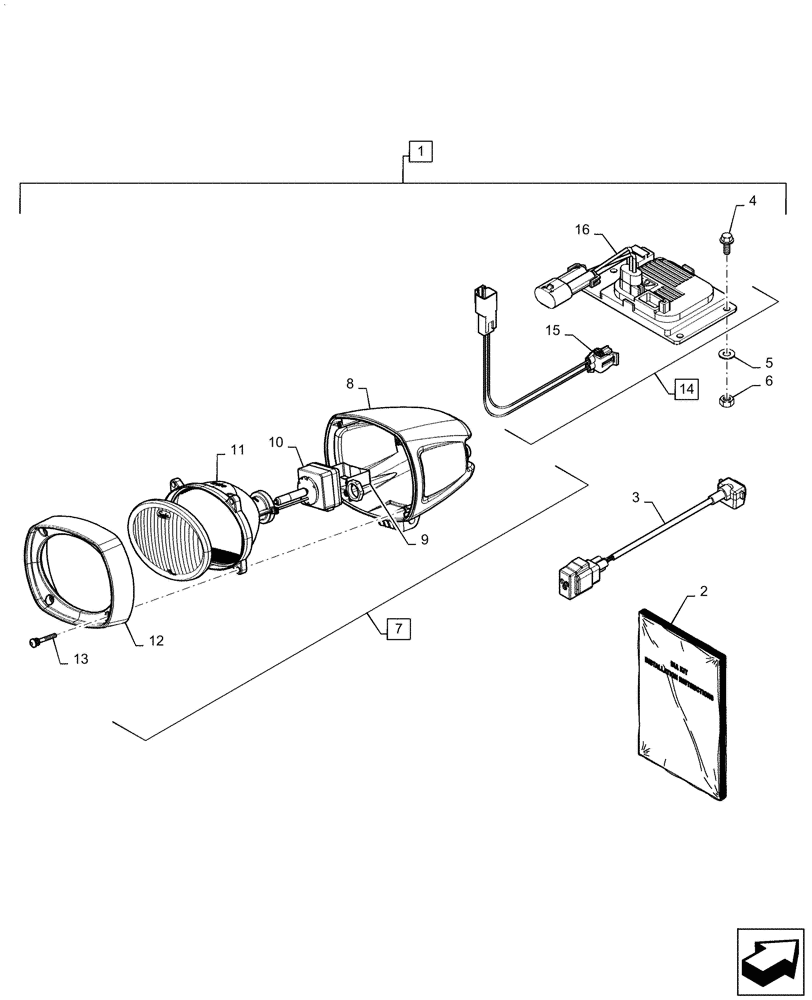

Запчасти Case IH MAGNUM 340 (88.100.55[15]) - DIA KIT, TRACTOR, WORK LIGHT, HID, REAR, BEFORE SEPT 1, 2014 (88) - ACCESSORIES

1

84545686

SERVICE KIT

DIA, Rear HID Worklamp, Incl 2 - 16

1шт.

2

84545948

INSTRUCTION

1шт.

3

87473403

JUMPER

1шт.

4

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

3шт.

5

892-11005

LOCK WASHER,M5

3шт.

6

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

3шт.

7

447754A2

WORK LAMP,HID, 12V, 55W, Clear

Incl 8 - 13

1шт.

8

87282636

HOUSING

HID

1шт.

9

87106287

CLIP

Locking

1шт.

10

87282633

BULB

HID D1S/D1R Xenstar

1шт.

11

87447418

LAMP REFLECTOR

Flood W/Lens

1шт.

12

87282635

BEZEL

W/Foam HID

1шт.

13

87447421

SCREW

O-Ring Assy, 1.25 Inch

4шт.

14

87473404

BALLAST

Jumper and HID Light, Incl 15 - 16

1шт.

15

86993699

WIRE HARNESS

Ballast to Rear Harness

1шт.

16

87475204

BALLAST

Lamp, Work, HID

1шт.
