(88.100.55[06]) - DIA KIT, BUSINESS BAND RADIO ANTENNA CABLE

Запчасти Case IH MAGNUM 340 (88.100.55[06]) - DIA KIT, BUSINESS BAND RADIO ANTENNA CABLE (88) - ACCESSORIES

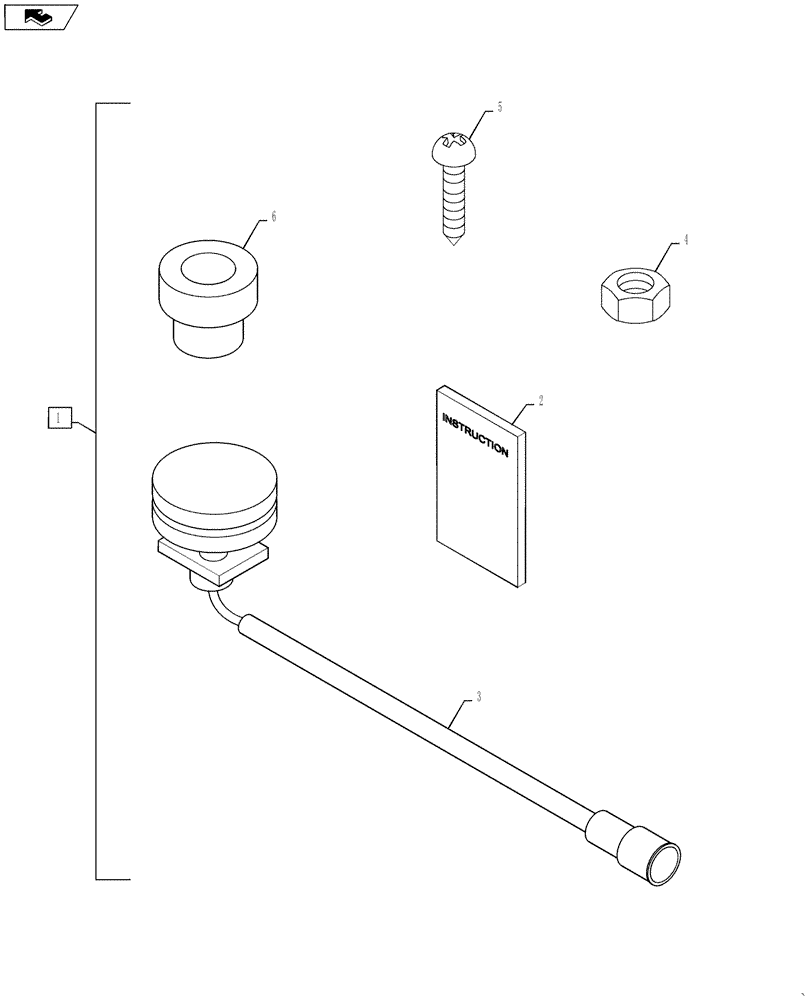

Схема запчастей Case IH MAGNUM 340 - (88.100.55[06]) - DIA KIT, BUSINESS BAND RADIO ANTENNA CABLE (88) - ACCESSORIES
4
1
5
6
home
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719609016

DIA KIT, TRACTOR

Business Band Radio Antenna Cable; Incl 2 - 6

1шт.

2

84156785

INSTRUCTION

Busisness Band Radio Antenna

1шт.

3

404694A2

CABLE

B/B Radio Antenna

1шт.

4

14369474

NUT,M4.2, U, 16.3mm long

8шт.

5

86625223

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

6

182045A1

GROMMET

Split .57OD x .394ID

1шт.
