Запчасти Case IH MAGNUM 340 (88.100.55[04]) - DIA KIT, DUAL BEACON LIGHTS (88) - ACCESSORIES

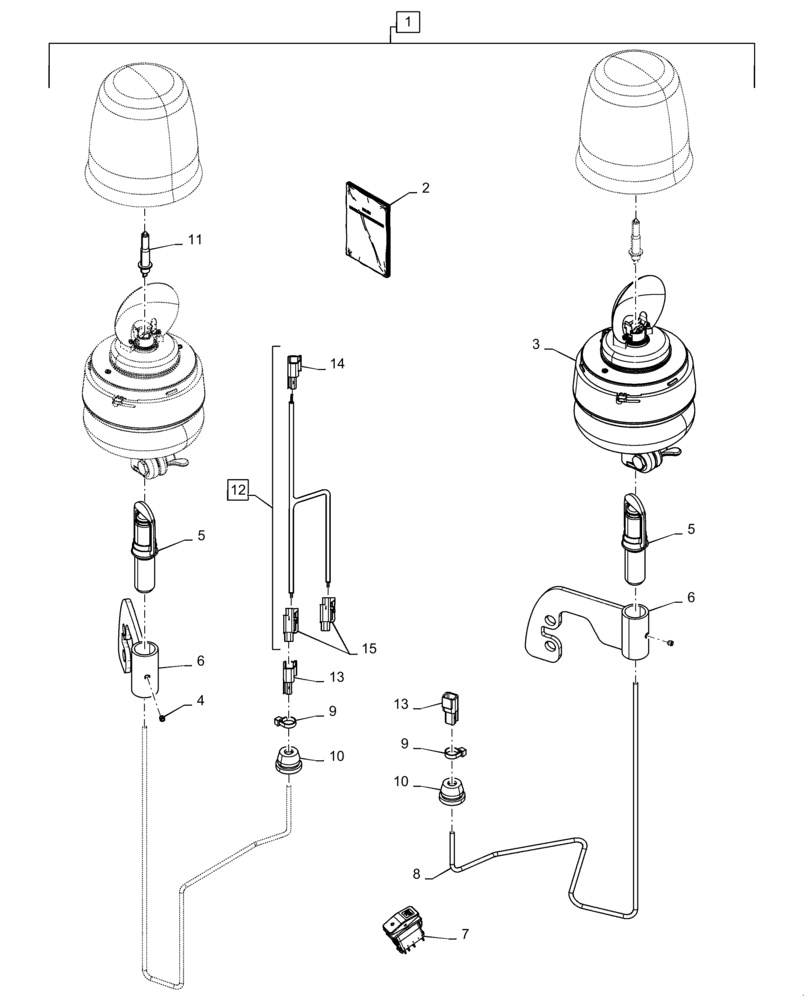

Схема запчастей Case IH MAGNUM 340 - (88.100.55[04]) - DIA KIT, DUAL BEACON LIGHTS (88) - ACCESSORIES
3
10
13
9
6
15
9
4
5
13
14
8
5
6
12
7
2
11
1
10

Артикул

Название

Примечание

Количество

1

47453790

DIA KIT, TRACTOR

Dual Beacon Lights; Incl 2 - 15

1шт.

2

47453815

INSTRUCTION

Dual Beacon Lights, CIH

1шт.

2

47453813

INSTRUCTION

Dual Beacon Lights, NH

1шт.

2

47453812

INSTRUCTION

Dual Beacon Lights, SF

1шт.

3

84337818

BEACON

12V Flexible

2шт.

4

86639305

SET SCREW,M6 x 6mm

2шт.

5

244106A1

ELEC CONNECTOR

2шт.

6

84307951

BRACKET

Beacon

2шт.

7

87414325

SWITCH

Rocker, Beacon Strobe

1шт.

8

47562450

WIRE HARNESS

Beacon Light, Incl 13

2шт.

9

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

6.7 x .18", Nylon, Black

2шт.

10

182045A1

GROMMET

2шт.

11

86616248

BULB,H1, 12V, 55W

2шт.

12

447666A1

HARNESS

Dual Strobe Jumper, Incl 14 - 15

1шт.

13

87696547

ELEC CONNECTOR,Female, 2 Cavities

2шт.

14

222136A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

15

222135A1

CONNECTOR, ELEC

2шт.

Выбрано товаров: 17
