(88.100.39[13]) - DIA KIT, FRONT 3PT WEIGHT BRACKET CARRIER

Запчасти Case IH MAGNUM 340 (88.100.39[13]) - DIA KIT, FRONT 3PT WEIGHT BRACKET CARRIER (88) - ACCESSORIES

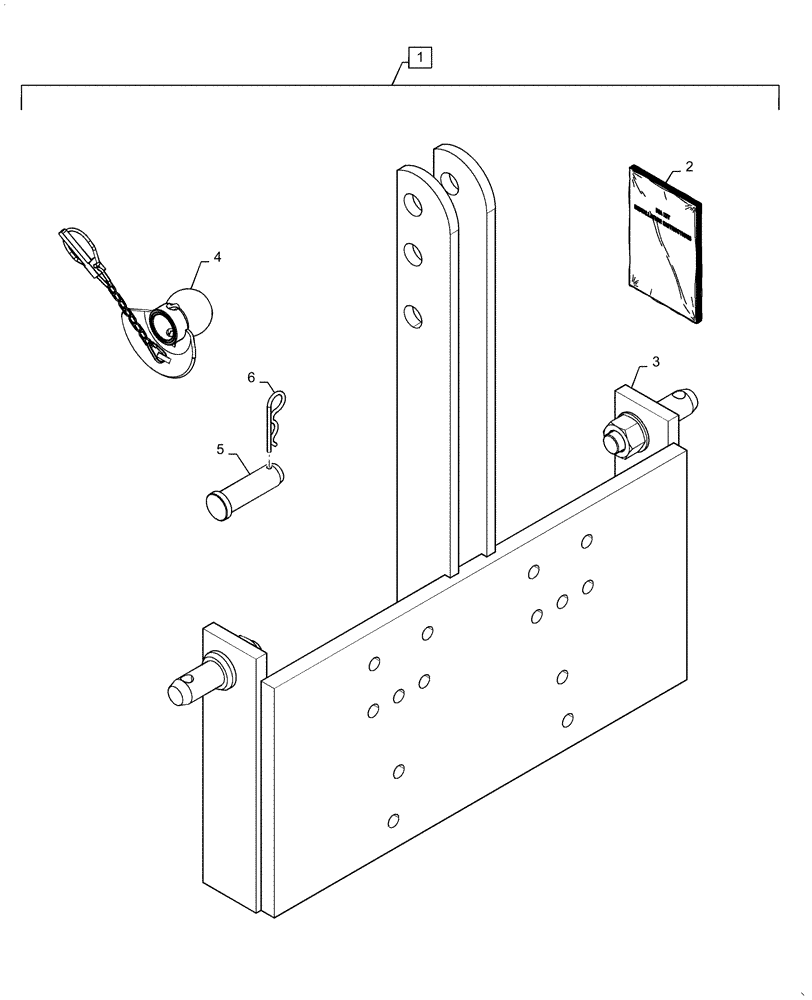

Схема запчастей Case IH MAGNUM 340 - (88.100.39[13]) - DIA KIT, FRONT 3PT WEIGHT BRACKET CARRIER (88) - ACCESSORIES
5
3
2
4
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84328011

DIA KIT, TRACTOR

Front 3PT Weight Bracket Carrier, Incl 2 - 6

1шт.

2

84365561

INSTRUCTION

Front 3PT Weight Bracket Carrier

1шт.

3

84371651

CARRIER

Assy, Front Weights w/ Front Hitch

1шт.

4

381642A1

BALL,Cat 3 Flanged, 37.50mm Dia, Low Sulfur, W/ Chain Assy

Assy

2шт.

5

84378408

PIN,Cat 3, 31.65mm x 113mm

Top Link

1шт.

6

486830R1

COTTER PIN

Hair Pin, Intl, mm

1шт.
