Запчасти Case IH MAGNUM 340 (88.100.39[09]) - DIA KIT, TRACTOR, REAR, WHEEL, WEIGHTS 1 PAIR (1000 LB./453KG.) - THIS KIT ONLY ON 12 WHEEL WEIGHT MOUNTING HOLES. (88) - ACCESSORIES

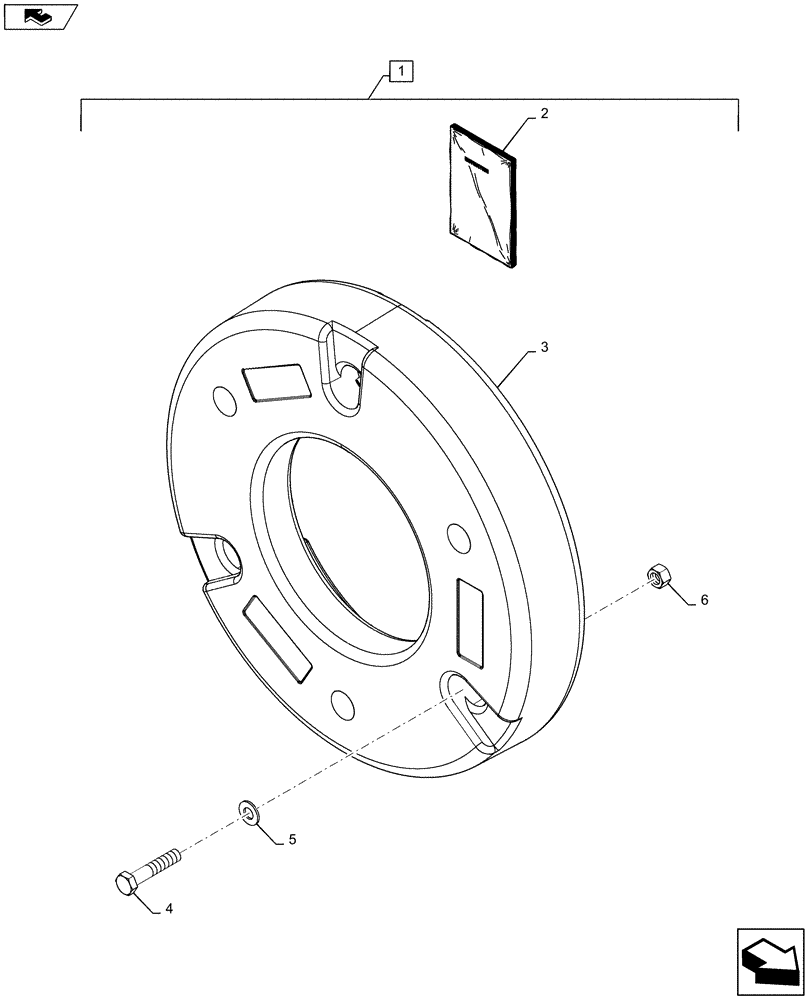

Схема запчастей Case IH MAGNUM 340 - (88.100.39[09]) - DIA KIT, TRACTOR, REAR, WHEEL, WEIGHTS 1 PAIR (1000 LB./453KG.) - THIS KIT ONLY ON 12 WHEEL WEIGHT MOUNTING HOLES. (88) - ACCESSORIES
6
5
4
3
1
2
home

Артикул

Название

Примечание

Количество

1

47439409

DIA KIT, TRACTOR

Rear Wheel Weights 1 Pair @ 1000 lbs Each; Incl 2 - 6

1шт.

This kit can only be used on rims with 12 weight mounting holes (six 16mm and six 20mm)

1шт.

2

47439413

INSTRUCTION

Rear Wheel Weights

1шт.

3

47477483

WHEEL WEIGHT

Rear, 1000 lbs.

2шт.

4

84569666

BOLT,Hex, M20 x 130mm, Cl 10.9

M20 x 130 10.9 ZND

6шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

12шт.

6

832-10420

NUT,M20 x 2.5, Cl 8

6шт.

Выбрано товаров: 7
