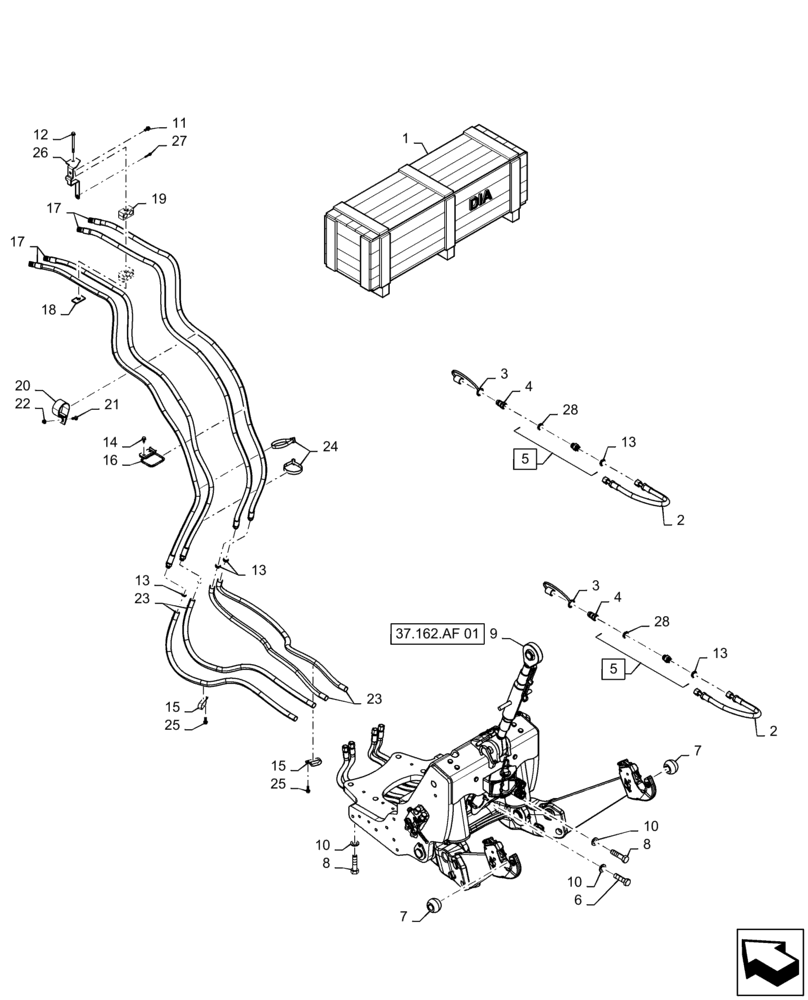

Запчасти Case IH MAGNUM 340 (88.100.37[10]) - DIA KIT, FRONT HITCH ONLY, STANDARD AXLE (88) - ACCESSORIES

1

719664026

DIA KIT, TRACTOR

Front Hitch Only, Standard Axle, Incl 2 - 28

1шт.

2

84394109

HOSE

Jumper, Front Hitch Coupler to Coupler

2шт.

3

86621124

DUST CAP

Jumper Hose

4шт.

4

84265250

QUICK MALE COUPLING

4шт.

5

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl 13, 28

4шт.

6

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

6шт.

7

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

Cat 2

2шт.

8

11125374

BOLT,Hex, M20 x 80mm, Cl 12.9

8шт.

9

47641930

HITCH

Front, 3-Point, 5 Ton, FTPH

1шт.

10

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

14шт.

11

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

12

87301686

BOLT,M8 x 108.1mm, Cl 10.9

1шт.

13

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

14

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

15

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

16

84472201

BRACKET

Front PTO Hose Retaining

1шт.

17

84425850

HOSE

Front Hitch Lift

4шт.

18

384871A1

PLATE

Hose Clamp

1шт.

19

329804A1

CLAMP,22mm ID

Hydraulic Hose

2шт.

20

84584053

STRAP

1шт.

21

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

22

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

23

84518819

PROTECTIVE SLEEVE

Front Hitch Hose

4шт.

24

86991007

CABLE TIE,509mm L

2шт.

25

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

26

47635903

BRACKET

Hydraulic Tubes, Hitch

1шт.

27

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

1шт.

28

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.
