Запчасти Case IH MAGNUM 340 (88.100.37[01]) - DIA KIT, TRACTOR, TOWING, CAT4 HITCH W/QC COMPL-HDRA ROW (88) - ACCESSORIES

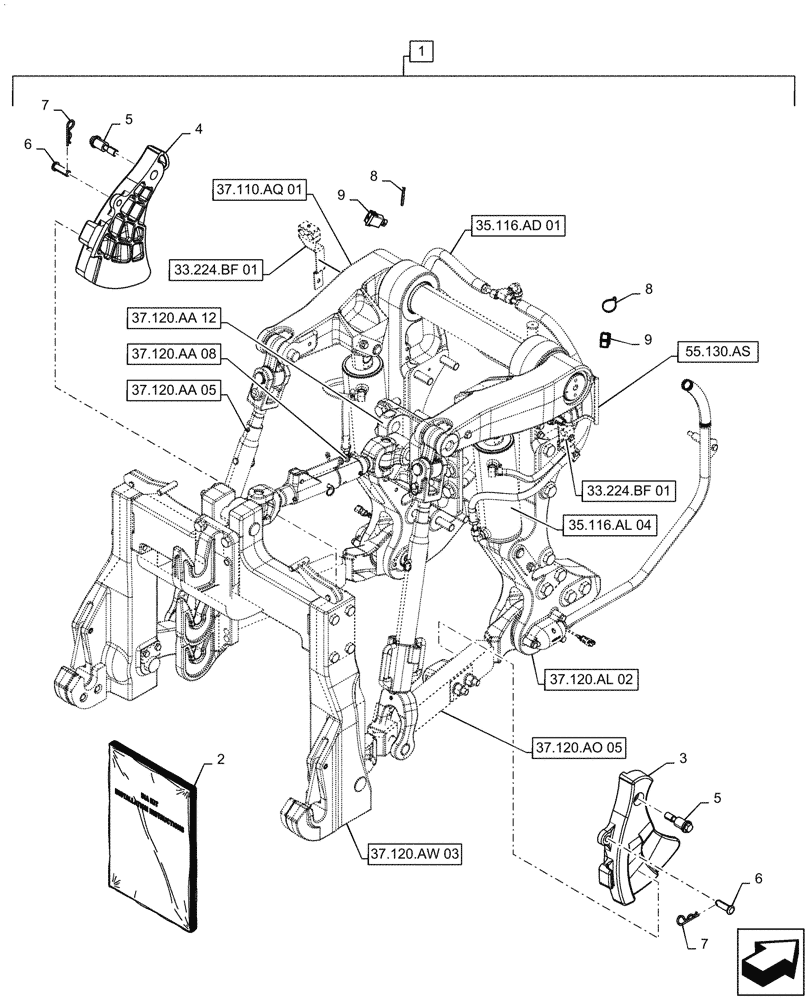

![Схема запчастей Case IH MAGNUM 340 - (88.100.37[01]) - DIA KIT, TRACTOR, TOWING, CAT4 HITCH W/QC COMPL-HDRA ROW (88) - ACCESSORIES](https://partsell.ru/storage/images/caseih/5228462.png)
35.116.al 04
5
2
8
37.120.aw 03
37.120.al 02
35.116.ad 01
5
4
9
37.120.aa 05
6
7
37.120.aa 08
3
8
33.224.bf 01
1
55.130.as
7
33.224.bf 01
37.120.ao 05
37.120.aa 12
9
6
37.110.aq 01
№
Артикул
Название
Примечание
Количество
1
47462482
KIT
Dia Kit, CAT4 Hitch w/QC Compl-Hdra ROW, Incl 2 - 35, Also Incl Figs 88.100.37 (02) and 88.100.37 (03)
1шт.
2
47462484
INSTRUCTION
Sheet, CAT4 Hitch w/ QC Compl-Hdra
1шт.
3
84480904
CAM
RH, Sway Limiter
1шт.
4
84480905
CAM
LH, Sway Limiter
1шт.
6
439-11236
HEADED PIN,3/4" x 2 1/4"
2шт.
7
486830R1
COTTER PIN
2шт.
8
L11541
CABLE TIE,203.2mm L, Nylon
2шт.
9
87452577
SWITCH
Push Button, Hitch Up/Down
2шт.
Выбрано товаров: 9
