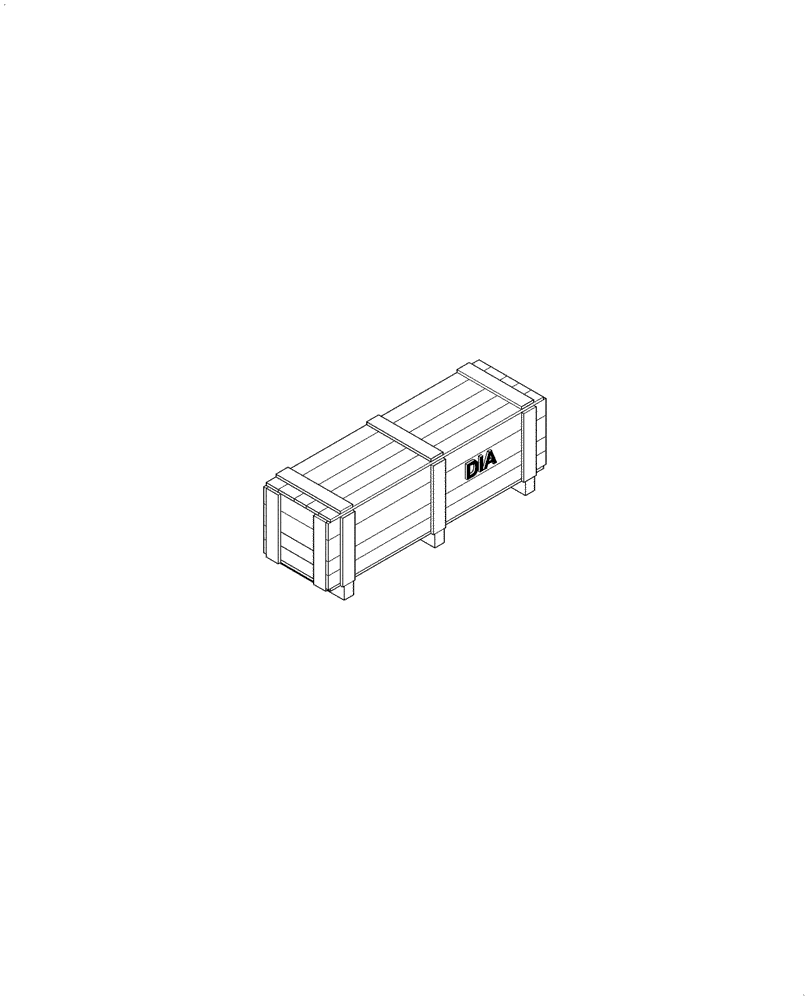

Запчасти Case IH MAGNUM 340 (88.100.35[07]) - DIA KIT, HITCH READY COMPLETION, CAT 4 (88) - ACCESSORIES

1

710829056

DIA KIT, TRACTOR

Hitch Ready Completion, CAT IV, Incl 2 - 29 and Parts on Figures 88.100.35 05 and 06

1шт.

2

87735209

TOP LINK

1шт.

3

232507A4

LOWER LINK

1шт.

4

231298A1

BALL JOINT

2шт.

5

237443A1

BUSHING,34.96mm ID x 38.9mm OD x 50mm L

1шт.

6

283291A4

BUMPER

2шт.

7

238141A2

SHIM

6шт.

8

607-20120

BOLT,Hex, M20 x 120mm, Cl 10.9

2шт.

9

281805A4

SPACER

2шт.

10

87587617

LIFT ARM

2шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

12

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

13

321367A3

PIN ASSY.,34.91mm OD x 133mm L

2шт.

14

414696A1

PIN ASSY.,34.91mm OD x 140mm L

2шт.

15

321365A1

SPACER,13.5mm ID x 22.23mm OD x 12.5mm L

4шт.

16

895-15012

WASHER,M12 x 28 x 2.5

4шт.

17

87499916

CYLINDER,Double Acting, 63.5mm Rod, 260.4mm Stroke

2шт.

18

391415A1

PIN,34.91mm OD x 154mm L

4шт.

19

414675A1

SPACER

4шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

21

806-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

4шт.

22

87746678

CONDUIT,27mm ID x 34mm OD x 478mm L

1шт.

23

87451402

CONDUIT

1шт.

24

87653654

HOSE,12.7mm ID x 1000mm L, SAE 30R7

1шт.

25

87653654

HOSE,12.7mm ID x 1000mm L, SAE 30R7

1шт.

26

214-1308

HOSE CLAMP,#8, 1/2", Spring

4шт.

27

84158093

TEE,M22 Male ORB x 1/2" Hose Barb

1шт.

28

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

2шт.

29

701-905

CAP,13/16" - 16

2шт.
