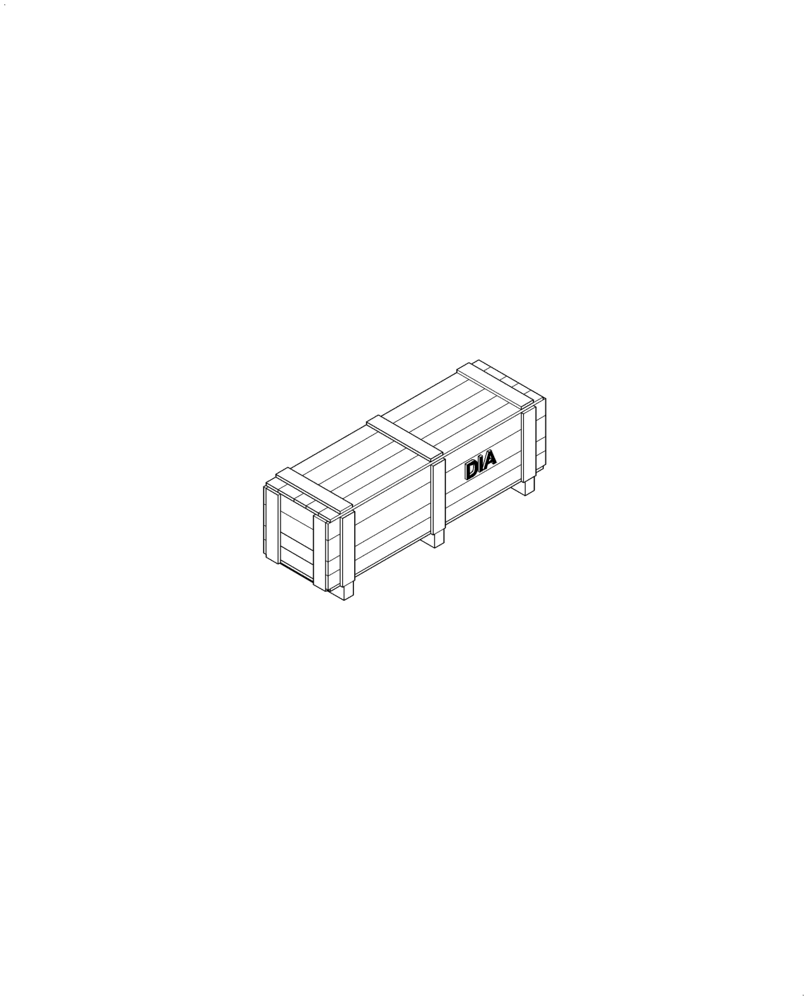

Запчасти Case IH MAGNUM 340 (88.100.35[05]) - DIA KIT, HITCH READY COMPLETION, CAT 4 (88) - ACCESSORIES

1

710829056

DIA KIT, TRACTOR

Hitch Ready Completion, CAT IV, Incl 2 - 37, Continued on Figure 88.100.02(02)

1шт.

2

84365564

INSTRUCTION

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

87449394

BRACKET

1шт.

5

87318116

BRACKET

1шт.

6

329804A1

CLAMP,22mm ID

2шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

8

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

9

384871A1

PLATE

1шт.

10

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

11

84126779

HOSE

1шт.

12

87451399

TUBE

2шт.

13

84126777

HOSE

1шт.

14

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

2шт.

15

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

16

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

17

221579A1

PLUG,M22 x 1.5 ORB

1шт.

18

378929A1

PIN,31.65mm OD x 180mm L

1шт.

19

378932A1

PIN,31.65mm OD x 46mm L

1шт.

20

486830R1

COTTER PIN

2шт.

21

84300123

MOUNT

1шт.

22

84387265

PLATE

1шт.

23

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

24

641-3432

PLUG,M32, Conical

3шт.

25

87499917

ROCKSHAFT

1шт.

26

87572476

WASHER

2шт.

27

84275822

ARM

1шт.

28

84275823

ARM

1шт.

29

101-11350

SNAP RING,#350, Ext

2шт.

30

84365931

BRACKET

2шт.

31

828-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

10шт.

32

896-16024

WASHER,26mm ID x 56mm OD x 6mm Thk

2шт.

33

828-24120

BOLT,Hex, M24 x 3 x 120mm, Cl 10.9

4шт.

34

87681203

SET SCREW,Hex Skt, M12 x 20mm, Cl 8.8, Full Thd, Cup Pt

4шт.

35

379252A2

SHIELD

1шт.

36

179657A2

SPRING

1шт.

37

495-21069

WASHER,5/8"

4шт.
