(88.100.33[02]) - DIA KIT, PNEUMATIC TRAILER BRAKE, HEAVY DUTY REAR AXLE - ASN ZERF08100

Запчасти Case IH MAGNUM 340 (88.100.33[02]) - DIA KIT, PNEUMATIC TRAILER BRAKE, HEAVY DUTY REAR AXLE - ASN ZERF08100 (88) - ACCESSORIES

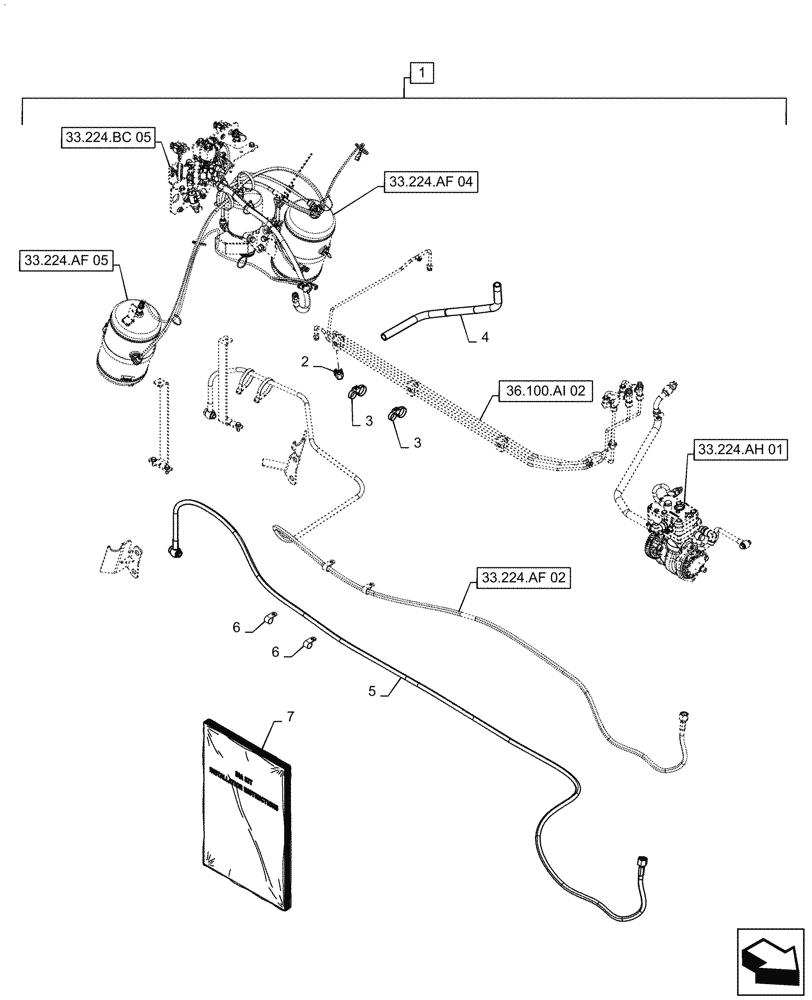

Схема запчастей Case IH MAGNUM 340 - (88.100.33[02]) - DIA KIT, PNEUMATIC TRAILER BRAKE, HEAVY DUTY REAR AXLE - ASN ZERF08100 (88) - ACCESSORIES
36.100.ai 02
33.224.af 04
3
4
3
33.224.ah 01
1
5
6
33.224.af 05
33.224.bc 05
2
6
7
33.224.af 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47685843

DIA KIT, TRACTOR

Pneumatic Trailer Brake, Heavy Duty Rear Axle

1шт.

2

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Tractors With Both Pneumatic and Hydraulic Trailer Brakes

1шт.

3

86991000

CLAMP

Dual

2шт.

4

47777642

HOSE

Air Brake, New Holland Only

1шт.

5

47539309

AIR HOSE

Air Brake Unload Valve Supply, Powershift

1шт.

6

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

Powershift

2шт.

7

47854225

INSTRUCTION

Global Pneumatic Trailer Brake - HD Axle

1шт.
