Запчасти Case IH MAGNUM 340 (88.100.33[01]) - DIA KIT, PNEUMATIC TRAILER BRAKE, STANDARD REAR AXLE - AFTER SEPT 1, 2014 (88) - ACCESSORIES

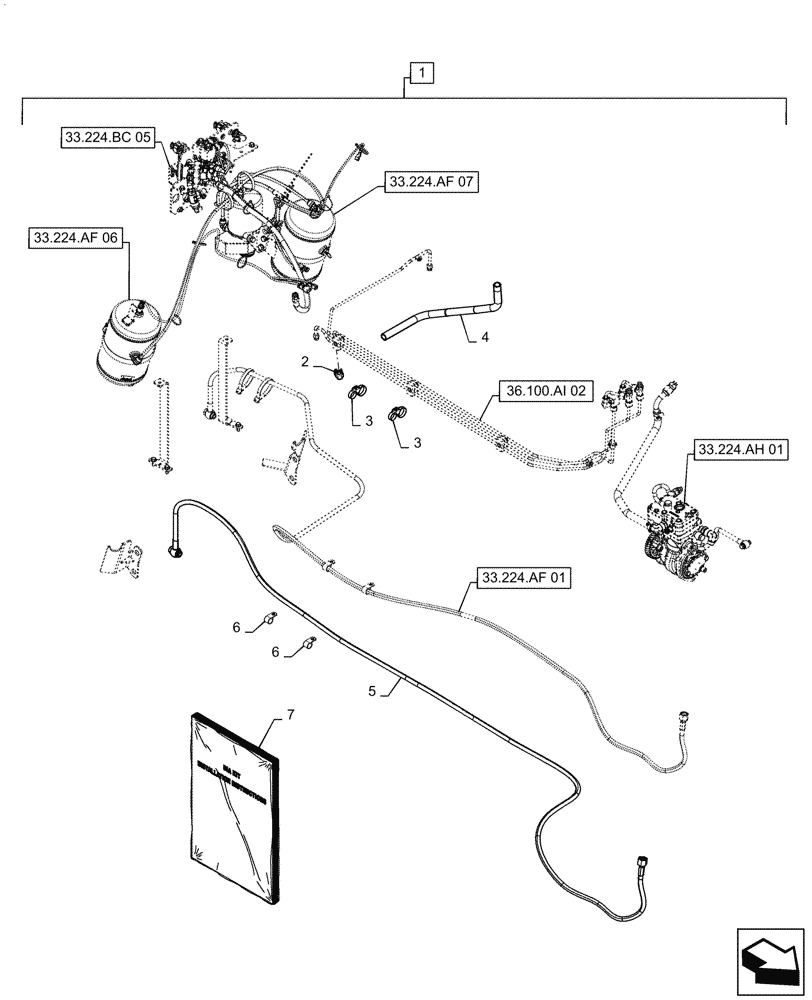

Схема запчастей Case IH MAGNUM 340 - (88.100.33[01]) - DIA KIT, PNEUMATIC TRAILER BRAKE, STANDARD REAR AXLE - AFTER SEPT 1, 2014 (88) - ACCESSORIES
33.224.bc 05
33.224.af 01
1
36.100.ai 02
7
33.224.af 07
6
3
5
33.224.af 06
2
4
3
33.224.ah 01
6

Артикул

Название

Примечание

Количество

1

47685842

DIA KIT, TRACTOR

Pneumatic Trailer Brake, Std Axle, Incl 2 - 59, Start Year: 01-SEP-14

1шт.

2

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Tractors With Both Pneumatic and Hydraulic Trailer Brakes

1шт.

3

86991000

CLAMP

Dual

2шт.

4

47777642

HOSE

Air Brake, New Holland Only

1шт.

5

47539309

AIR HOSE

Air Brake Unload Valve Supply, Powershift

1шт.

6

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

Powershift

2шт.

7

47854224

INSTRUCTION

Global Pneumatic Trailer Brake - Standard Axle

1шт.

Выбрано товаров: 7
