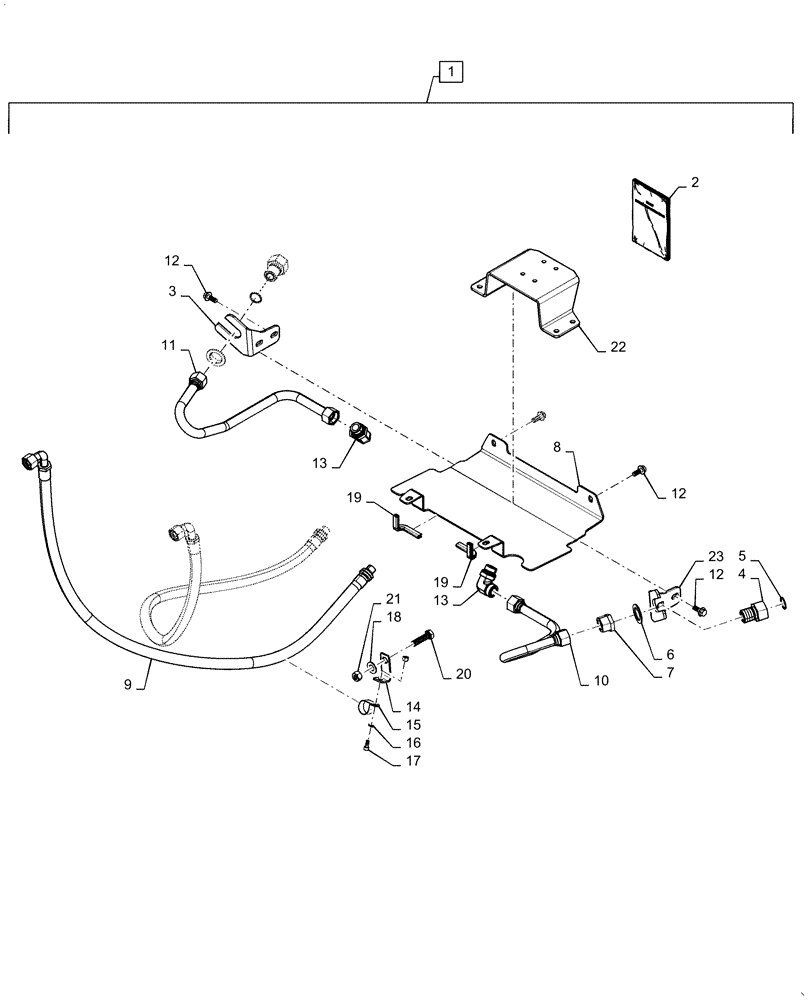

Запчасти Case IH MAGNUM 340 (88.100.31[05]) - DIA KIT, HYDRAULIC FRONT AXLE SADDLE SUSP (88) - ACCESSORIES

1

84402088

DIA KIT, TRACTOR

Hydraulic Front Axle Saddle Suspension - CIH, Incl 2 - 23

1шт.

2

84481507

INSTRUCTION

Hydraulic Front Axle Saddle Supsension

1шт.

3

84256624

PLATE

LH, Suspended Axle Accumulator Mounting

1шт.

4

84259159

ADAPTER

G1 x 1-7/16-12 ORFS

2шт.

5

84160815

SEALING RING

2шт.

6

86632584

WASHER,1.53" ID x 2.25" OD x 0.12" Thk

2шт.

7

701-908

BHD LOCK NUT,1-7/16" - 12

2шт.

8

84484221

PLATE

Suspended Axle Accumulator Mounting

1шт.

9

84256965

HYDRAULIC HOSE

Suspended Axle Accumulator

2шт.

10

84256623

TUBE

RH, Suspended Axle Blkg Valve To Accumulator

1шт.

11

84256622

TUBE

LH, Suspended Axle Blkg Valve To Accumulator

1шт.

12

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

12шт.

13

84283493

FITTING

M33 x 1.5 Male x 1-7/16-12 ORFS

2шт.

14

84259076

BRACKET

Hose Clamp

2шт.

15

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

17

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

18

84151586

WASHER,18.5mm ID x 35mm OD x 2mm Thk

18.5 x 35 x 2mm HTS ZND HDN

2шт.

19

84388204

TRIM

Front Hitch Hoses

2шт.

20

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

2шт.

21

829-1416

NUT,M16, Cl 10

2шт.

22

84252238

BRACKET

Suspended Axle Blkg Valve Support

1шт.

23

84251921

PLATE

RH, Suspended Axle Accumulator Mounting

1шт.
