Запчасти Case IH MAGNUM 340 (10.202.BD[01]) - AIR INTAKE (10) - ENGINE

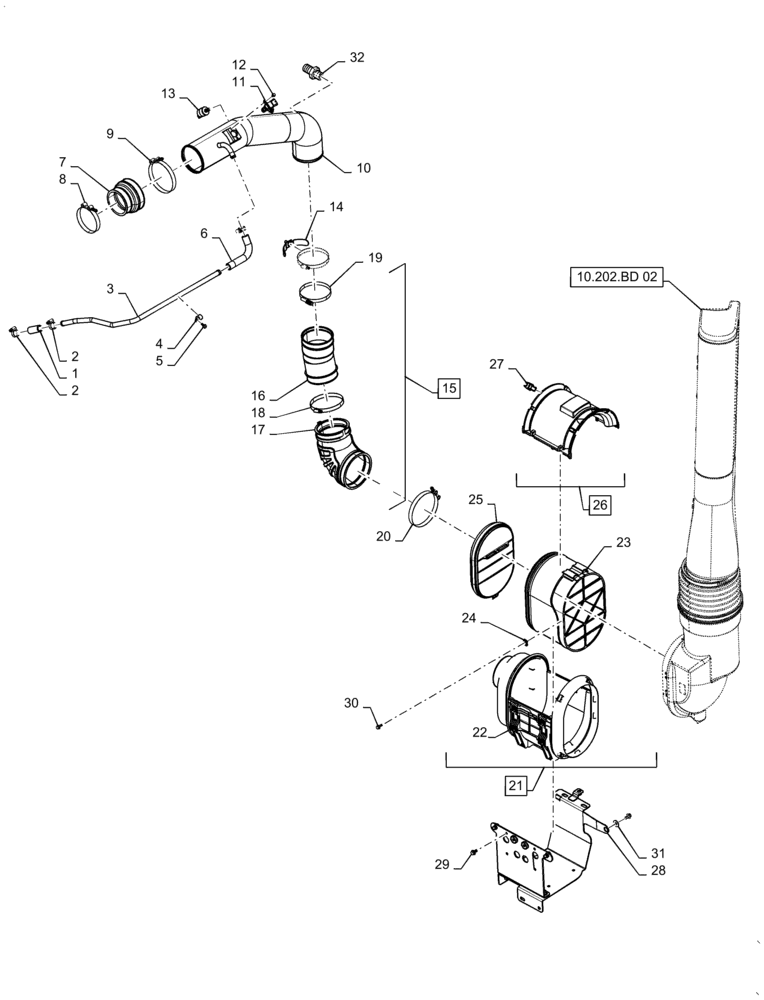

Схема запчастей Case IH MAGNUM 340 - (10.202.BD[01]) - AIR INTAKE (10) - ENGINE
14
18
11
32
23
7
24
26
6
31
19
4
20
3
10
30
25
8
13
9
15
1
2
17
2
28
10.202.bd 02
29
5
27
16
22
21
12

Артикул

Название

Примечание

Количество

1

87486602

HOSE

Breather To Breather

1шт.

2

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

4шт.

3

47428691

TUBE

CCV

1шт.

4

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

5

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

6

47568983

HOSE

CCV

1шт.

7

47436550

INTAKE AIR HOSE

Turbo

1шт.

8

87652891

CLAMP,4.44" - 4.75"

Hose, T-Bolt 4.44/4.75

1шт.

9

84129690

CLAMP,5.44" - 5.75"

Hose, T-Bolt 5.44/5.75

1шт.

10

47568096

AIR INTAKE TUBE

1шт.

11

87482355

SENSOR

Air Intake

1шт.

12

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

2шт.

13

293797A1

RESTRICTION SWITCH

Air Filter

1шт.

14

47569081

CLAMP

Air Intake

1шт.

15

47552209

INTAKE AIR HOSE

Elbow Assy; Incl 16 - 18

1шт.

16

47552210

INTAKE AIR HOSE

Overmold

1шт.

17

47552198

INTAKE AIR HOSE

Elbow

1шт.

18

47558655

HOSE CLAMP,5.25" - 6.12", Worm Gear

5.25/6.125 Contanst Torque

1шт.

19

L124802

COLLAR CLAMP

4 3/4 - 5 5/8

1шт.

20

47380617

HOSE CLAMP,6" - 6.31"

T-Bolt 6.31/6.00

1шт.

21

47565650

AIR CLEANER

Assy; Incl 22 - 27

1шт.

22

47375435

HOUSING

Air Cleaner

1шт.

23

84191182

AIR FILTER,398mm L x 261mm W x 237mm Thk, Paper

Primary

1шт.

24

84402330

CLIP

Threaded

7шт.

25

87356547

AIR FILTER

Secondary

1шт.

26

47618188

COVER ASSY

Air Cleaner; Incl 27

1шт.

27

87495528

LATCH

Air Cleaner Cover

6шт.

28

47556028

BRACKET

LH, Air Filter Support

1шт.

29

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

14шт.

30

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

7шт.

31

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

1шт.

32

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.

Выбрано товаров: 32
