(55.024.AA[07]) - VAR - 429334, 429335 - WIRE HARNESS, SPEED SENSOR, CVT

Запчасти Case IH MAGNUM 340 (55.024.AA[07]) - VAR - 429334, 429335 - WIRE HARNESS, SPEED SENSOR, CVT (55) - ELECTRICAL SYSTEMS

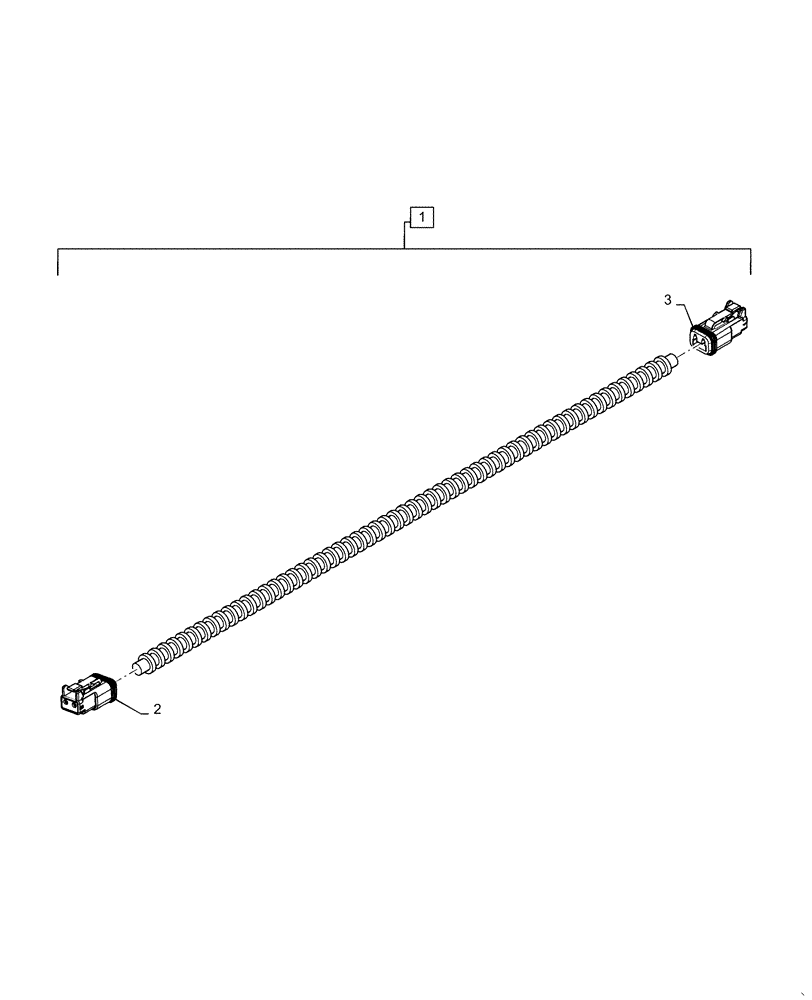

Схема запчастей Case IH MAGNUM 340 - (55.024.AA[07]) - VAR - 429334, 429335 - WIRE HARNESS, SPEED SENSOR, CVT (55) - ELECTRICAL SYSTEMS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87479401

HARNESS

CVT Speed Sensor; Incl 2, 3

1шт.

2

87695582

ELEC CONNECTOR,Female, 2 Pole

X-925 To Hydro Speed Sensor

1шт.

2

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way Plug

1шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

X-926 To Chassis Bulkhead 'RPM'

1шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way Plug

1шт.
