Запчасти Case IH MAGNUM 340 (55.024.AA[06]) - VAR - 429334, 429335 - WIRE HARNESS, TRANSMISSION, CVT (55) - ELECTRICAL SYSTEMS

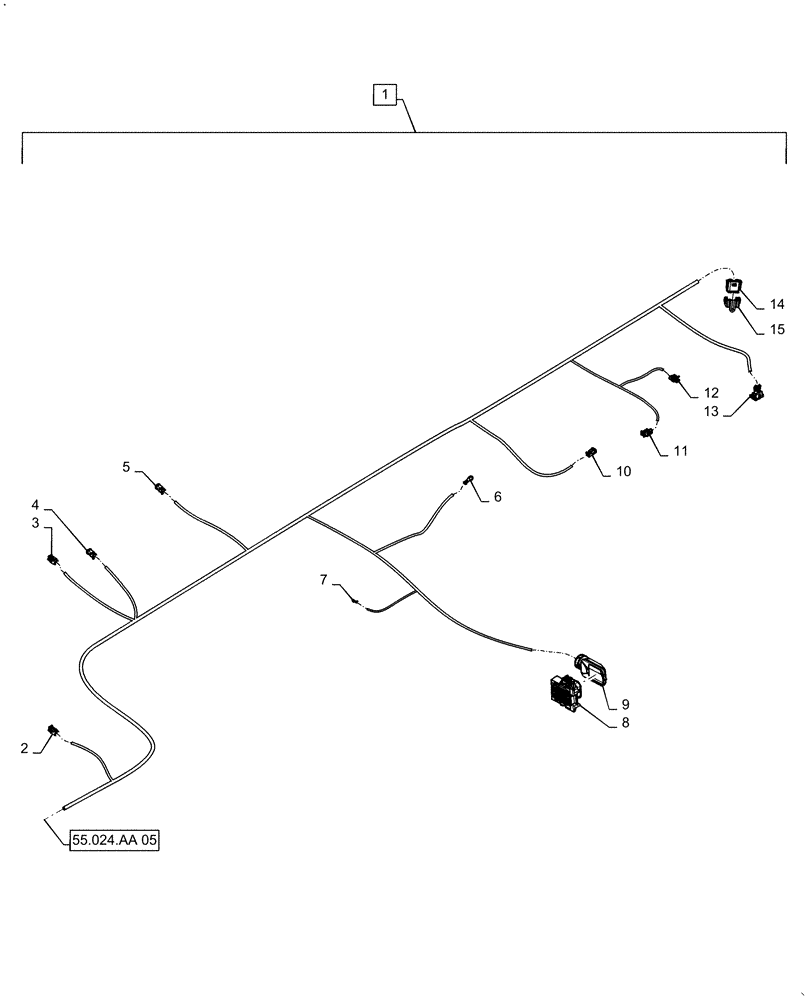

Схема запчастей Case IH MAGNUM 340 - (55.024.AA[06]) - VAR - 429334, 429335 - WIRE HARNESS, TRANSMISSION, CVT (55) - ELECTRICAL SYSTEMS
5
55.024.aa 05
1
12
7
9
13
3
6
8
11
4
14
2
10
15

Артикул

Название

Примечание

Количество

1

84571034

WIRE HARNESS

CVT, Incl 2 - 15

1шт.

2

84078681

WIRE CONNECTOR,Female

X-464 CVT B Side Pressure Sensor

1шт.

2

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Female Metri-Pack .150 Terminal

3шт.

3

84078681

WIRE CONNECTOR,Female

X-463 CVT A Side Pressure Sensor

1шт.

3

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Female Metri-Pack .150 Terminal

3шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

X-108 CVT Pump Swash Sol

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

2шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way Plug

1шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

X-383 CVT Hyd Motor Speed Sensor

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

2шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way Plug

1шт.

6

NSS

NOT SOLD SEPARAT

RING TERMINAL, X-088 Hydraulic Filter Restriction, Incl in 1

1шт.

7

84122130

TERMINAL

X-674 Transmission Ground (Cab Mount)

1шт.

8

84254835

ELEC CONNECTOR

X-026 To Outside Cab Harness

1шт.

8

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Stamped Socket Contact Size 20

48шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

6шт.

8

87694143

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Stamped Socket Contact Size 16

1шт.

8

84068583

PLUG,12 - 16 Ga, White

Sealing Plug No. 12 - 16

9шт.

9

84539347

SHELL

SRK SRS 90-Degree Backshell NW22, NW26

1шт.

10

87695909

ELEC CONNECTOR,Female, 2 Pole

X-377 Oil Cooler Bypass Sol

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

2шт.

10

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way Plug

1шт.

11

82012083

WIRE CONNECTOR,Female

X-032 3/4-Forward Sol

1шт.

11

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

12

82012083

WIRE CONNECTOR,Female

X-033 5/6-Reverse Sol

1шт.

12

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

13

84806091

WIRE CONNECTOR,Female, 3 Pin

X-384 Trans Input Speed Sensor

1шт.

13

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

JPT Recep Contact

3шт.

14

87708149

ELEC CONNECTOR

X-022 To Secondary Steering Harness

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

10шт.

14

84068583

PLUG,12 - 16 Ga, White

Deutsch Sealing Plug No. 12 - 16

2шт.

15

84391169

CAP,Male, 2 Pins

Fit Cap, DT Cap 12/15/18-way Male Rec Hsg

1шт.

15

84068583

PLUG,12 - 16 Ga, White

Sealing Plug No. 12 - 16

1шт.

Выбрано товаров: 33
