Запчасти Case IH MAGNUM 340 (55.024.AA[05]) - VAR - 429334, 429335 - WIRE HARNESS, TRANSMISSION, CVT (55) - ELECTRICAL SYSTEMS

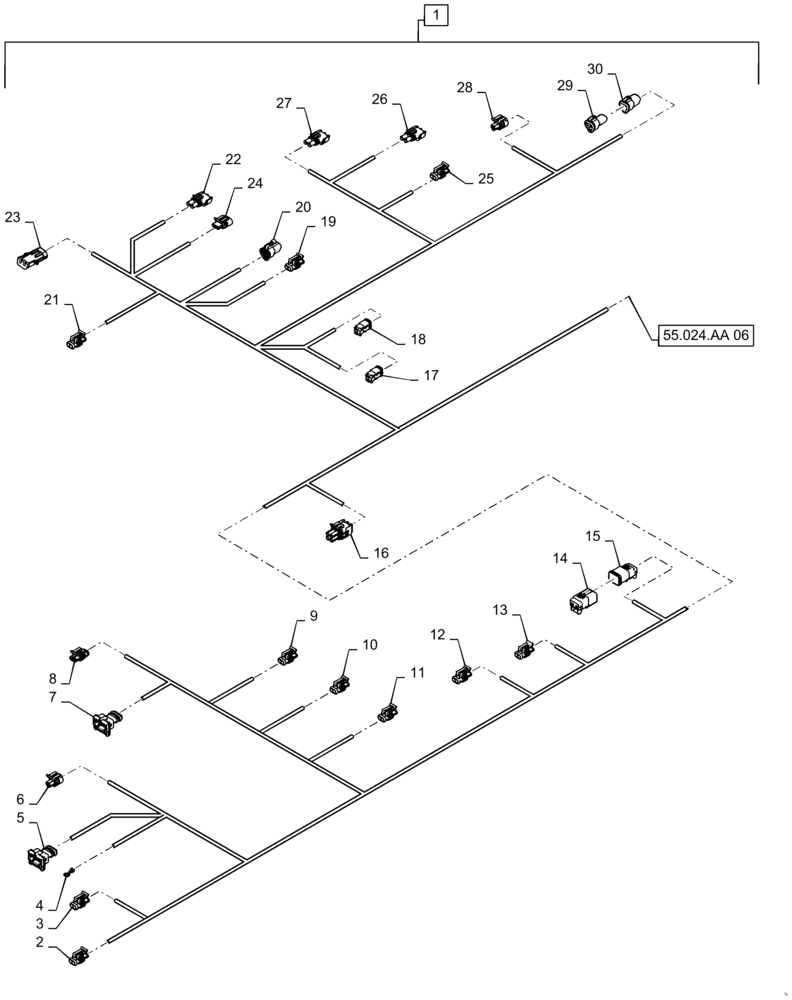

Схема запчастей Case IH MAGNUM 340 - (55.024.AA[05]) - VAR - 429334, 429335 - WIRE HARNESS, TRANSMISSION, CVT (55) - ELECTRICAL SYSTEMS
26
24
9
18
13
1
5
15
4
14
19
28
22
23
20
2
30
27
6
7
25
16
29
17
21
8
55.024.aa 06
3
12
11
10

Артикул

Название

Примечание

Количество

1

84571034

WIRE HARNESS

CVT, Incl 2 - 30

1шт.

2

82012083

WIRE CONNECTOR,Female

X-160 MFD Sol

1шт.

2

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

3

82012083

WIRE CONNECTOR,Female

X-055 Park Brake Sol

1шт.

3

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

4

NSS

NOT SOLD SEPARAT

RING TERMINAL, X-201 Transmission Filter Restriction, Incl in 1

1шт.

5

84607243

ELEC CONNECTOR,Female, 2 Cavities

X-043 Trans Oil Temp Sensor

1шт.

5

87702681

TERMINAL

JPT Recep Contact

2шт.

6

84078681

WIRE CONNECTOR,Female

X-046 System Pressure

1шт.

6

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Female Metri-Pack .150 Terminal

3шт.

7

84607243

ELEC CONNECTOR,Female, 2 Cavities

X-084 Trans Oil Sump Temperature Sensor

1шт.

7

87702681

TERMINAL

JPT Recep Contact

2шт.

8

82012083

WIRE CONNECTOR,Female

X-036 Lo/C1 Clutch Sol

1шт.

8

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

9

82012083

WIRE CONNECTOR,Female

X-037 Mid/C2 Clutch Sol

1шт.

9

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

10

82012083

WIRE CONNECTOR,Female

X-038 High/C3 Clutch Sol

1шт.

10

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

11

82012083

WIRE CONNECTOR,Female

X-041 C4 Clutch Sol

1шт.

11

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

12

82012083

WIRE CONNECTOR,Female

X-072 Trans Output Speed Sensor

1шт.

12

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

13

82012083

WIRE CONNECTOR,Female

X-378 Accumulator Bypass Sol

1шт.

13

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

X-367 Euro/NA On/Off Park Brake Sol

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

2шт.

15

87695584

CONTACT HOUSING,Male, 2 Cavities

Dust Cap, Deutsch DT Series 2-way Tab Hsg

1шт.

15

84068583

PLUG,12 - 16 Ga, White

Deutsch Sealing Plug No. 12 - 16

2шт.

15

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way Plug

1шт.

16

87692862

ELEC CONNECTOR

X-068 Radar

1шт.

16

87692880

CABLE TERMINAL

Male Weather Pack I Terminal

4шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

X-080 EDC Lower Solenoid

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

2шт.

17

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way Plug

1шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

X-081 EDC Raise Solenoid

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

2шт.

18

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way Plug

1шт.

19

82012083

WIRE CONNECTOR,Female

X-158 Rear Diff Sol

1шт.

19

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

20

87695580

ELEC CONNECTOR,Female, 3 Pole

X-153 Right Hand Draft

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

3шт.

20

84074639

LOCKING TAB,Wedge Lock

Wedge Lock 3-way Plug

1шт.

21

82012083

WIRE CONNECTOR,Female

X-159 Rear PTO Sol

1шт.

21

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

22

87692855

CONTACT HOUSING,Male, 2 Cavities

X-070 Trailer Brake Prefill Sol

1шт.

22

87692880

CABLE TERMINAL

Male Weather Pack I Terminal

1шт.

22

87692882

ELEC. TERMINAL PIN

Male Weather Pack Terminal

1шт.

23

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-318 Trailer Brake Solenoid

1шт.

23

87692880

CABLE TERMINAL

Male Weather Pack I Terminal

2шт.

24

198550A1

CONNECTOR, ELEC

X-155 Rockshaft Pot

1шт.

24

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Female Metri-Pack .150 Terminal

3шт.

25

82012083

WIRE CONNECTOR,Female

X-360 Brake Lube Solenoid

1шт.

25

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

26

82012093

WIRE CONNECTOR

X-145 PTO Shaft Speed

1шт.

26

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Female Metri-Pack .150 Terminal

2шт.

27

82012093

WIRE CONNECTOR

X-449 PTO Small Shaft Sw

1шт.

27

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Female Metri-Pack .150 Terminal

2шт.

27

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Female Metri-Pack .150 Terminal

3шт.

28

84078681

WIRE CONNECTOR,Female

X-461 CVT Left Brake Pressure Transducer

1шт.

29

87695580

ELEC CONNECTOR,Female, 3 Pole

X-154 Left Hand Draft

1шт.

29

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

3шт.

30

87695723

ELEC CONNECTOR,Male , 3 Pole

Dust Cap, DT Series 3-way Tab Hsg

1шт.

30

84068583

PLUG,12 - 16 Ga, White

Deutsch Sealing Plug No. 12 - 16

3шт.

30

84074639

LOCKING TAB,Wedge Lock

Wedge Lock 3-way Plug

1шт.

Выбрано товаров: 64
