Запчасти Case IH MAGNUM 340 (55.014.AA[01]) - WIRE HARNESS, BATTERY TO GRID HEATER RELAY AND ALTERNATOR (55) - ELECTRICAL SYSTEMS

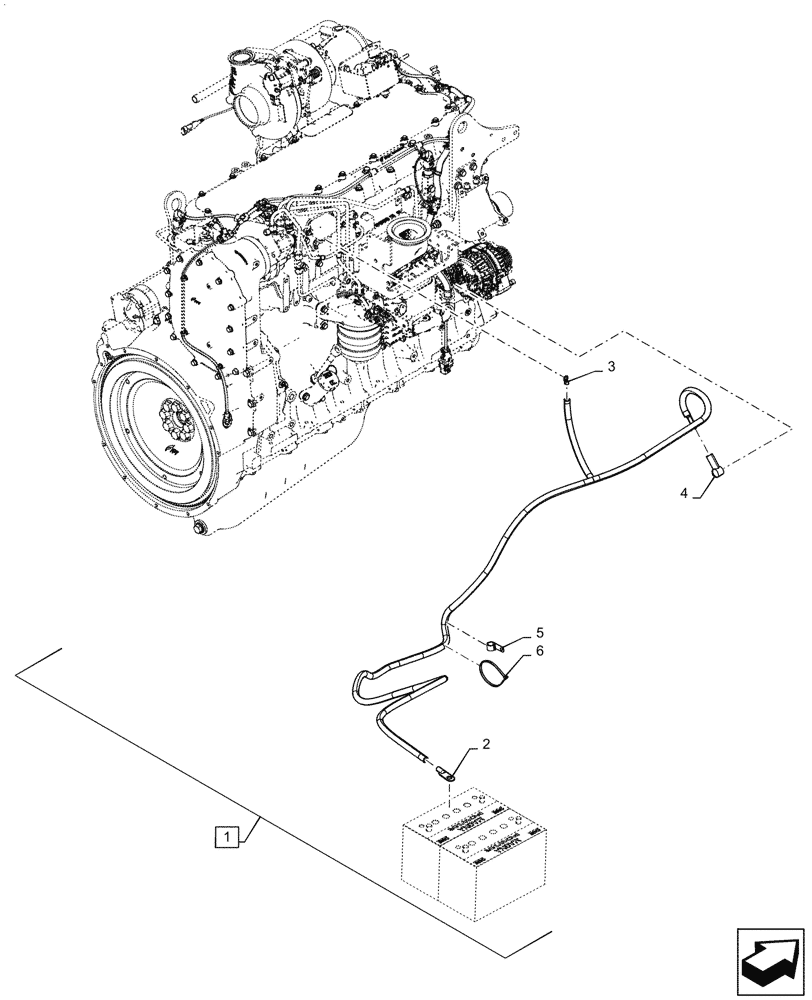

Схема запчастей Case IH MAGNUM 340 - (55.014.AA[01]) - WIRE HARNESS, BATTERY TO GRID HEATER RELAY AND ALTERNATOR (55) - ELECTRICAL SYSTEMS
2
6
5
3
1
4

Артикул

Название

Примечание

Количество

1

47943689

POS BATTERY CABLE

Alternator and Grid Heater Relay, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

TERMINAL, M8 Ring, X-564 Battery Positive; Incl in 1

1шт.

2

47362076

BOOT

1шт.

3

NSS

NOT SOLD SEPARAT

TERMINAL, M6 Ring, X-572 Grid Heater Relay; Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

TERMINAL, M8 Ring, X-571 Alternator; Incl in 1

1шт.

5

516-22158

CLAMP,J, 11/16" Insul, 5/16" Bolt

1шт.

6

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

Выбрано товаров: 7
