Запчасти Case IH MAGNUM 340 (50.100.AQ[01]) - AIR CONDITIONING, AIR FILTER (50) - CAB CLIMATE CONTROL

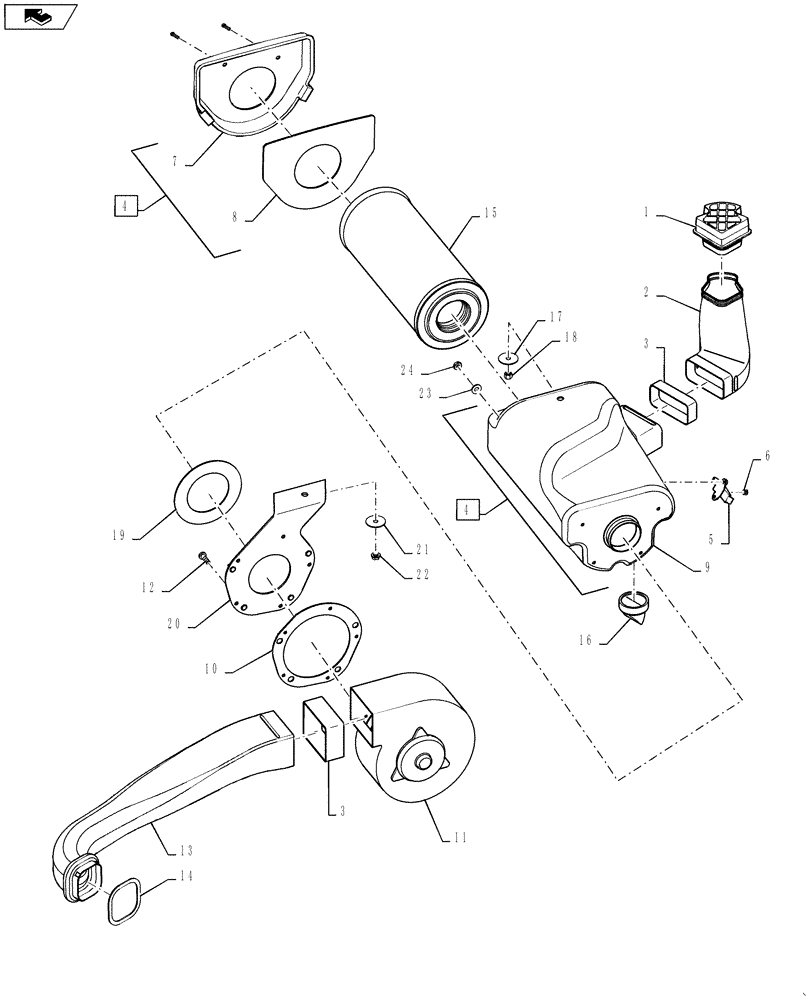

Схема запчастей Case IH MAGNUM 340 - (50.100.AQ[01]) - AIR CONDITIONING, AIR FILTER (50) - CAB CLIMATE CONTROL
24
14
20
5
15
22
11
home
1
10
4
7
12
21
3
23
18
4
17
9
13
16
6
8
2
3
19

Артикул

Название

Примечание

Количество

1

255236A3

GROMMET

A-Post Air Intake

1шт.

2

255237A2

AIR DUCT

A-Post to Filter Housing

1шт.

3

280951A2

SEAL

Intake Duct to Filter Housing

2шт.

4

310687A3

CAB FILTER

Air Assy; Incl 5 - 9

1шт.

5

240748A2

LATCH

Draw

2шт.

6

151-539

RIVET,Pop, 3/16" x .450"

4шт.

7

255218A4

FILTER COVER

1шт.

8

259339A3

GASKET

Filter Housing Cover

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING; Incl in 4

1шт.

10

255220A2

GASKET,4.8mm Thk

Bracket to Blower

1шт.

11

87107380

BLOWER

Assy, Pressurized

1шт.

12

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

5шт.

13

87538496

DUCT

Blower Exhaust

1шт.

14

280510A2

FOAM INSULATION

Intake Duct to Box

1шт.

15

87684088

CAB FILTER,CAB

Foam Recirculation

1шт.

15

87267363

AIR FILTER,Cab Charcoal Recirculation

Charcoal

1шт.

16

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

17

495-81121

WASHER,.344" x 1 1/2" x .060"

1шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

19

255219A2

GASKET

Bracket to Housing

1шт.

20

252244A3

BRACKET

Blower Mounting

1шт.

21

495-81121

WASHER,.344" x 1 1/2" x .060"

1шт.

22

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

23

495-31022

WASHER,#10

4шт.

24

225-14210

NUT,#10-32

4шт.

Выбрано товаров: 25
