Запчасти Case IH MAGNUM 340 (35.300.AB[02]) - OIL COOLER AND PLUMBING - CVT (35) - HYDRAULIC SYSTEMS

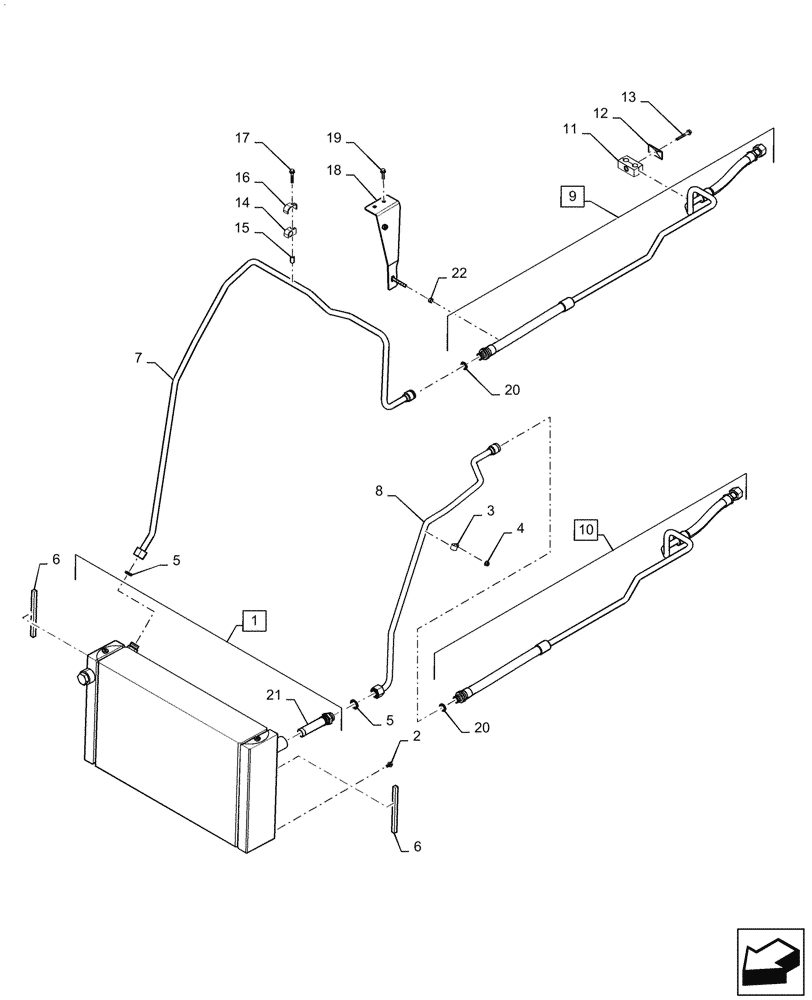

Схема запчастей Case IH MAGNUM 340 - (35.300.AB[02]) - OIL COOLER AND PLUMBING - CVT (35) - HYDRAULIC SYSTEMS
21
22
14
11
19
2
20
18
12
17
6
13
8
1
16
6
15
20
10
5
5
4
9
3
7

Артикул

Название

Примечание

Количество

1

47612642

OIL COOLER

700BH, 140mm Deep, Incl 21

1шт.

2

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

3

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

5

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

6

84536513

SEALING STRIP,200mm L

Cooler

2шт.

7

84575887

HYD TUBE

Supply Front

1шт.

8

47640103

HYD TUBE

Return Front

1шт.

9

47460256

HYD TUBE

Supply Center; Incl 20

1шт.

10

47460255

HYD TUBE

Return Center; Incl 20

1шт.

11

47472043

CLAMP

2 Hole 19.05-19.05mm Dia Ribbed

4шт.

12

1347127C1

PLATE

Tube Clamp

4шт.

13

844-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

1шт.

14

84172526

CLAMP

Tube Single

1шт.

15

84172485

SPACER

Tube Clamp

1шт.

16

84172254

PLATE

Tube Clamp

1шт.

17

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

18

47556722

BRACKET

Transmission Cooler Tubes

1шт.

19

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

20

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

2шт.

21

47608879

FILTER STRAINER

Oil Cooler

1шт.

22

48052841

CAP

Nut, M8

1шт.

Выбрано товаров: 22
