Запчасти Case IH MAGNUM 340 (35.204.BV[01]) - MANIFOLD VALVE ASSY - BSN ZERF05105 (35) - HYDRAULIC SYSTEMS

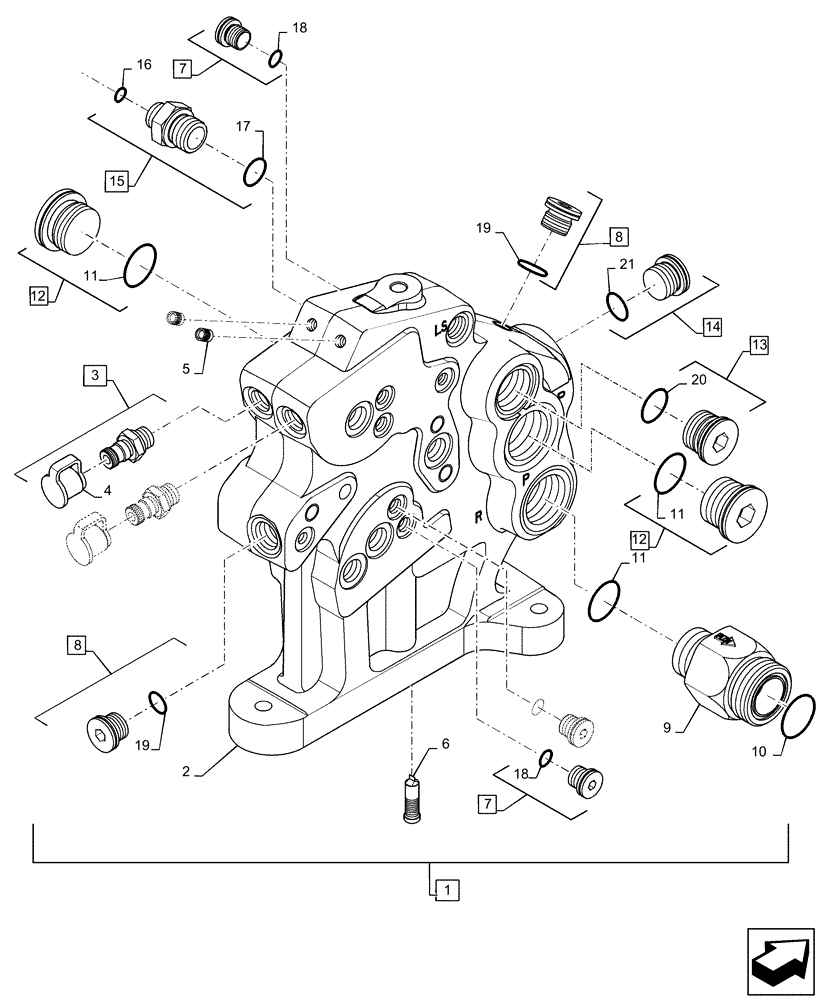

Схема запчастей Case IH MAGNUM 340 - (35.204.BV[01]) - MANIFOLD VALVE ASSY - BSN ZERF05105 (35) - HYDRAULIC SYSTEMS
3
11
19
21
20
9
11
7
13
4
5
18
8
7
2
15
18
14
16
17
6
8
11
12
10
19
1
12

Артикул

Название

Примечание

Количество

1

87659941

MANIFOLD VALVE

Inlet/Outlet, Incl 2 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

BODY Incl in 1

1шт.

3

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Incl 4

2шт.

4

143349A1

DUST CAP

1шт.

5

353828A1

PLUG

Expansion

2шт.

6

326965A1

FILTER STRAINER,10.46mm OD x 33.7mm L, 140 Micron

1шт.

7

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 18

3шт.

8

221578A1

PLUG,M18 x 1.5 ORB

Incl 19

2шт.

9

254851A1

CHECK VALVE

1шт.

10

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

11

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

12

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Incl 11

2шт.

13

221580A1

PLUG,M27 x 2 ORB

Incl 20

1шт.

14

221579A1

PLUG,M22 x 1.5 ORB

Incl 21

1шт.

15

84125420

ORIFICE

Incl 16, 17

1шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

18

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

19

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

20

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

21

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
