Запчасти Case IH MAGNUM 340 (33.224.BC[05]) - TRAILER BRAKE VALVE, PNEUMATIC - EXCEPT ITALY (33) - BRAKES & CONTROLS

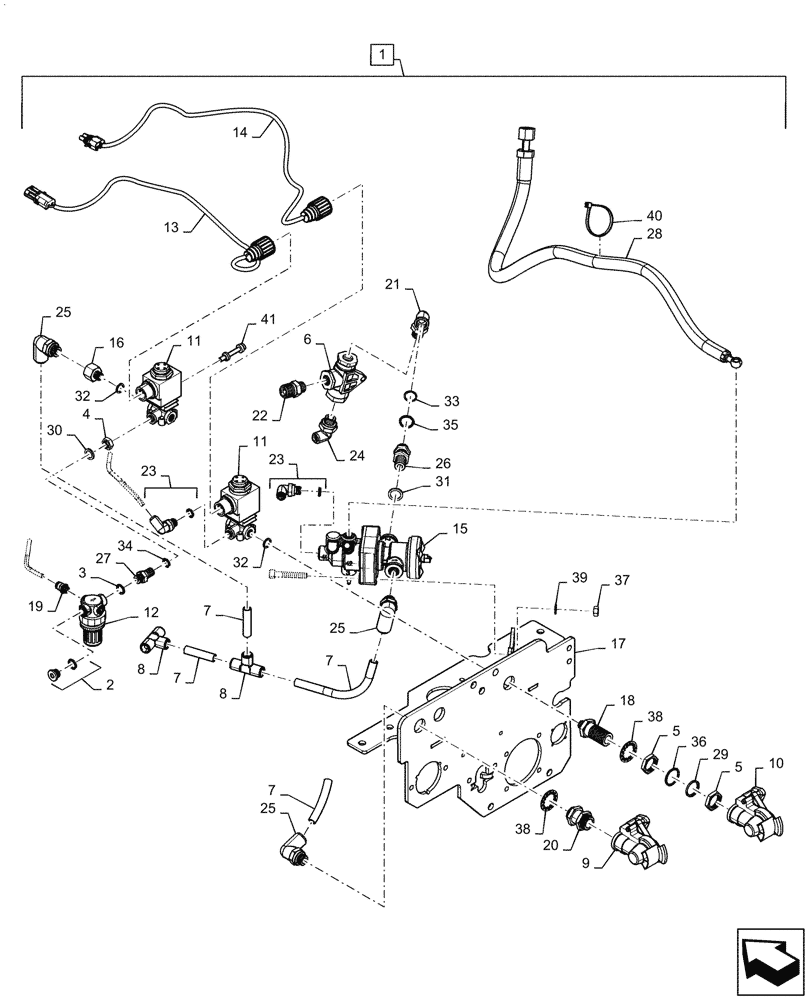

Схема запчастей Case IH MAGNUM 340 - (33.224.BC[05]) - TRAILER BRAKE VALVE, PNEUMATIC - EXCEPT ITALY (33) - BRAKES & CONTROLS
3
11
31
16
20
38
18
17
13
23
1
28
4
19
30
32
21
24
38
2
6
22
39
8
41
8
25
11
7
15
5
5
23
25
34
26
9
7
36
37
33
12
35
14
7
10
27
40
25
29
32
7

Артикул

Название

Примечание

Количество

1

47964891

BRAKE VALVE

Air Brake, Pneumatic, Incl 2 - 41

1шт.

2

47766126

PLUG

0.25

1шт.

3

47766127

SEAL

1шт.

4

10399555

NUT

M12

1шт.

5

10726821

NUT,Thin, M22 x 1.5, Cl 05

2шт.

6

298162A1

VALVE

Shuttle

1шт.

7

47766073

TUBE

12mm OD Black Nylon, Cut To Length

1шт.

8

47766077

TEE

12mm Pushfit

2шт.

9

47766096

COUPLING

M22 Palm Coupling, Service

1шт.

10

47766100

COUPLING

M22 Palm Coupling, Emergency

1шт.

11

47766103

BRAKE VALVE

3/2 Valve, 12V Normally Open

2шт.

12

47766105

VALVE

Inshot Adjuster

1шт.

13

47766106

WIRE HARNESS

Inshot, Prefill

1шт.

14

47766107

WIRE HARNESS

Handbrake, Air Brake

1шт.

15

47766108

CONTROL VALVE

Trailer Brake Control

1шт.

16

47766109

ADAPTER

M12 - M16

1шт.

17

47947159

BRACKET

MTV and RC

1шт.

18

47766111

UNION

M12 - M22

1шт.

19

47766112

ADAPTER

0.125 - 6mm Pushfit

1шт.

20

47766113

UNION

M22 - M16 Internal Thread

1шт.

21

47766114

ELBOW

M16, 90 Degree

1шт.

22

47766116

ADAPTER

M16 - 12mm Pushfit

1шт.

23

47766118

ADAPTER

6mm - M12, 90 Degree Pushfit

2шт.

24

47766119

ADAPTER

6mm - M16, 90 Degree Pushfit

1шт.

25

47766120

ADAPTER

12mm - M16, 90 Degree Pushfit

3шт.

26

47766121

UNION

16mm

1шт.

27

47766122

UNION

M12 - 0.25

1шт.

28

47766128

BRAKE LINE

Brake

1шт.

29

47766617

THRUST WASHER

M22

1шт.

30

47766618

THRUST WASHER

M12

1шт.

31

47766619

THRUST WASHER

M16

1шт.

32

47766635

SEALING WASHER

M12 Aluminum/Copper

2шт.

33

47766636

SEALING WASHER

M16 Aluminum/Copper

1шт.

34

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

35

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

36

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

38

892-12022

LOCK WASHER,M22

2шт.

39

895-1108

WASHER

2шт.

40

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

41

NSS

NOT SOLD SEPARAT

MOUNTING BAR, 3/2 Valve, Incl in 1

1шт.

Выбрано товаров: 41
