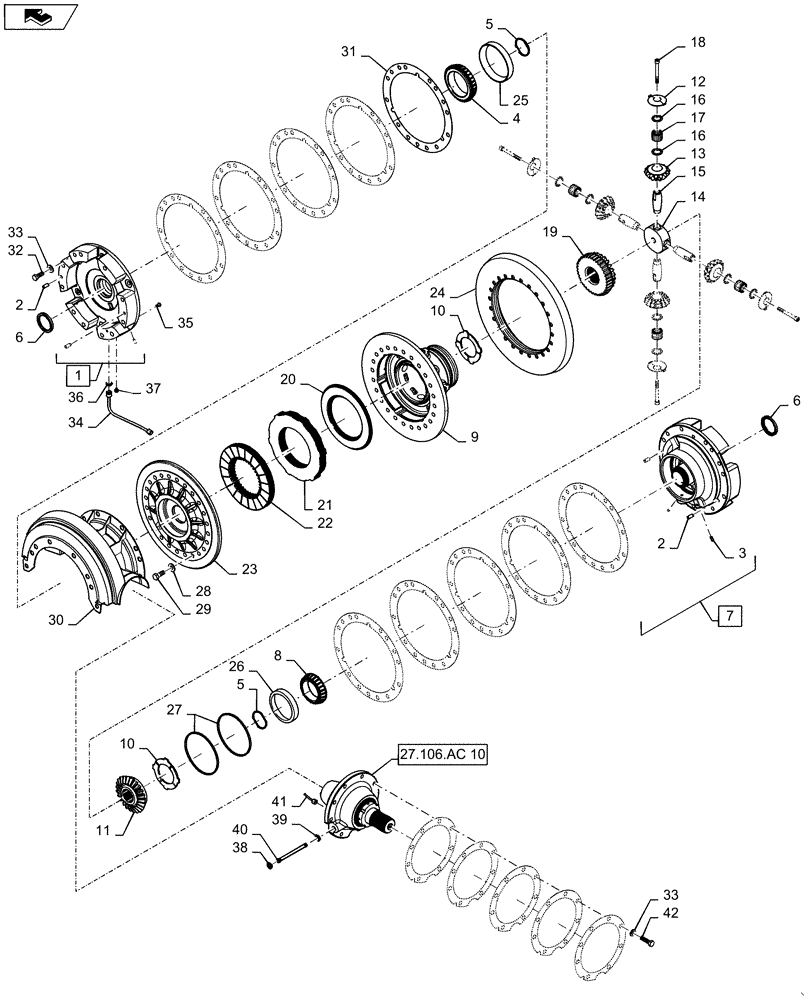

Запчасти Case IH MAGNUM 340 (27.106.AC[10]) - VAR - 429334, 429335, AND 429357 OR 429358 - CVT - TRANSMISSION DIFFERENTIAL HD - 340, 380 (27) - REAR AXLE SYSTEM

1

47390228

CARRIER

Bearing, LH Diff and Brake, Incl 2 - 3

1шт.

2

86978768

DOWEL,M12 x 30mm L

4шт.

3

87520608

EXPANSION PLUG,8mm

5шт.

4

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

5

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

Diff Bearing Seal

1шт.

6

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

1шт.

7

47511869

BEARING CARRIER

Bearing, RH Diff and Brake, Incl 2 - 3

1шт.

8

123869R1

ROLLER BEARING,95.263 mm ID x 36.535 mm

1шт.

9

47514280

CARRIER

HDFD Differential

1шт.

10

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

2шт.

11

47467984

GEAR

Differential Side, 24T

1шт.

12

87333856

THRUST WASHER,32.7mm ID x 80mm OD x 1.6mm Thk

4шт.

13

84567697

SHIM,236mm ID x 310mm OD x 0.08mm Thk

Pinion Setting

1шт.

13

47467982

PINION

Diff, 14T

4шт.

14

84569116

HUB

Diff Gear Pin

1шт.

13

84569646

SHIM,236mm ID x 310mm OD x 0.5mm Thk

Pinion Setting

1шт.

15

84466941

PIN,31.73mm OD x 104mm L

HD Diff Spider Gear

4шт.

13

84567700

SHIM,236mm ID x 310mm OD x 0.3mm Thk

Pinion Setting

1шт.

13

84567698

SHIM,236mm ID x 310mm OD x 0.1mm Thk

Pinion Setting

1шт.

16

87346098

THRUST BEARING,32.45mm ID x 44.8mm OD x 3.05mm Thk

Bearing Thrust

8шт.

13

84567699

SHIM,236mm ID x 310mm OD x 0.13mm Thk

Pinion Setting

1шт.

17

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

72шт.

18

2465667

HEX SOC SCREW,M12 x 110mm, Cl 12.9

4шт.

19

47467983

GEAR

Diff Side 24T, Locking

1шт.

20

1997422C1

PISTON

Brake and Diff Lock

1шт.

21

87745601

CLUTCH PLATE,193mm ID x 315.4mm OD x 2.74mm Thk

Diff Lock Separator

5шт.

22

84225275

PLATE

Diff Lock Friction

4шт.

23

47409423

COVER

HD Differential

1шт.

24

84466934

RING GEAR

Bevel, HD

1шт.

25

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

26

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

1шт.

27

148939C1

SEALING RING,OD 200.60 mm

Diff Lock

2шт.

28

47600651

WASHER,Flat, 17.00mm ID x 30.00mm OD x 2.00mm

24шт.

29

48137515

LOCK BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

24шт.

30

47383469

SHIELD

1шт.

31

84541584

SHIM,335mm ID x 422mm OD x 0.3mm Thk

1шт.

31

84541585

SHIM,335mm ID x 422mm OD x 0.76mm Thk

1шт.

31

84541583

SHIM,335mm ID x 422mm OD x 0.13mm Thk

1шт.

31

84541582

SHIM,335mm ID x 422mm OD x 0.1mm Thk

1шт.

31

84541581

SHIM,335mm ID x 422mm OD x 0.08mm Thk

1шт.

32

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

33

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

14шт.

34

84530570

TUBE

Diff Lock Pressure

1шт.

35

84405128

HEX SOC SCREW,M10 x 1.5 x 20mm, Cl 10.9

4шт.

36

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

37

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

1шт.

38

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

39

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

40

47361617

TUBE

Pinion Lube Jumper

1шт.

41

47406567

TUBE

Mesh Lube

1шт.

42

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.
