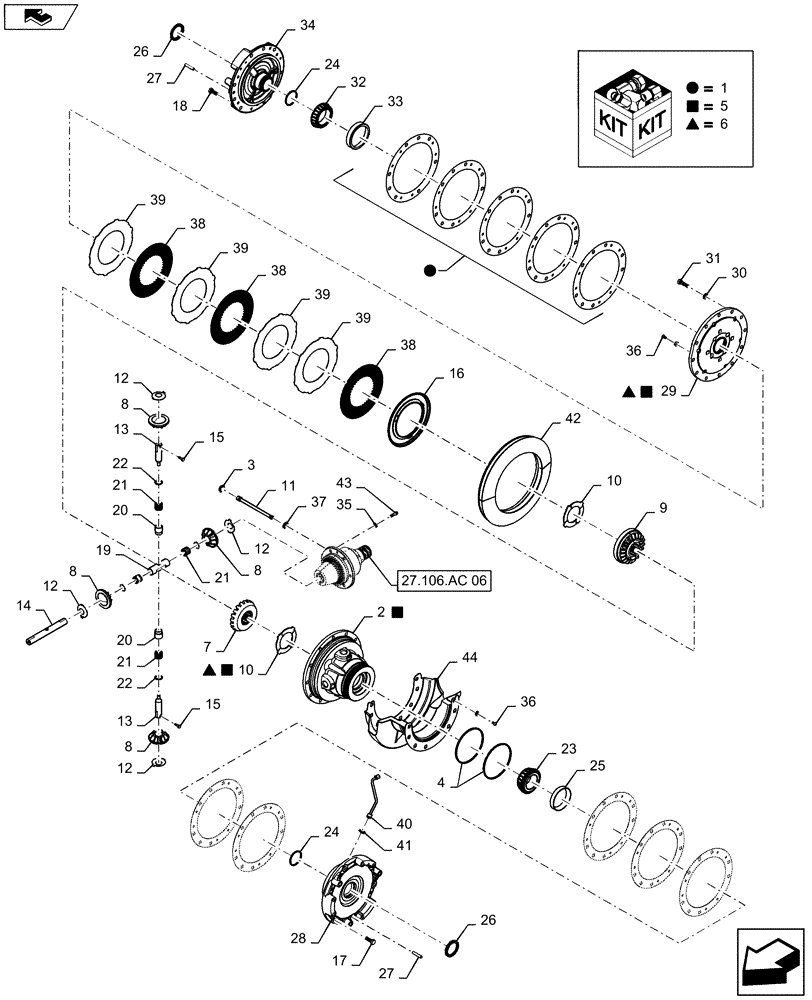

Запчасти Case IH MAGNUM 340 (27.106.AC[08]) - VAR - 429334, 429335, AND 420219 OR 429284 - CVT - TRANSMISSION DIFFERENTIAL ASSY - MAGNUM 310, 340 (27) - REAR AXLE SYSTEM

1

84374129

SHIM KIT

Differential

1шт.

2

84327397

CASE

HD Differential

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

4

148939C1

SEALING RING,OD 200.60 mm

Diff Lock

2шт.

5

87641688

KIT

HD Differential Case

1шт.

6

87641690

KIT

Differential Cover

1шт.

7

1259633C3

GEAR

Diff Bevel 20T

1шт.

8

92905C1

PINION

Gear Diff 10T

4шт.

9

1259634C3

PINION

Diff Lock Bevel 20T

1шт.

10

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

2шт.

11

47431289

TUBE

Pinion Lube Jumper

1шт.

12

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

Diff Pinion

4шт.

13

92906C1

SHORT SHAFT

Diff Pinion

2шт.

14

92907C1

SHAFT

Long, Diff Pinion

1шт.

15

1997421C1

BOLT

Diff Cross Pin

2шт.

16

1997422C1

PISTON

Brake and Diff Lock

1шт.

17

628-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

3шт.

18

613-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

3шт.

19

1289349C1

SPACER

Long, Pinion Needle

1шт.

20

1289350C1

SPACER

Short, Pinion Needle

2шт.

21

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

22

1289348C1

RING

Needle Bearing Thrust

4шт.

23

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

2шт.

24

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

Diff Bearing Seal

2шт.

25

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

2шт.

26

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

2шт.

27

136433A1

DOWEL,M12 x 65mm, HDN

10шт.

28

84142456

BEARING CARRIER

RH, Differential

1шт.

29

84327399

COVER

Differential

1шт.

30

47600651

WASHER,Flat, 17.00mm ID x 30.00mm OD x 2.00mm

12шт.

31

48137515

LOCK BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

12шт.

32

67250C1

ROLLER BEARING,89.99mm ID x 35mm W

1шт.

33

67251C1

BEARING CUP,144.98mm OD x 26.90mm Thk

1шт.

34

84142455

CARRIER

LH, Differential

1шт.

35

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

6шт.

36

84405128

HEX SOC SCREW,M10 x 1.5 x 20mm, Cl 10.9

4шт.

37

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

38

120679C1

PLATE

Diff Lock, Friction

3шт.

39

87745601

CLUTCH PLATE,193mm ID x 315.4mm OD x 2.74mm Thk

Diff Lock, Separator

4шт.

40

409738A1

TUBE

Diff Lock Pressure

1шт.

41

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

42

87341260

GEAR

Bevel Rear Drive, 54T, HD

1шт.

43

566-12035

12 PT SCREW,Flg, M12 x 35mm, Cl 12.9

6шт.

44

84379827

SHIELD

Bevel Ring Gear

1шт.
