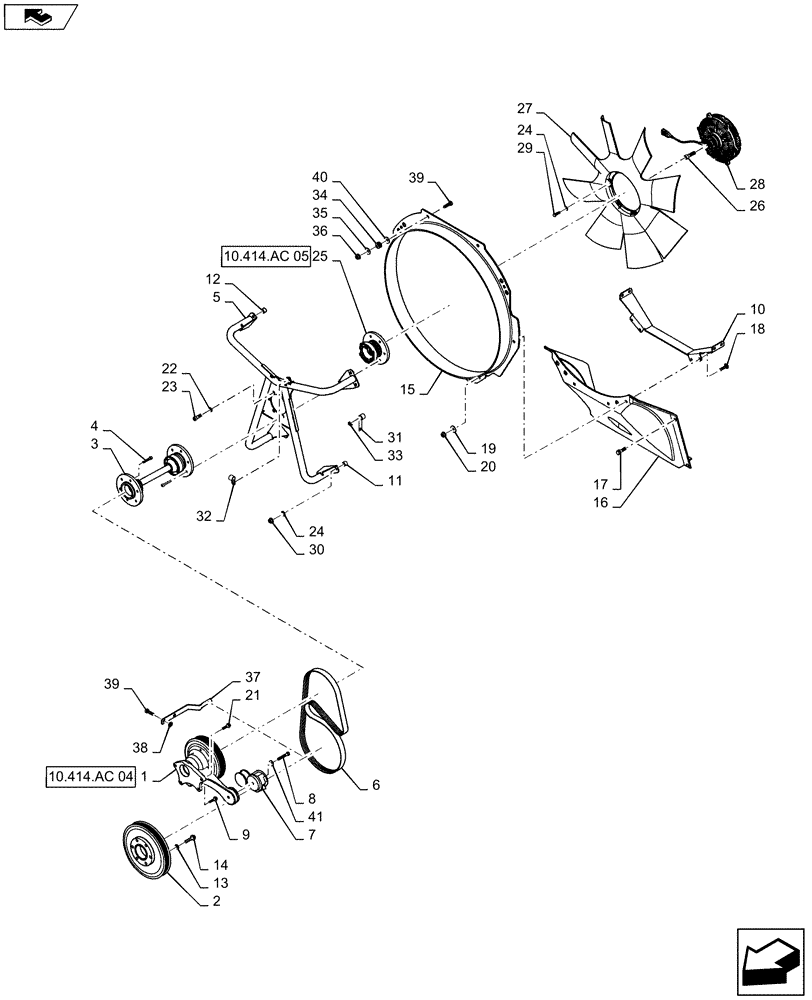

Запчасти Case IH MAGNUM 340 (10.414.AC[03]) - VISCOUS FAN DRIVE, ELECTRONIC WITHOUT FPTO (10) - ENGINE

1

84570275

SUPPORT

Assy, Viscous Fan Drive

1шт.

2

84195787

PULLEY,286mm OD

1шт.

3

84424389

SHAFT

Cooling Fan

1шт.

4

84388504

SCREW,M8 x 25mm, Cl 12.9

SOC HD, M8X25 12.9

12шт.

5

84289375

SUPPORT

Fan

1шт.

6

84257945

BELT

Fan Drive, 1936mm, 8 Rib

1шт.

7

87345929

BELT TENSIONER

1шт.

8

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

1шт.

9

84465305

BOLT,Hex, M10 x 25mm, Cl 10.9

Flange, M10x25 10.9

2шт.

10

84289380

SUPPORT

Shroud

1шт.

11

84238738

SPACER,10.34mm ID x 15.88mm OD x 12mm L

5/8 tube .472"

4шт.

12

87342153

SPACER,10.34mm ID x 15.88mm OD x 6.3mm L

5/8 tube .250"

4шт.

13

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

14

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

15

84289469

SHROUD

Fan

1шт.

16

84563486

TROUGH

Trough

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

13шт.

18

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

2шт.

19

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

4шт.

20

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

21

84465306

BOLT,Hex, M10 x 35mm, Cl 10.9

Flange, M10x35 10.9

2шт.

22

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

6шт.

23

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

6шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

14шт.

25

NSS

NOT SOLD SEPARAT

Viscous Fan Drive

1шт.

26

863-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

1шт.

27

84278713

FAN

Cooling Module

1шт.

28

84397784

DRIVE

Electronic, Viscous Fan Clutch

1шт.

29

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

30

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

31

133738A1

CLIP

Open J

1шт.

32

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

33

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 15mm dia, Black Nylon

1шт.

34

84244058

RUBBER MOUNTING

ISO

2шт.

35

495-81148

WASHER,7/16" x 1 1/4" x .134"

2шт.

36

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

37

84482909

BRACKET

Belt Guide, Years: -14-SEP-13

1шт.

38

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

, Years: -14-SEP-13

2шт.

39

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

, Years: -14-SEP-13

2шт.

40

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

41

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.
