Запчасти Case IH MAGNUM 340 (55.408.CA) - A-POST COVER, INSTRUMENT CLUSTER (55) - ELECTRICAL SYSTEMS

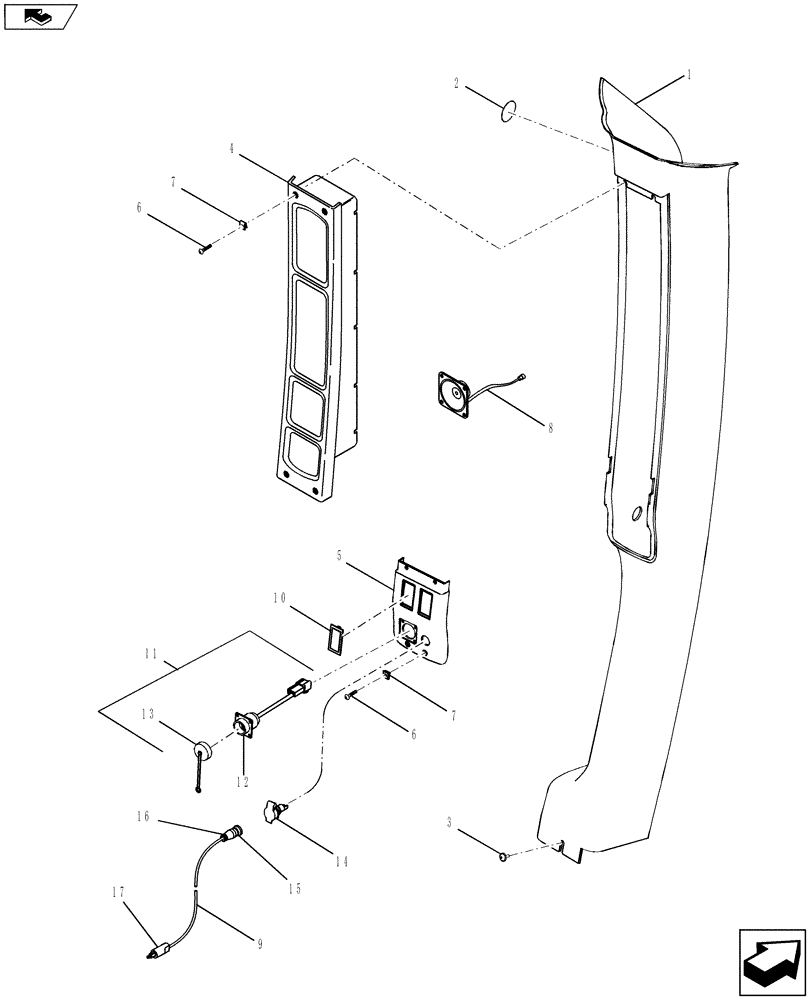

Схема запчастей Case IH MAGNUM 340 - (55.408.CA) - A-POST COVER, INSTRUMENT CLUSTER (55) - ELECTRICAL SYSTEMS
14
10
8
15
16
7
home
6
2
4
1
13
7
3
6
5
17
12
11
9

Артикул

Название

Примечание

Количество

1

444547A1

TRIM PANEL

1шт.

2

376597A2

DECAL

2шт.

3

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

1шт.

4

87731236

MODULE

Without Software

1шт.

84384985R

REMAN-INSTR CLUSTER

MAGNUM 235, MAGNUM 260, MAGNUM 290, MAGNUM 315, MAGNUM 340, MAGNUM 370 All TIER 4A CVT, MAGNUM 235, MAGNUM 260, MAGNUM 290, MAGNUM 315, MAGNUM 340 All TIER 4A; Reman for the New P/N 87731236

1шт.

84384985C

CORE-CLUSTER, INSTR

Return Number

1шт.

5

358804A1

BEZEL

1шт.

6

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

6шт.

7

177269A1

SPRING NUT,M4.2

6шт.

8

87335023

SPEAKER

1шт.

9

324847A2

HARNESS

Monitor

1шт.

10

245918C1

LENS

Blanking

2шт.

11

227739A2

POWER SOCKET

Auxiliary Power, Inc. 12 - 14

1шт.

12

225164C1

ELEC CONNECTOR

Outlet, Socket, 3 Pole

1шт.

13

225162C1

PLUG

Dust

1шт.

14

300655A1

POWER SOCKET

Outlet, Single Pole

1шт.

15

247723A1

ELEC CONNECTOR,Male, 4 Pin

Implement Monitor

1шт.

16

247725A1

ELEC CONNECTOR

1шт.

17

300656A1

POWER SOCKET,1 Pole

Radar

1шт.

Выбрано товаров: 19
