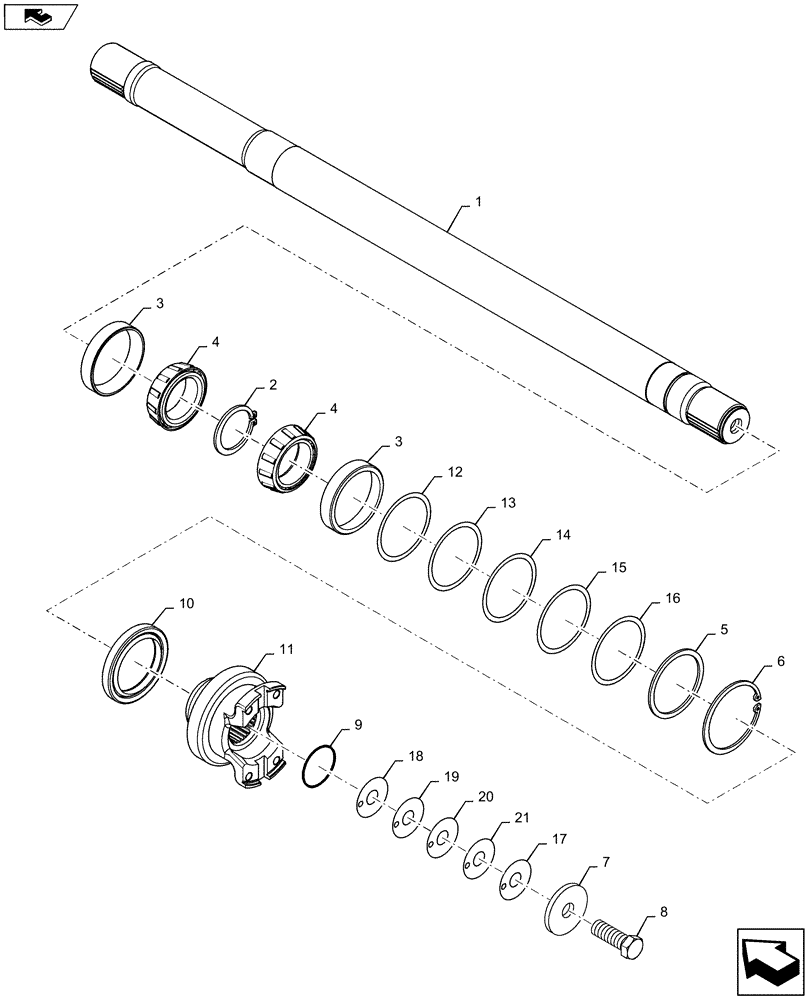

Запчасти Case IH MAGNUM 340 (23.101.AF[04]) - MFD OUTPUT, CL 4.75 - CVT (23) - FOUR WHEEL DRIVE SYSTEM

1

84577354

SHAFT

MFD Output, CL 4.75, CVT

1шт.

2

100-16200

SNAP RING,#200, Ext

1шт.

3

87373443

BEARING CUP,82.93mm OD x 16.51mm W

Tapered Roller

2шт.

4

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

2шт.

5

87643168

SPACER,71.5mm ID x 82.5mm OD x 3.12mm L

Bearing

1шт.

6

100-21325

SNAP RING,3.25", Int, #325

1шт.

7

87643167

WASHER,17.5mm ID x 60mm OD x 6mm Thk

Yoke Retaining

1шт.

8

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

1шт.

9

510120

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

10

225820A1

OIL SEAL,66.55mm ID x 92.18mm OD x 11.68mm Thk

1шт.

11

87668524

YOKE

MFD Output, 5C, CVT

1шт.

12

47491956

SHIM,71.5mm ID x 82.5mm OD x 0.08mm Thk

0.076 mm Thk, MFD Bearing

1шт.

13

47491963

SHIM,71.5mm ID x 82.5mm OD x 0.13mm Thk

0.127 mm Thk, MFD Bearing

1шт.

14

47491964

SHIM,71.5mm ID x 82.5mm OD x 0.1mm Thk

0.102 mm Thk. MFD Bearing

1шт.

15

47491965

SHIM,71.5mm ID x 82.5mm OD x 0.31mm Thk

0.305 mm Thk, MFD Bearing

1шт.

16

47491967

SHIM

0.762 mm Thk, MFD Bearing

1шт.

17

84597715

SHIM,17mm ID x 48mm OD x 0.5mm Thk

0.508 mm Thk, Bearing Setting

1шт.

18

84597517

SHIM,17mm ID x 48mm OD x 0.08mm Thk

0.076 mm Thk, Bearing Setting

1шт.

19

84597518

SHIM,17mm ID x 48mm OD x 0.13mm Thk

0.127 mm Thk, Bearing Setting

1шт.

20

84597519

SHIM,17mm ID x 48mm OD x 0.18mm Thk

0.178 mm Thk, Bearing Setting

1шт.

21

84597520

SHIM,17mm ID x 48mm OD x 0.25mm Thk

0.254 mm Thk, Bearing Setting

1шт.
