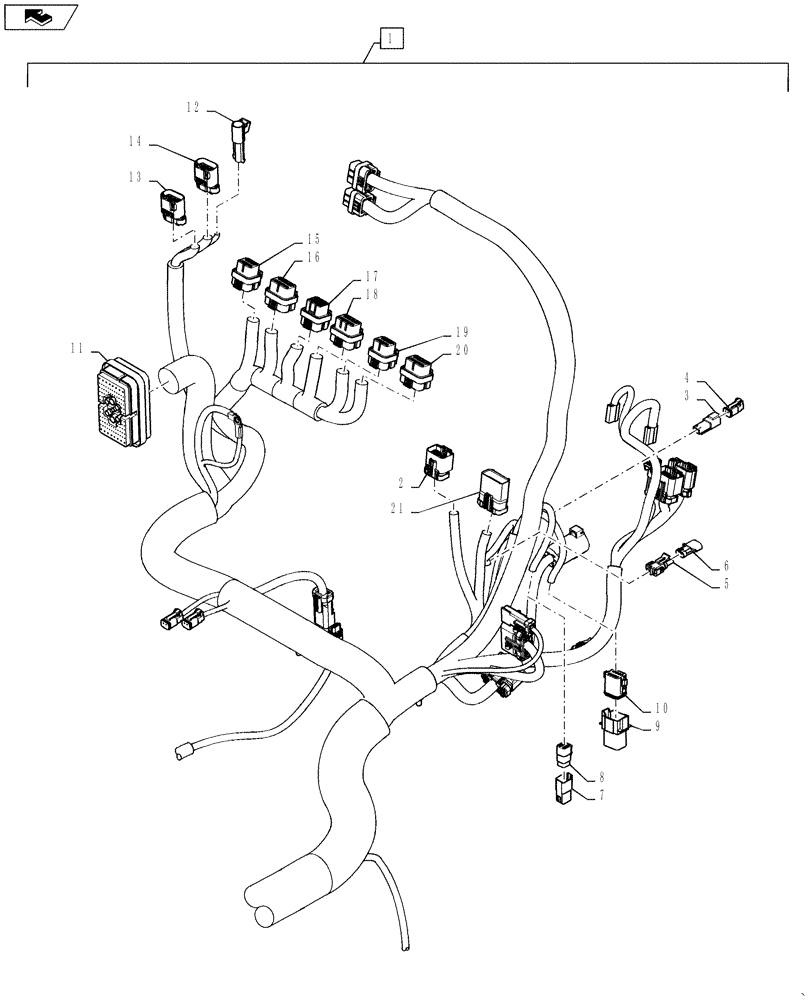

Запчасти Case IH MAGNUM 340 (55.100.AC[04]) - POWERSHIFT - HARNESS, CHASSIS - ASN ZBRD09845 (55) - ELECTRICAL SYSTEMS

1

84515083

HARNESS

Chassis, Incl 2 - 21, Continued on Figures 55.100.AC 02 and 55.100.AC 03

1шт.

2

87382924

ELEC CONNECTOR,Female, 10 Cavities

10 Pin, 217F, To Relays

1шт.

3

225315C1

ELEC CONNECTOR,Male, 2 Pin

338F, To Backup Alarm

1шт.

4

225316C1

ELEC CONNECTOR,Female, 2 Pin

338M, Plug

1шт.

5

245482C1

ELEC CONNECTOR,2 Pin

221M, To Implement Up and Down Switch

1шт.

6

245483C1

ELEC CONNECTOR,Male, 2 Pin

221F, Plug

1шт.

7

225408C1

CONNECTOR, ELEC

Female, 8 Pin, 531F, Plug

1шт.

8

225411C1

CONNECTOR, ELEC

8 Pin, 531M, To Scrapper Implement Pot

1шт.

9

280453A1

ELEC CONNECTOR,Male, 6 Pin

150F, Plug

1шт.

10

280451A1

CONNECTOR,ELECTRIC

6 Pin, 150M, To Implement Pot

1шт.

11

437552A1

ELEC CONNECTOR,Female, 102 Pin

102 Pin, 10M, To Cab Harness

1шт.

12

182064A1

CONNECTOR, ELEC

1 Pin, 41F, To Right Hand Fender Ground

1шт.

13

87382916

ELEC CONNECTOR

4 Pin, 21F, To Right Hand Remotes

1шт.

14

87382924

ELEC CONNECTOR,Female, 10 Cavities

10 pin, 20F, To Right Hand Fender Lights

1шт.

14

87382924

ELEC CONNECTOR,Female, 10 Cavities

10 pin, 217F, To Relays

1шт.

15

87410948

CONTACT HOUSING,Female, 26 Pole

350M, To TCU

1шт.

16

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

34 Pin, 351M, To TCU

1шт.

17

87419488

MULTIPOLE CONNECTOR,Female, 26 Pole

353M, To TCU

1шт.

18

87410947

MULTIPOLE CONNECTOR,Female, 34 Pole

58M, To TCU

1шт.

19

84130757

ELEC CONNECTOR,Female, 26 Cavities

26 Pin, 490M, To TCU

1шт.

20

84130760

ELEC CONNECTOR,Female, 34 Cavities

34 Pin, 355M, To TCU

1шт.

21

87382929

WIRE CONNECTOR,Male, 14 Cavities

14 Pin, 216F, To Fuses and Relays

1шт.
