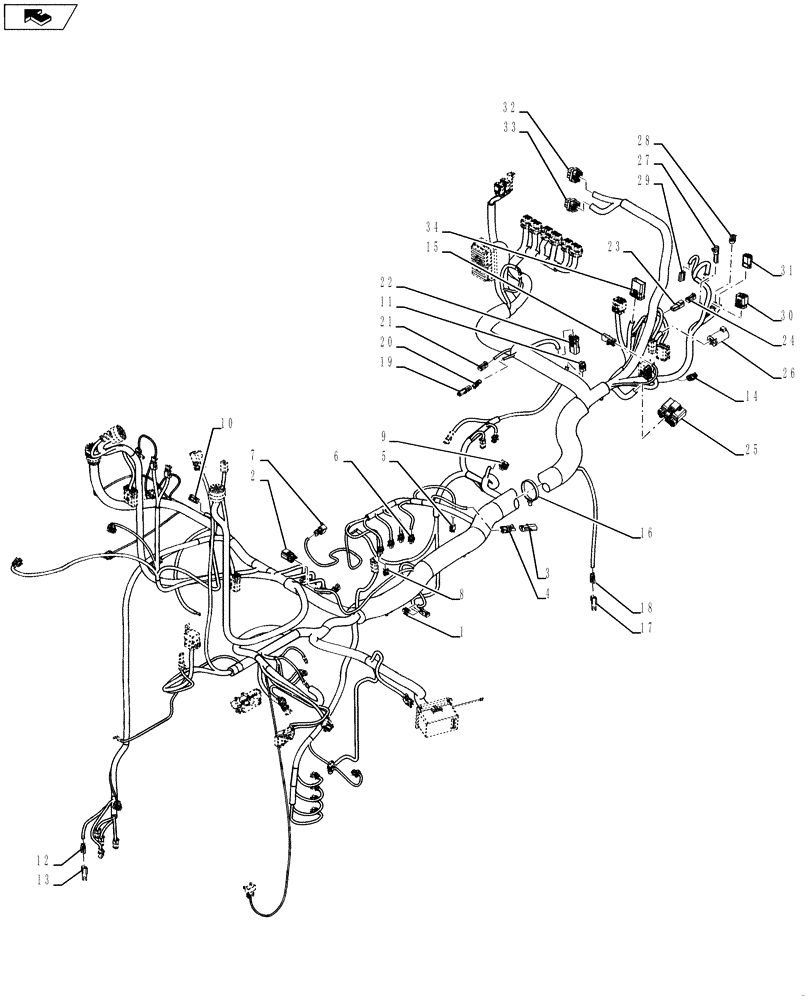

Запчасти Case IH MAGNUM 340 (55.100.AC[03]) - POWERSHIFT - HARNESS, CHASSIS - ASN ZBRD09845 (55) - ELECTRICAL SYSTEMS

84420942

HARNESS

Chassis, Inc. 1 - 34, Continued on Figures 55.100.02 01 and 55.100.02 03

1шт.

1

199707A1

CONNECTOR, ELEC

2 Pin, 35M, To Master Solenoid

1шт.

2

87382910

WIRE CONNECTOR,Female, 3 Cavities

3 Pin, 439F, To Steering Angle Sen Harness

1шт.

3

245483C1

ELEC CONNECTOR,Male, 2 Pin

Plug

1шт.

4

245482C1

ELEC CONNECTOR,2 Pin

2 Pin, 70F, To Pneumatic Refill Solenoid

1шт.

5

87613646

WIRE CONNECTOR,Female

2 Pin, 69M, To Wheel Speed

1шт.

6

371614A1

ELEC CONNECTOR,Female, 2 Pin

2 Pin, 36M, 37M, 38M, To Low Sol, To Mid Sol, To Hi Sol

4шт.

7

291718A1

ELEC CONNECTOR,Female, 2 Pin

2 Pin, 436M, To System Pressure

1шт.

8

87693712

ELEC CONNECTOR,Female, 3 Cavities

3 Pin, 1199F, To Torque Sensor

1шт.

9

245715C1

ELEC CONNECTOR,4 Pin

4 Pin, 68M, To Radar

1шт.

10

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Pin, 89M, To Transmission Temperature

1шт.

11

198550A1

CONNECTOR, ELEC

3 pin, 155M, To Rockshaft Pot

1шт.

12

225295C1

ELEC CONNECTOR,Female, 3 Pin

3 Pin, 153M, To Right Hand Draft

1шт.

13

225294C1

ELEC CONNECTOR,Male, 3 Pin

Plug

1шт.

14

82012083

WIRE CONNECTOR,Female

2 Pin, 158M, 159M, To Rear Diff Sol, To Rear PTO Sol

2шт.

15

87382907

WIRE CONNECTOR,Male

2 Pin, 1121F, To Hitch Headlight

1шт.

16

87668737

CABLE TIE,203.2mm L, Nylon, Black

3шт.

17

225294C1

ELEC CONNECTOR,Male, 3 Pin

Plug

1шт.

18

225295C1

ELEC CONNECTOR,Female, 3 Pin

3 Pin, 154M, To Left Hand Draft

1шт.

19

87693745

ELEC CONNECTOR,Male, Blade

Plug

1шт.

20

245480C1

ELEC CONNECTOR,1 Pin

2 Pin, 149M, To Trailer Brake

1шт.

21

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Pin, 67M, To Pneumatic Air SW

1шт.

22

87382919

WIRE CONNECTOR,Male, 6 Cavities

6 Pin, 448M, To EDC Link

1шт.

23

225315C1

ELEC CONNECTOR,Male, 2 Pin

Plug

1шт.

24

87695582

ELEC CONNECTOR,Female, 2 Pole

2 Pin, 175M, To Tractor Can Bus

1шт.

25

87382926

WIRE CONNECTOR,Female, 14 Cavities

294M

1шт.

26

182085A1

WIRE CONNECTOR

7 pin, 147M, To Trailer Connector

1шт.

27

182064A1

CONNECTOR, ELEC

1 Pin, 40F, To Left Hand Fender Ground

1шт.

28

198456A1

ELEC CONNECTOR,Female

3 Pin, 440M, To Hitch Load pressure Sen

1шт.

29

877291R1

ELEC CONNECTOR,Female

2 Pin, 212M, To Front Washer

2шт.

30

87382922

WIRE CONNECTOR,Female, 10 Cavities

10 Pin, 1020F, To Left Hand Fender Lights

1шт.

31

87382914

ELEC CONNECTOR,Female, 4 Cavities

4 Pin, 1021F, To Left Hand Remotes

1шт.

32

87410947

MULTIPOLE CONNECTOR,Female, 34 Pole

34 Pin, 53M, To TCU

1шт.

33

87419488

MULTIPOLE CONNECTOR,Female, 26 Pole

26 Pin, 442M, To TCU

1шт.

34

87382927

ELEC CONNECTOR,Male, 14 Cavities

14 Pin, 434F, To Auxillary Harness

1шт.

31

360362A1

CAPTIVE WASHER SCREW

No. 10 x 1

2шт.

32

87016569

SPRING NUT,U, #10-16, Panel type

8шт.

33

358682A1

GUARD

1шт.

34

451984A1

PUSH-ON NUT

3шт.

35

280628A1

PLUG

Cover for Mirrors Switch

1шт.

Without Power Mirrors

1шт.

36

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

12шт.

37

322072A2

FASTENER

2шт.

38

322073A1

NUT

2шт.

39

336383A1

PAD

Upper Left Fender

1шт.

40

336385A1

PAD

Trainer Seat

1шт.

41

360365A1

DIFFUSER

1шт.

42

151-537

RIVET,Pop, 1/8" x .650"

4шт.

43

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.

44

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

1шт.

45

87710665

BEZEL

1шт.

46

87494846

BRACKET

1шт.

47

86984858

FOAM

Rear Wall trim

1шт.

48

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

49

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

7шт.

50

355101A2

BOX

1шт.

With CD Player

1шт.

51

355102A2

DOOR

1шт.

With CD Player

1шт.

52

364279A1

PLATE

2шт.

With CD Player

1шт.

53

364281A1

CATCH

2шт.

With CD Player

1шт.

54

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

With CD Player

1шт.

55

87449386

KIT

Cigar Lighter/Ashtray, (Includes Lighter 87450397) Inc. 17, 56

1шт.

56

301901A1

INSERT

1шт.

57

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

7шт.
