Запчасти Case IH MAGNUM 340 (55.100.AC[02]) - POWERSHIFT - HARNESS, CHASSIS - ASN ZBRD09845 (55) - ELECTRICAL SYSTEMS

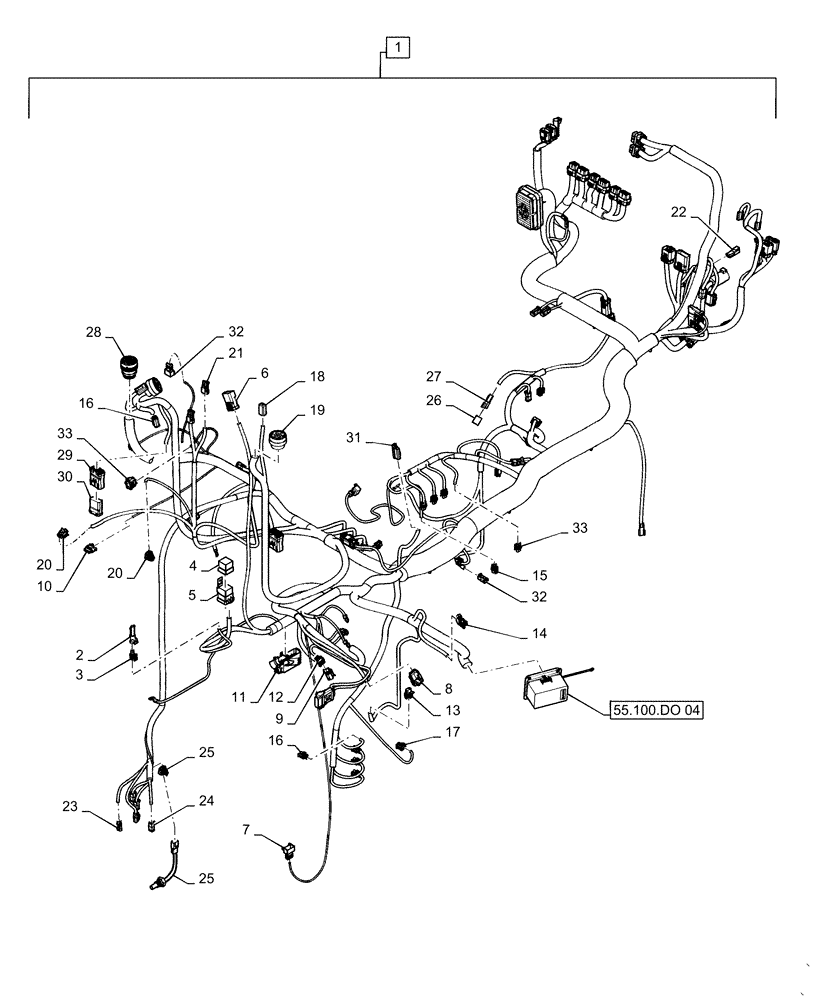

Схема запчастей Case IH MAGNUM 340 - (55.100.AC[02]) - POWERSHIFT - HARNESS, CHASSIS - ASN ZBRD09845 (55) - ELECTRICAL SYSTEMS
55.100.do 04
28
2
16
18
30
4
32
6
19
10
7
13
24
21
25
9
31
29
12
8
33
33
32
20
15
26
16
23
14
1
3
5
25
22
11
20
27
17

Артикул

Название

Примечание

Количество

1

84515083

HARNESS

Chassis, Incl 2 - 33 Continued on Figures 55.100.AC 03 and 55.100.AC 04

1шт.

2

182064A1

CONNECTOR, ELEC

121F

1шт.

3

182066A1

CONNECTOR, ELEC

121M

1шт.

4

84179509

RELAY

Plug

1шт.

5

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

82F, To Start Relay

1шт.

6

87382923

ELEC CONNECTOR,Male, 10 Cavities

10 Pin, 109F, To Headlight Harness

1шт.

7

8602416

CONNECTOR,ELECTRIC

3 Pin, 307M, To WIF

1шт.

8

84526498

WIRE CONNECTOR

4 Pin, 1210M, To 12-24V Connector

1шт.

9

87688710

MULTIPOLE CONNECTOR,Female, 2 Pole

1750M, To Battery Cable

1шт.

10

84190317

WIRE CONNECTOR,Female, 5 Cavities

5 Pin, 1002M, To Nox Sensor

1шт.

11

87713291

WIRE CONNECTOR

31 Pin, 1000M, To Supply Module

1шт.

12

84062580

CONNECTOR, ELEC

3 Pin, 1009M, To Reduction Agent Tank Sensor

1шт.

13

182069A1

CONNECTOR, ELEC

2 Pin, 785M, To Fuel Pump

1шт.

14

245484C1

ELEC CONNECTOR,3 Pin

66M, To Fuel Sender

1шт.

15

371614A1

ELEC CONNECTOR,Female, 2 Pin

29M, To Odd Sol

1шт.

15

371614A1

ELEC CONNECTOR,Female, 2 Pin

30M, To Even Sol

1шт.

15

371614A1

ELEC CONNECTOR,Female, 2 Pin

31M, To 1/2 Sol

1шт.

15

371614A1

ELEC CONNECTOR,Female, 2 Pin

32M, To 3/4 Sol

1шт.

15

371614A1

ELEC CONNECTOR,Female, 2 Pin

33M, To 5/6 Sol

1шт.

15

371614A1

ELEC CONNECTOR,Female, 2 Pin

34M, To Rev Sol

1шт.

15

371614A1

ELEC CONNECTOR,Female, 2 Pin

39M, To Creep Sol

1шт.

16

87694153

CONTACT HOUSING,Female, 4 Cavities

3088M, To Brake Harness

1шт.

17

87657131

MULTIPOLE CONNECTOR,Female, 3 Pole

44M, To System Range Pressure

1шт.

18

87448363

WIRE CONNECTOR,Female

4 Pin, 304F, To Engine Harness

1шт.

19

87700172

ELEC CONNECTOR

31 Pin, 333M, To Engine Harness

1шт.

20

87709793

WIRE CONNECTOR,Female, 2 Cavities

1001M, To Temperature Sensor (Upstream)

1шт.

20

87709793

WIRE CONNECTOR,Female, 2 Cavities

1004M, To Temperature Sensor (Downstream)

1шт.

21

335461A1

CONNECTOR, ELEC

2 Pin, 47M, 48M, To Left and Right Brake Solenoids

2шт.

22

225315C1

ELEC CONNECTOR,Male, 2 Pin

74M, To Autoguidance Lockout Solenoid

1шт.

23

225295C1

ELEC CONNECTOR,Female, 3 Pin

489M, To Suspended Rod Sensor

2шт.

23

225295C1

ELEC CONNECTOR,Female, 3 Pin

491M, To Piston Sensor

1шт.

24

225316C1

ELEC CONNECTOR,Female, 2 Pin

49M, To Park Brake Sol

1шт.

24

225316C1

ELEC CONNECTOR,Female, 2 Pin

486M, To Sus Rod Valve

1шт.

24

225316C1

ELEC CONNECTOR,Female, 2 Pin

487M, To Sus Piston Valve

1шт.

24

225316C1

ELEC CONNECTOR,Female, 2 Pin

488M, To Sus Pump

1шт.

25

87521424

TEMPERATURE SENDER

Transmission Oil

1шт.

26

381414A1

TERMINAL CONNECTOR

Plug

1шт.

27

225294C1

ELEC CONNECTOR,Male, 3 Pin

2451M, To SCR Can Terminator

1шт.

28

84526555

MULTIPOLE CONNECTOR

60F, To Cab Harness

1шт.

29

87382929

WIRE CONNECTOR,Male, 14 Cavities

14 Pin, 2382M, To Front Hitch

1шт.

30

87382928

WIRE CONNECTOR,Female, 14 Cavities

2382F, Plug

1шт.

31

872290R1

ELEC CONNECTOR,Male

2 Pin, 90F, To Pressure Blower

1шт.

32

84607243

ELEC CONNECTOR,Female, 2 Cavities

2 Pin, 76F, To Air Restriction Switch

1шт.

33

87709809

ELEC CONNECTOR

4 Pin, 1008M, To Humidity Sensor

1шт.
